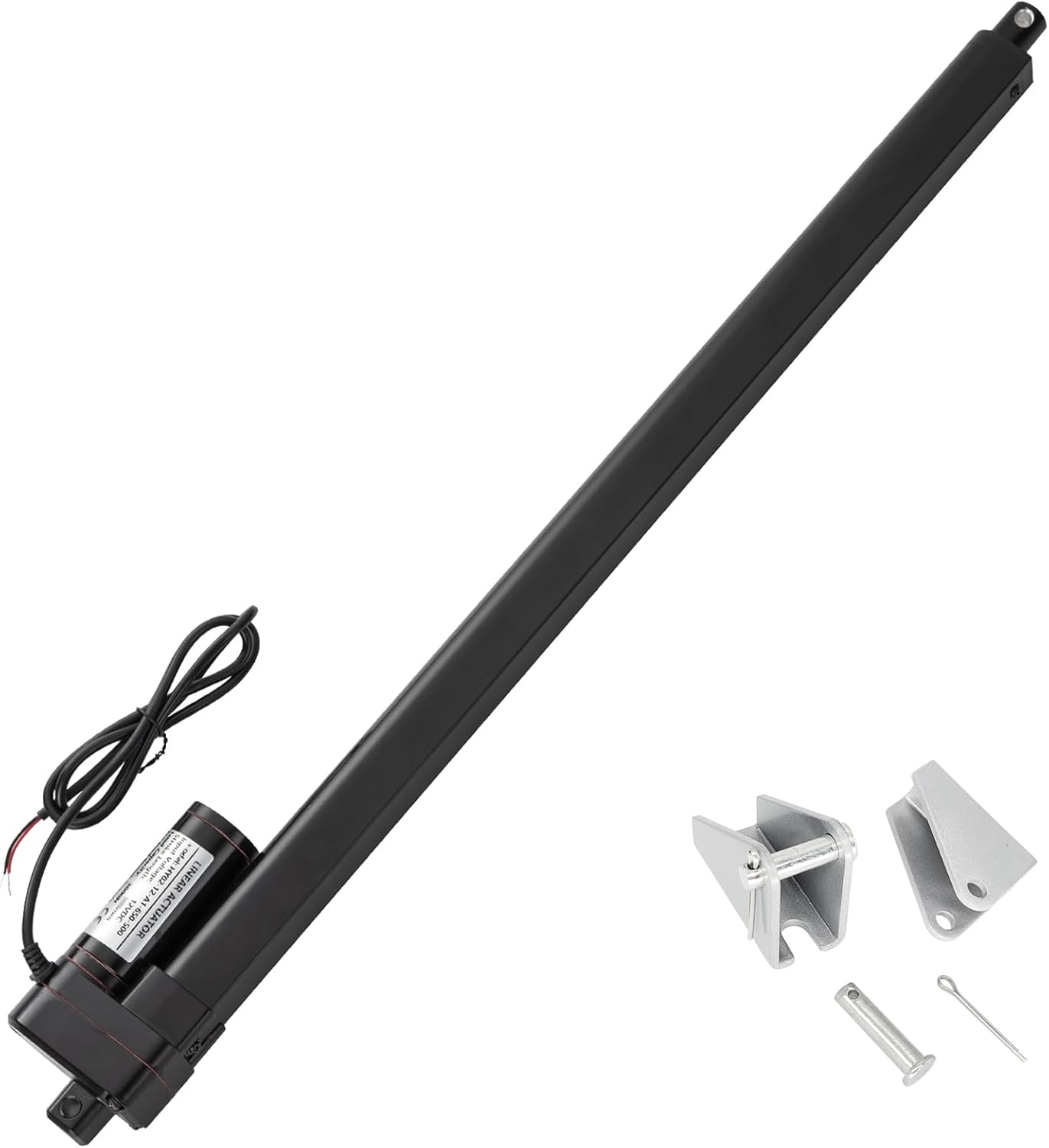

38 in Stroke 660lbs Heavy Duty 12V Linear Actuator Kit - IP65 Rated

In this review the 38 in stroke 12V linear actuator kit is assessed for workshop and industrial use where strong, weatherproof motion is required. The single biggest reason to consider this actuator is its combination of a long 38 in stroke and a high listed push/pull capacity, making it suitable for projects like solar trackers, utility dump beds and heavy adjustable furniture where long travel and robust construction matter. The review focuses on build quality, real-world load expectations and how the kit performs in varied environments.

Key Features

• Long stroke: The 38 in (950mm) stroke gives nearly 3 ft of travel, useful for applications that need extended movement without complex linkage work.
• Strong drive: The actuator is rated to 660 lbs (3000 N) maximum load, which provides significant lifting force for many heavy-duty tasks when mounted correctly.
• Weather resistance: With an IP65 protection class the unit is sealed against dust and low-pressure water jets, allowing outdoor use such as solar trackers or external lifting gear.
• Built-in safety features: The high performance motor includes a built-in limit switch and self-locking function so the actuator stops automatically at travel limits and holds position under load.
• Quiet operation: Noise runs below 50 dB in normal conditions, so it is acceptable for indoor uses like adjustable furniture where low sound levels matter.
• Complete kit: The package includes the actuator and two mounting brackets, reducing the need to source additional basic hardware for installation.

Who It's For

This actuator is aimed at DIYers, fabricators and small industrial users who need long travel and a robust, weatherproof linear motion device for hoisting, tilting or extending mechanisms. It works well for solar trackers, utility trailer beds, adjustable benches and similar projects where IP65 protection and self-locking are useful.

Those who need very high-speed motion, precise positional feedback, or guaranteed operation at the full listed 660 lb load in every setup should look elsewhere or verify system compatibility. Buyers requiring certified load testing or integrated controllers may prefer a higher-spec industrial actuator with documented performance curves.

Pros & Cons

Pros

• Robust aluminum construction and IP65 protection make it suitable for outdoor and workshop environments.
• Long 38 in stroke and self-locking limit switch allow substantial travel and safe holding under load.
• Relatively quiet operation and included mounting brackets make installation straightforward for many projects.

Cons

• Several users report variability in real-world lift capacity and speed compared with the rated 660 lbs and 5mm/s, so expect practical limits depending on installation and leverage.

Specifications

Voltage	12V DC
Stroke Length	38 in (950mm)
Retracted / Extended Length	44 in (1100mm) / 82 in (2050mm)
No-load Speed	0.2 in/sec (5mm/s)
Maximum Load	660 lbs (3000 N)
Maximum Current Draw	5 A
Protection Class / Noise	IP65 / <50 dB

Our Verdict

The 38 in 12V linear actuator kit is a practical choice for users who need long travel and a weatherproof, self-locking actuator at a modest cost. It delivers strong construction, useful protection against the elements and quiet operation, making it good value for solar trackers, tilt beds and adjustable furniture. Verify mounting geometry and real-world load requirements before relying on the full 660 lb rating for critical lifts.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes, the IP65 rating protects against dust and low-pressure water jets, so it is suitable for outdoor installations like solar trackers with normal weather exposure.

Does it include mounting hardware?
The kit includes 1 actuator and 2 mounting brackets, which cover basic installation needs; additional fasteners or custom mounts may be required for specific applications.

Will it reach the full 660 lb lift in all setups?
Real-world lift depends on installation geometry, leverage and duty cycle; some customers report lower effective lift, so test the actuator in your exact setup before relying on maximum capacity.
