4 CFM Vacuum Pump 1/3 HP Single Stage Rotary Vane - Fast Evacuation

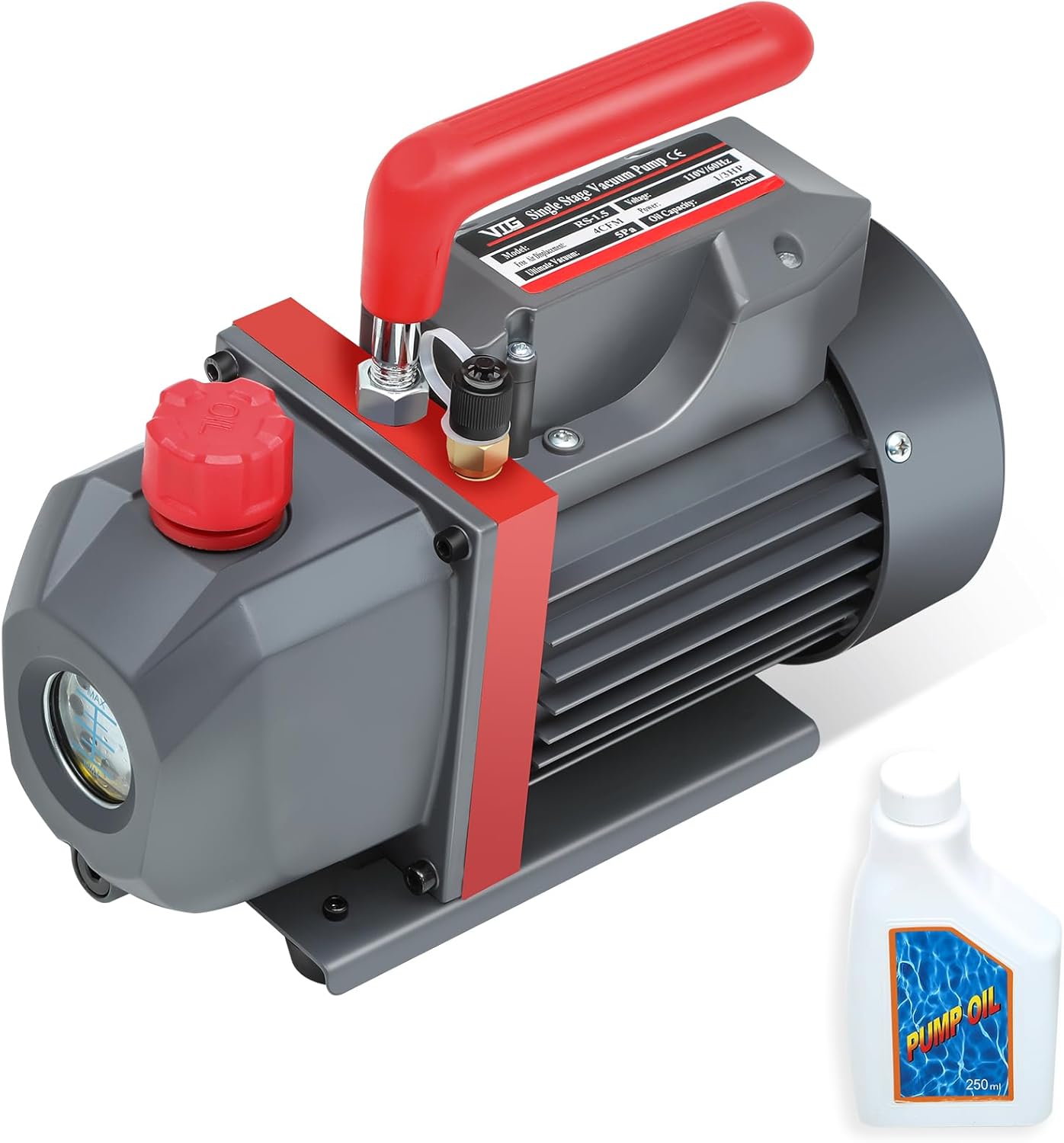

In this review the VTG VOGTEN 4 CFM vacuum pump is evaluated as a compact, multipurpose evacuation tool for HVAC technicians and hobbyists. The bottom line: it is for anyone who needs reliable, relatively fast evacuation to deep vacuum levels without heavy-duty industrial cost. The pump delivers a 4 CFM flow and a rated ultimate vacuum down to 5 Pa (37.5 microns), which is the single biggest reason to buy it - it gets systems ready quickly while offering helpful user features like a clear oil sight window and a drain valve to simplify maintenance.

Key Features

• High-efficiency evacuation: The 4 CFM flow rate and single-stage rotary vane design reduce pump-down time for small to medium refrigeration and AC jobs.
• Deep vacuum capability: Rated to evacuate to 5 Pa (37.5 microns), it reliably reaches levels required for system dehydration and leak testing preparation.
• Fast cooling and protection: Mesh venting, T-shaped heat fins and a built-in fan help dissipate heat while built-in overheat protection preserves motor life during extended use.
• User-friendly maintenance: A clear oil sight window with measurement markings and a bottom oil drain valve make oil monitoring and changes straightforward and less messy.
• Wide refrigerant compatibility: The 1/4 in SAE inlet and compatibility with R12, R22, R134a, R410a and R502 make it suitable for most residential and many commercial HVAC service tasks.
• Included oil: The kit ships with a bottle of vacuum pump oil so the pump can be put into service immediately.

Who It's For

The pump is best for HVAC technicians, automotive A/C servicers, and hobbyists who need a portable, effective evacuation tool for charging and servicing systems, resin and wine degassing, wood stabilization and vacuum packaging. Its 4 CFM capacity and deep vacuum rating match typical tasks on residential systems and lighter commercial work.

Those who regularly tackle large commercial systems that require multi-stage deep vacuuming or continuous industrial duty should look elsewhere for higher-capacity or two-stage pumps designed for heavy continuous workloads. This unit is optimized for portability and mid-range performance rather than maximum production throughput.

Pros & Cons

Pros

• Solid evacuation performance to 5 Pa (37.5 microns) with a useful 4 CFM flow rate for most service jobs.
• Thoughtful service features like an oil sight window, measurement markings and bottom drain valve for clean oil changes.
• Effective cooling design with vents, heat fins and a high-power fan plus overheat protection for longer motor life.
• Includes vacuum pump oil and a standard 1/4 in SAE inlet for broad refrigerant compatibility.

Cons

• Single-stage design limits ultimate performance compared with two-stage pumps for very demanding commercial pull-downs.
• Not intended as a continuous industrial duty machine for heavy production environments.

Specifications

Model Type	1/3 HP single-stage rotary vane
Flow Rate	4 CFM
Ultimate Vacuum	5 Pa (37.5 microns)
Inlet Port	1/4 in SAE
Refrigerant Compatibility	R12, R22, R134a, R410a, R502
Cooling Features	Mesh vent, T-shaped heat fins, built-in fan, overheat protection
Included	Bottle of vacuum pump oil

Our Verdict

The VTG VOGTEN 4 CFM vacuum pump is a smart choice for technicians and hobbyists who need reliable, portable evacuation to deep vacuum levels without overspending. It balances solid pull-down performance, user-friendly oil maintenance features and protective cooling in a compact package, making it good value for residential HVAC, automotive A/C and multipurpose workshop use.

Frequently Asked Questions

Can this pump handle common refrigerants?
Yes, it is compatible with R12, R22, R134a, R410a and R502 via the 1/4 in SAE inlet for typical service work.

Does it include oil so it can be used right away?
Yes, the kit includes a bottle of vacuum pump oil so the pump can be filled and placed into service immediately.

Is this suitable for large commercial systems?
It suits residential and lighter commercial tasks; those servicing large commercial systems frequently should consider higher-capacity or two-stage units.
