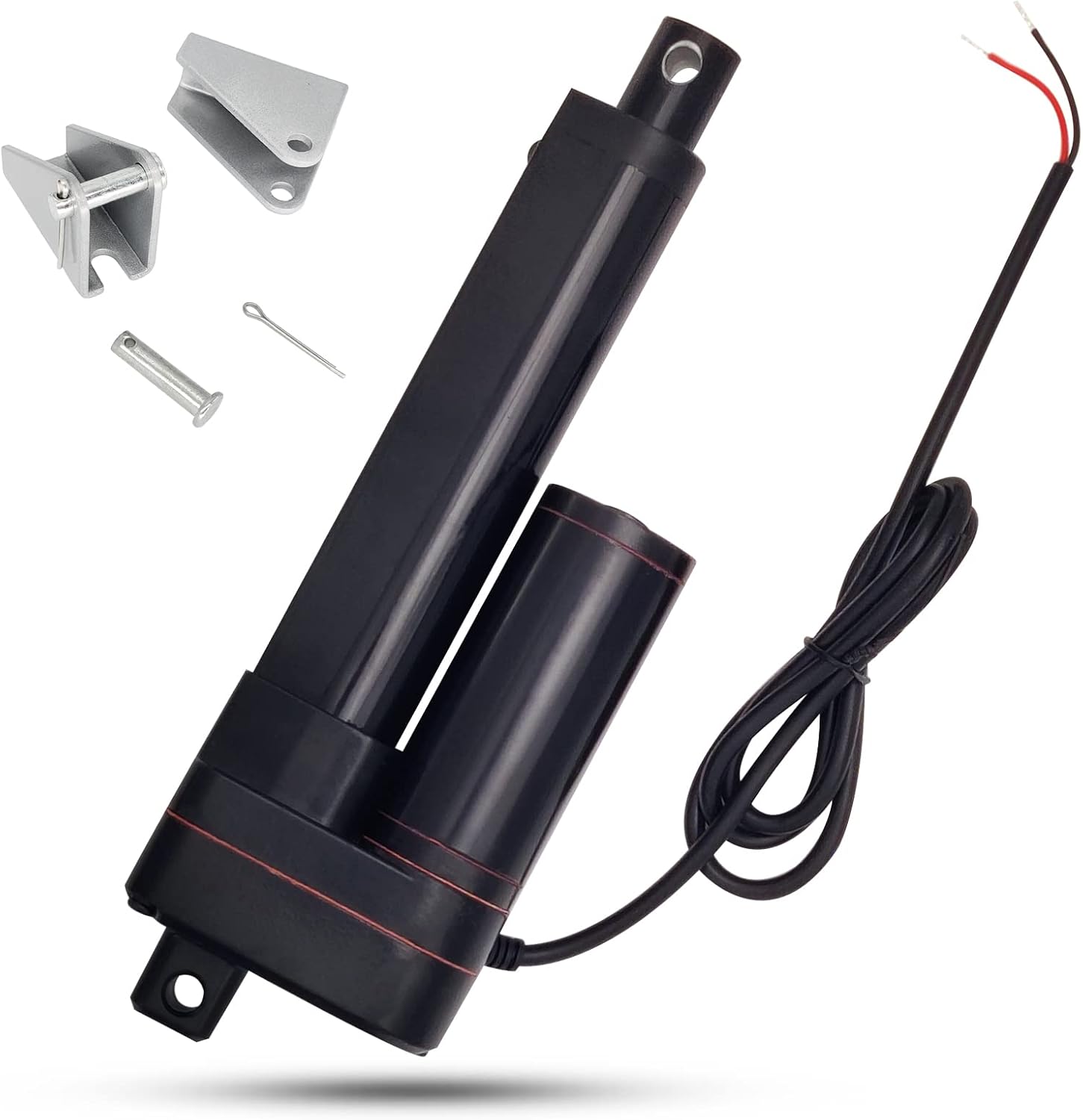

4 Inch Stroke 660lbs IP65 Waterproof Linear Actuator - Heavy Duty

Our review of this 4 in stroke 660lbs linear actuator finds it best suited for projects that need a sturdy, weatherproof electric actuator with reliable stopping and self-locking. The actuator is a straightforward 12V DC unit with a 4 in (100mm) stroke, a compact retracted length and an IP65 rating, making it a practical choice where dust and light water exposure are expected. The single biggest reason to buy is the combination of high load capacity and metal construction that delivers solid push/pull performance for many industrial and hobby installations.

Key Features

• 12V DC power: Compatible with common 12V systems for quick integration into vehicles, solar trackers, and workshop projects.
• 4 in stroke with compact packaging: Provides 100mm of travel while keeping the retracted length to 9 in (230mm) for tight installs.
• High load capacity: Rated to move up to 660lbs (3000N), offering strong lifting and pushing force for many small-to-medium mechanical tasks.
• IP65 protection: Sealed housing helps resist dust and low-pressure water spray, increasing outdoor usability.
• Built-in limit switch and self-locking: Stops automatically at travel ends and holds position without additional brakes for safer, simpler setups.
• Low noise operation: Runs under 50dB so it is reasonably quiet for indoor and mobile installations.

Who It's For

This actuator is aimed at DIY fabricators, small industrial systems, and vehicle applications such as small dump beds or adjustable platforms where a compact, powerful 12V actuator is useful. It is also appropriate for solar tracker frames and electric furniture conversions where IP65 protection and self-locking are desirable.

It is less suited to precision motion control where exact speed or slow, smooth repositioning is required, or to heavy commercial lifts that regularly approach the upper load limit; installers needing finer speed control should consider actuators with adjustable drive electronics or feedback sensors.

Pros & Cons

Pros

• Solid aluminum construction gives a durable feel and good corrosion resistance.
• High rated force and self-locking limit switches simplify many lift and push applications.
• IP65 rating and sub-50dB noise level make it usable outdoors and in semi-quiet environments.

Cons

• Some users report the actual lift performance and speed can vary; the no-load speed is 5mm/s, and performance under heavy load will be slower.
• Not a precision actuator: no feedback sensor is included for exact position control.

Specifications

Voltage	12V DC
Stroke Length	4 in (100mm)
Retracted / Extended Length	9 in (230mm) / 13 in (330mm)
No-load Speed	0.2 in/sec (5mm/s)
Maximum Load	660 lbs (3000N)
Maximum Current Draw	5A
Protection Class	IP65

Our Verdict

The 4 in 660lbs IP65 linear actuator is a practical, value-oriented choice for DIYers and small industrial uses that need a strong, weather-resistant 12V actuator with self-locking limit switches. It delivers robust force and straightforward integration, but buyers seeking precise speed control or guaranteed performance at the very top load should plan accordingly.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes, the IP65 rating protects against dust and water spray, making it suitable for outdoor use with reasonable exposure limits.

Does it include mounting brackets?
Yes, the package includes 2 mounting brackets for installation.

Will it hold position when power is removed?
Yes, the actuator has a self-locking mechanism and built-in limit switches that hold position when power is removed.
