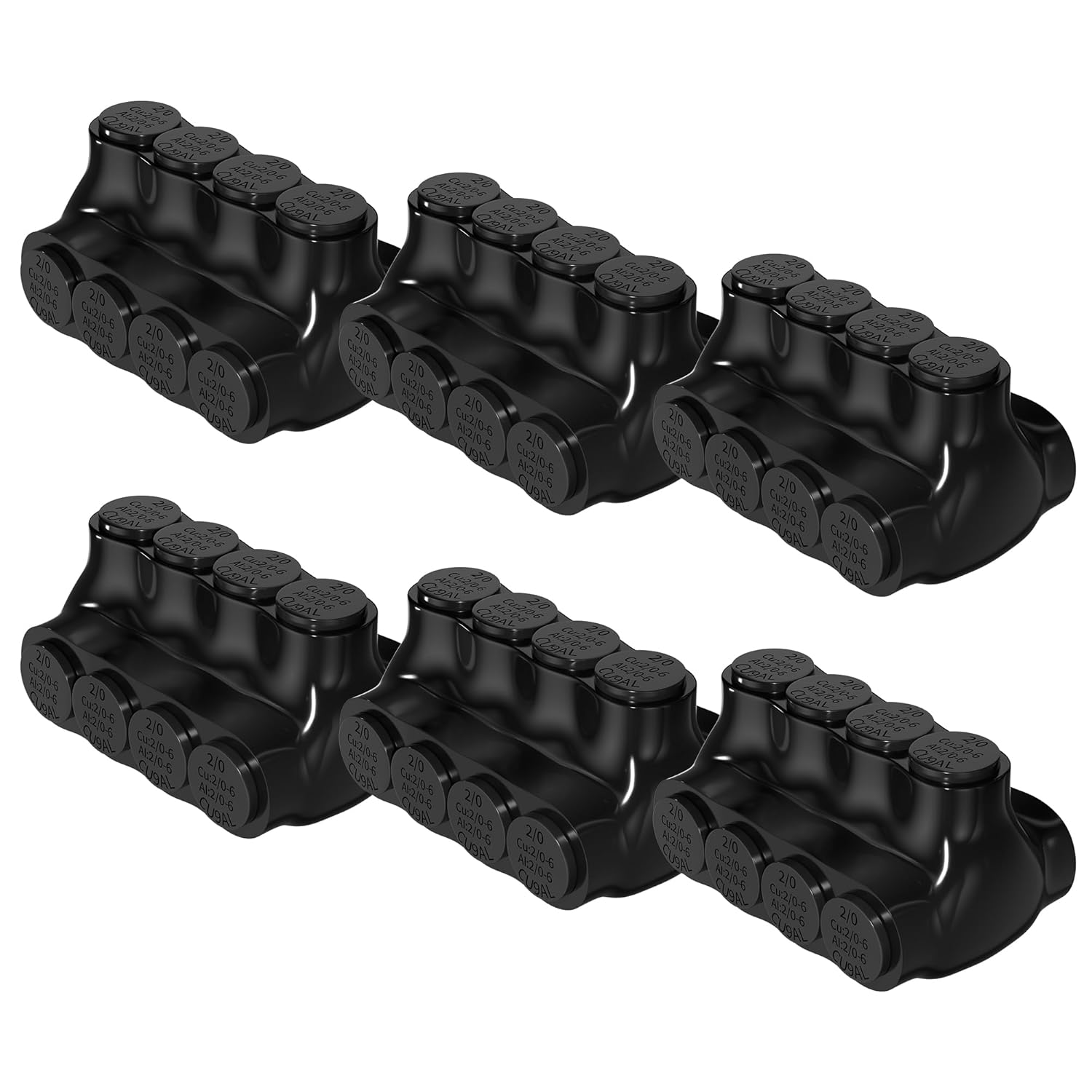

4 Port Black Insulated Connectors 2/0-6AWG - 6 Pack

In this review the 4 Port Black Insulated Connectors from RVBOATPAT are evaluated for anyone needing a safe, multi-tap solution for larger gauge wiring. The bottom line: these connectors excel at mixing aluminum and copper wires and at handling a wide range of gauges with a secure hex screw termination. They are aimed at installers, RV and marine owners, and electrical technicians who need a durable insulated splice option and want the ability to reinsert conductors for inspection without changing the connector.

Key Features

• Wide wire gauge range: Supports 2/0, 1/0, 2, 4, 6, 8, 10, 12 and 14 AWG which covers heavy battery and auxiliary circuits as well as smaller control runs.
• Dual entry insulation: The high dielectric strength plastic insulation provides improved chemical protection and wear resistance in demanding environments.
• Hex screw termination: Uses a 3/16 in Allen hex screw to securely clamp wires and allow reinsertion for inspection and troubleshooting.
• Lubricated ports: Ports include a lubricating oil with antioxidant properties to reduce oxidation and ease insertion of aluminum conductors.
• Multiple connection options: Designed for aluminum-to-aluminum, copper-to-copper and aluminum-to-copper splices, simplifying mixed-metal wiring jobs.
• Aluminum construction: Aluminum body offers a larger conductor range and higher current capability compared with small nut-style connectors.

Who It's For

The connectors are best for RV owners, marine electricians, auto battery system installers and anyone working with heavy gauge power wiring who needs a compact insulated multi-tap solution. Their design is particularly useful where aluminum and copper conductors must be joined reliably.

They are less suitable for extremely small signal wiring or where tool-free push-in terminations are preferred; users who need quick-disconnect features or non-screw terminations should look at alternative connector types.

Pros & Cons

Pros

• Supports a broad range of wire gauges, making it versatile for battery and power distribution tasks.
• Insulated dual entry body improves chemical resistance and protects the splice in harsher environments.
• Hex screw clamp and lubricated ports make aluminum splicing more reliable and easier to maintain.
• Allows mixed-metal connections, avoiding common problems from aluminum-copper mixing when done properly.

Cons

• Requires an Allen wrench for installation, so it is not a tool-free solution.
• Aluminum body may not suit users who prefer all-copper connectors for specific corrosion environments.

Specifications

Product type	4 port insulated multi-tap connector
Compatible wire gauges	2/0 AWG, 1/0 AWG, 2, 4, 6, 8, 10, 12, 14 AWG
Termination	3/16 in Allen hex screw
Body material	Aluminum with high dielectric plastic insulation
Included protection	Lubricating oil with antioxidant properties in ports
Pack quantity	6 pack

Our Verdict

The 4 Port Black Insulated Connectors are a practical, value-minded choice for technicians and RV or marine owners who need a reliable multi-tap that handles large gauges and mixed-metal splices. They deliver secure hex-screw clamping, useful insulation, and reinsertable ports for inspection, making them a good investment where durable, serviceable splices are required.

Frequently Asked Questions

Can these connectors join aluminum to copper?
Yes. They are designed to allow aluminum-to-copper and copper-to-copper connections when installed with the included antioxidant lubricant and proper tightening.

What wire gauges will fit?
They accept a wide range from 2/0 AWG down to 14 AWG, covering common battery and power distribution sizes.

Do I need special tools to install them?
An Allen wrench for the 3/16 in hex screw is required; no crimping is necessary but torque should be appropriate for secure clamping.
