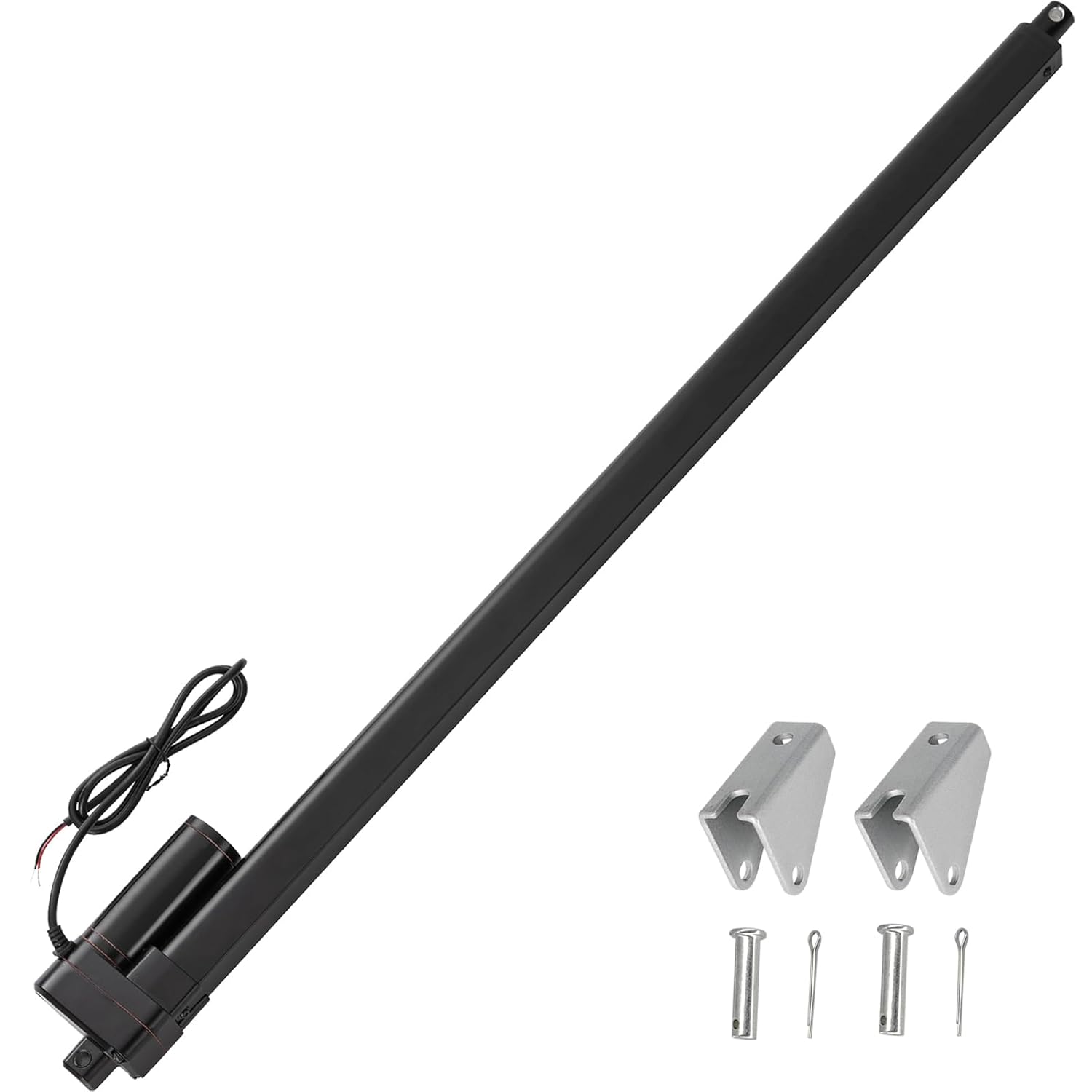

40 in Stroke Linear Actuator 12V Heavy Duty 440lbs - Waterproof

In this review of the 40 in Stroke Linear Actuator we look at whether this 12V, heavy duty unit is a practical choice for workshop and outdoor projects. The bottom line: it is built for tasks that demand strong push force and weather resistance, making it a solid pick for solar trackers, electric lifting systems and heavy DIY lifts. The actuator's 40 in stroke and 440 lb push capacity are the single biggest reasons to consider it if you need long travel and dependable holding under load.

Key Features

• 40 in stroke: Provides a long 1000mm travel range that lets you move large assemblies without complex linkage work.
• 440 lb push force: A high maximum pushing capacity suitable for lifting and tilting medium-to-large loads in industrial or home setups.
• Self-locking and limit switches: Built-in stops and self-locking capability allow the actuator to hold position safely and stop automatically at each end.
• IP65 waterproof rating: Sealed construction makes the unit suitable for outdoor installations such as solar trackers and covered exterior lifts.
• Quiet operation: Plastic gear drive and aluminum alloy body keep noise under 50 dB and provide a stable, corrosion-resistant structure.
• Complete mounting: Ships with two mounting brackets so the actuator can be installed quickly without separate hardware.

Who It's For

The actuator is well suited for hobbyists, fabricators and light industrial users who need long stroke linear motion with significant push force: think solar tracker frames, adjustable platforms, electric sofas and small lift tables. Its weatherproofing and robust aluminum body make it a practical choice for semi-permanent outdoor use.

Those who need very high speed or continuous duty in a production environment should consider alternatives with higher duty cycles or geared motors tuned for speed. Likewise, if you require precision feedback or integrated sensors beyond built-in limit switches, a unit with position feedback would be more appropriate.

Pros & Cons

Pros

• High push capacity that handles heavy applications without auxiliary gearing.
• Long 40 in stroke reduces the need for additional linkages or sliding mechanisms.
• IP65 protection and aluminum construction for outdoor durability and low corrosion risk.
• Quiet operation under 50 dB for installations where noise matters.

Cons

• Speed is modest at about 0.31 in/sec, so it is not suited for applications needing fast actuation.
• Pull capacity is lower than push (noted by design), so check mounting orientation and load direction for your project.

Specifications

Voltage	DC 12V
Stroke length	40 in (1000 mm)
Retracted / Extended	46 in (1150 mm) / 86 in (2150 mm)
No-load speed	0.31 in/sec (8 mm/s)
Maximum push load	440 lbs (2000 N)
Maximum current draw	5 A
Protection class	IP65

Our Verdict

The 40 in Stroke Linear Actuator is a practical, value-minded option for users who need long travel and robust push capacity with outdoor protection. It excels where holding force and weather resistance matter, and the included mounting brackets speed installation. Choose it when slow, steady motion and strong self-locking performance are priorities rather than high speed or integrated position feedback.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes. The IP65 rating and aluminum alloy body make it suitable for outdoor and protected installations like solar trackers and outdoor lifts.

What is the maximum load it can push?
The actuator provides a maximum push force of about 440 lbs (2000 N); pulling capacity is lower and should be verified for your orientation.

Does it stop automatically at the ends?
Yes. Built-in limit switches automatically stop travel at the fully retracted and fully extended positions, and the self-locking function holds position under load.
