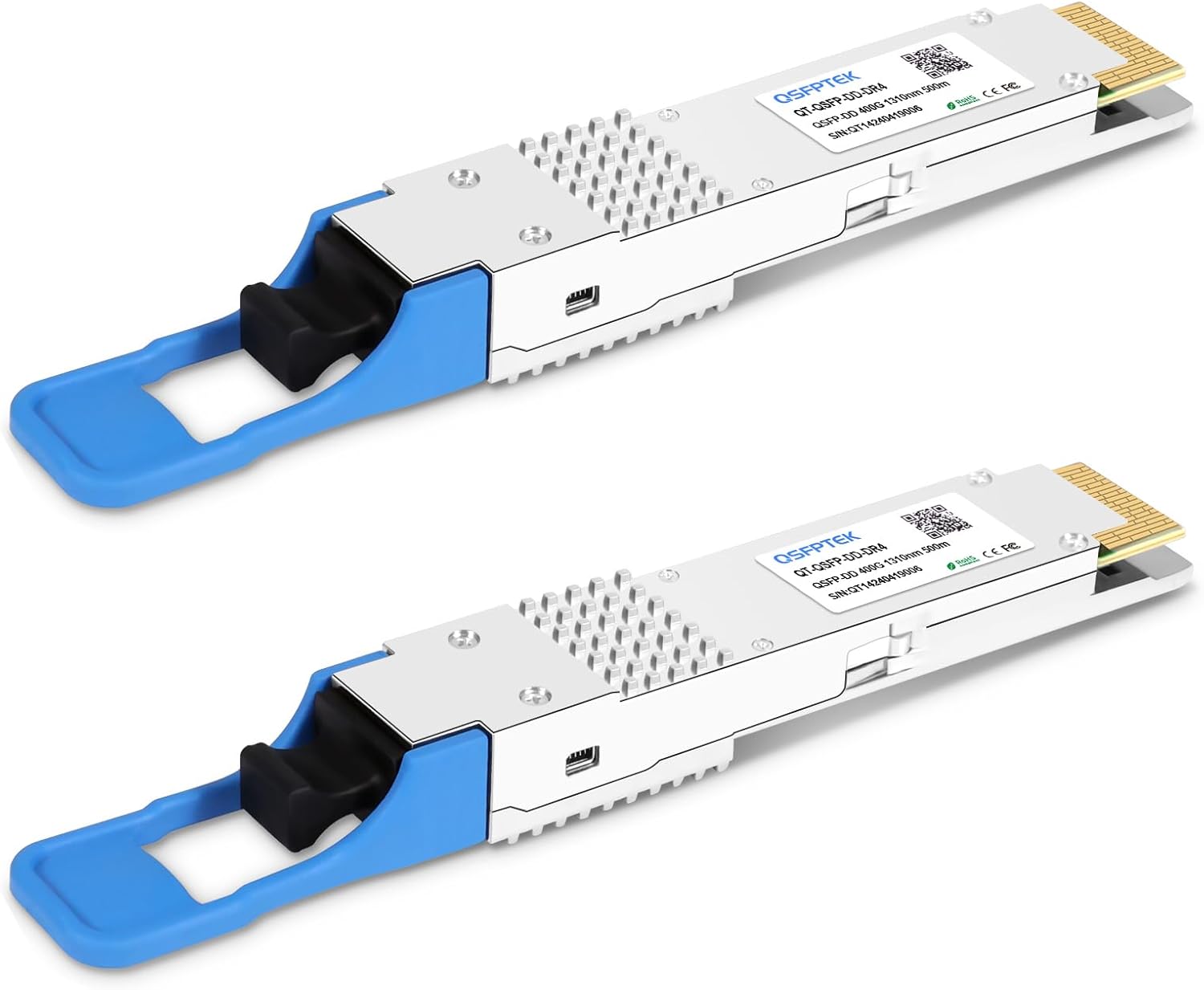

400GBase QSFP-DD DR4 PAM4 Optical Transceiver - 500m Low Power

In this review the QSFPTEK 400GBase QSFP-DD DR4 module is evaluated as a dense-connectivity option for data centers and HPC networks that need a cost-conscious 400G upgrade. The bottom line: this transceiver delivers 400G Ethernet links up to 500m over single-mode fiber with low power draw, and it is most useful where a QSFP-DD form factor and 4x100G breakout flexibility are required. The review focuses on real-world fit, electrical and optical compatibility, and whether heat and power are reasonable for rack deployments.

Key Features

• PAM4 modulation: Provides the higher per-lane data density that enables 400G performance across four parallel optical lanes while remaining cost effective.
• EML + PIN optics: Ensures reliable 1310nm transmission to support links up to 500m over single-mode fiber with MTP/MPO-12 connectivity.
• Low power consumption: Draws under 10W, which helps reduce cooling and power budget impact in dense switch ports.
• 4x100G breakout: Supports breaking out to QSFP28 100G-DR, 100G-FR, and 100G-LR modules for flexible port aggregation and migration strategies.
• QSFP-DD and IEEE compliance: Built to the QSFP-DD MSA and IEEE 802.3bs standard, increasing interchangeability in multi-vendor racks.

Who It's For

This module is aimed at network engineers and system integrators working in high-performance computing, hyperscale data centers, or enterprise fabrics that require 400G Ethernet uplinks with moderate reach. It is particularly useful where MTP/MPO-12 cabling plants and QSFP-DD ports are already deployed and where breakout to 100G is part of migration planning.

Those who should look elsewhere include small offices or edge deployments that do not need 400G capacity or lack QSFP-DD ports, and environments that require longer single-mode reach than 500m or multimode fiber support without additional conversion.

Pros & Cons

Pros

• High-density 400G capability in a QSFP-DD form factor enables smoother upgrades from 100G architectures.
• Support for 4x100G breakout improves operational flexibility when connecting to existing 100G QSFP28 transceivers.
• Low power usage under 10W reduces thermal load compared with some higher-power 400G optics.
• Standards compliance with QSFP-DD MSA and IEEE 802.3bs increases interoperability.

Cons

• Reach is limited to 500m on single-mode fiber, so it is not suitable for very long-haul links beyond data center fabric spans.

Specifications

Form Factor	QSFP-DD
Data Rate	400G (8x 53.125Gb/s PAM4)
Wavelength	1310nm (EML)
Reach	Up to 500m over SMF with MTP/MPO-12
Connector	MTP/MPO-12
Power Consumption	< 10W
Standards	QSFP-DD MSA, IEEE 802.3bs

Our Verdict

The QSFPTEK 400GBase QSFP-DD DR4 module is a practical choice for organizations upgrading fabric uplinks to 400G Ethernet where reach needs top out at 500m and power efficiency matters. It offers useful breakout support and standards compliance, making it good value for data centers and HPC clusters that already use QSFP-DD ports and MTP cabling.

Frequently Asked Questions

Can this module break out to 100G QSFP28 ports?
Yes. It supports 4x100G breakout to QSFP28 100G-DR, 100G-FR, and 100G-LR transceivers for flexible migration paths.

What fiber and connector type are required?
It uses single-mode fiber with an MTP/MPO-12 connector and operates at 1310nm for links up to 500m.

Is this compatible with standard QSFP-DD ports?
Yes. The transceiver is compliant with the QSFP-DD MSA and IEEE 802.3bs standards for interoperability.
