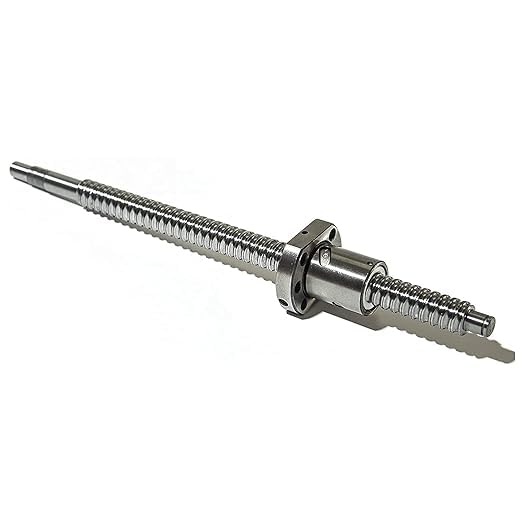

40mm Ballscrew SFU4010 RM4010 240mm 10mm Pitch - Precision CNC Part

Our review of the 40mm Ballscrew SFU4010 RM4010 focuses on precision motion for small-to-medium CNC setups and retrofit projects. The standout reason to buy is its combination of a 40mm diameter and a 10mm lead delivered in a compact 240mm overall length, providing high static and dynamic stiffness for accurate positioning. This unit is aimed at builders and machinists who need a low-friction, low-noise linear drive with standard end machining for BK/BF30 mounting and a metal deflector nut included.

Key Features

• 40mm diameter: provides robust support and higher stiffness for reduced deflection under load.
• 10mm lead: balances speed and positional resolution for common CNC and motion-control tasks.
• Precision C7 grade: offers consistent accuracy suitable for many workshop and industrial applications, with optional higher grades available on request.
• Standard end machining for BK/BF30: simplifies installation into machines designed for those bearing blocks.
• Metal deflector ballscrew nut: extends service life by protecting the recirculation path and lowering contamination risk.
• Rolled thread GCr15 steel: delivers low friction, small starting torque and reduced drive power needs.

Who It's For

This ballscrew suits hobbyists upgrading desktop CNC mills, kit builders assembling router tables, and small shops needing a compact, stiff linear drive for custom machines. It is especially appropriate when a 240mm travel and 10mm pitch match the intended axis speed and feedrate.

Those who require ultra-high-precision or hardened ground threads for heavy industrial machining may want to consider higher precision grades or alternative constructions; the listed item is a rolled thread C7 grade designed for general precision, not the tightest tolerances available.

Pros & Cons

Pros

• High stiffness and low friction yield accurate positioning and less heat during operation.
• Standard BK/BF30 end machining allows straightforward mounting to common bearing blocks.
• Included metal deflector nut and GCr15 steel construction increase expected service life.
• Positive and negative rotation delivers consistent behavior in both directions for reversible axes.

Cons

• Supplied as C7 grade; users needing tighter tolerances should request C5 or ground alternatives.
• Length and pitch are fixed in this listing; projects needing different travel or lead must use the seller's customization service.

Specifications

Model	SFU4010 RM4010
Diameter	40mm
Lead / Pitch	10mm
Total length	240mm (9.45 in)
Nut type	Metal deflector ballscrew nut
Precision	C7 Grade (C5 available on request)
Material	Rolled GCr15 steel

Our Verdict

The SFU4010 RM4010 is a practical, value-oriented ballscrew for CNC hobbyists and small shops that need a compact 40mm drive with a 10mm lead and BK/BF30 compatible ends. It delivers good stiffness, lower drive torque, and a protected metal nut at a reasonable spec level; buy it when you want reliable positional performance without paying for the highest precision ground screws.

Frequently Asked Questions

Does this ballscrew include the nut?
Yes, the listing includes one metal deflector ballscrew nut matched to the screw.

Is the end machining ready for BK/BF30 bearing blocks?
Yes, it is supplied with standard end machining for BK/BF30 to simplify mounting.

Can I get different lengths or higher precision?
The seller offers customization and can provide other lengths and a C5 grade on request; contact them for CAD or 3D files if needed.
