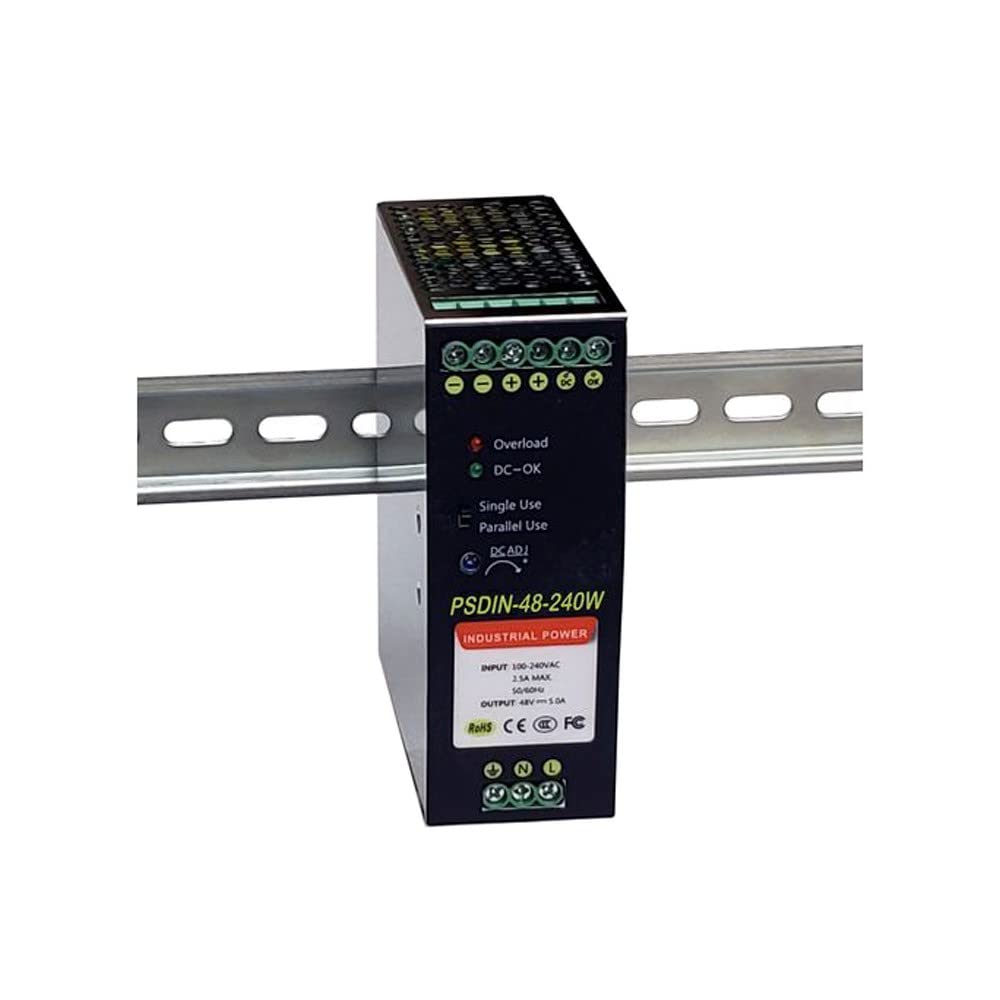

48VDC 240W DIN Rail Mount Industrial Power Supply - Reliable 48V

In this review the PSDIN-48-240W is evaluated as a rugged DIN rail power supply for network and security installations. The bottom line: it is for installers and system integrators who need a stable 48VDC 240W source with industrial temperature tolerance and a useful alarm output. The unit's wide 90 to 264VAC input and adjustable 47V to 56V output make it a practical choice where input conditions vary and minor output tuning is required. The review focuses on real-world use in PoE, IP telephony and camera systems.

Key Features

• Wide input range: The 90 to 264VAC auto-ranging input accepts common industrial and site power conditions without manual switching.
• Adjustable 48V output: The nominal 48VDC output is adjustable from 47V to 56V so installers can fine tune voltage for downstream equipment or voltage drop compensation.
• High temperature operation: Rated to operate from -40C to +70C so it handles harsh indoor and sheltered outdoor enclosure environments.
• Parallel operation: A switch enables single or parallel mode so two units can be combined to deliver up to 480W total for larger loads.
• Dry contact alarm: The relay provides a dry contact closure that opens on DC fault, allowing integration with monitoring or alarm systems.
• DIN rail form factor: The compact mount style and wire terminal connections simplify installation inside panels and racks.

Who It's For

The PSDIN-48-240W is aimed at network installers, security contractors and telecom technicians who need a dependable 48V power supply for PoE switches, IP phones and camera systems. Its industrial temperature range and wiring terminals suit utility closets, communications cabinets and remote enclosures.

It is not intended for hobbyist desktop use where smaller plug-in adapters suffice, nor for applications requiring built-in battery backup or integrated surge suppression - those features would need separate components.

Pros & Cons

Pros

• Reliable 240W 48V output with adjustment for voltage fine tuning.
• Wide 90-264VAC input removes the need for site-specific input selection.
• Industrial temp rating (-40C to +70C) supports harsh environments.
• Dry contact alarm and parallel capability make it suitable for monitored and expandable systems.

Cons

• Does not include built-in battery backup or surge suppression, so extra components are required for uptime and transient protection.
• Wire terminal connections require proper panel wiring skills; not a plug-and-play consumer device.

Specifications

Model	PSDIN-48-240W
Input Voltage	90 to 264VAC auto-ranging
Output Voltage	48VDC nominal (adjustable 47V to 56V)
Maximum Output Power	240W (per unit)
Operating Temperature	-40C to +70C
Form Factor	DIN rail mount with wire terminal connections
Alarm	Dry contact relay closes on normal DC, opens on fault

Our Verdict

The PSDIN-48-240W is a solid industrial 48VDC supply for professionals who need a reliable, adjustable 240W source with remote alarm and parallel expandability. It delivers good value where temperature tolerance and monitored operation matter, though projects requiring battery backup or surge protection will need additional components.

Frequently Asked Questions

Can two units be combined for more power?
Yes. A switch enables parallel operation and two supplies operating in parallel provide up to 480W total.

What happens to the alarm relay on DC failure?
The dry contact relay is closed when DC output is normal and opens during fault, overload or safety shutdown so external alarms or monitoring systems can be triggered.

Is this suitable for outdoor use?
It has an extended -40C to +70C operating range but should be mounted inside an appropriate enclosure to protect against moisture and direct weather exposure.
