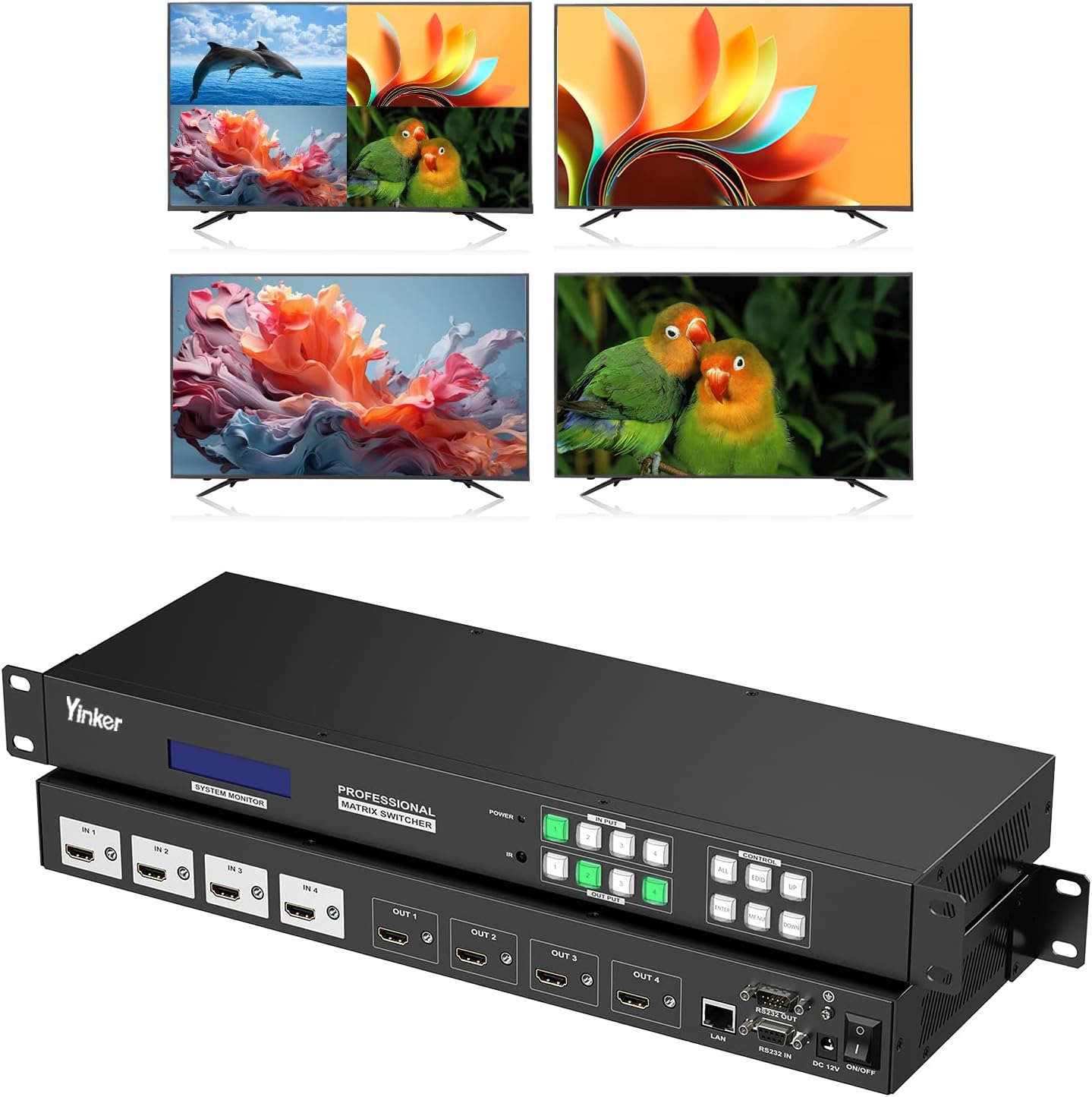

4K@30Hz HDMI Matrix Switch 4x4 - Video Wall, Multiviewer & App Control

In this review the 4K@30Hz HDMI Matrix Switch 4x4 is evaluated as a versatile signal distribution tool aimed at small control rooms, presentation suites, and advanced home theaters. The bottom line is that it combines a full 4x4 HDMI matrix, a 2x2 video wall controller and a 4x1 multiviewer in one rack-mountable unit, making it a good choice when you need flexible routing, picture-in-picture layouts and basic video wall splicing without adding multiple devices.

Key Features

• 4x4 HDMI matrix: Allows connecting four HDMI sources and sending any input to any of four displays so switching and splitting are simple without unplugging cables.
• 2x2 video wall controller: Offers multiple splicing modes including 2x2, 1x3 and 1x4 to create tiled video walls and mirrored layouts for signage or multi-panel displays.
• 4x1 multiviewer: Provides 23 output modes like PIP, POP and quad view so one monitor can show several inputs simultaneously for monitoring or conferencing.
• Four control methods: Switch via front panel buttons, IR remote, RS232/LAN or Web GUI and use the Android app for remote operation and easier presets management.
• Audio embedding and de-embedding: 3.5mm ports at inputs and outputs let you route stereo audio to a sound bar, mixer or amplifier without extra converters.
• 4K capable: Supports up to 4K@30Hz and common features like HDCP, EDID management, HDR and Dolby Vision with practical cable reach for installations.

Who It's For

This unit suits integrators and AV techs who need a single box to handle switching, multiview monitoring and basic video wall tasks in meeting rooms, retail displays or small broadcast and streaming setups. The rack-mountable format and multiple control options make it useful where remote control and RS232/LAN integration are required.

Those who need true 4K@60Hz performance, professional color grading, or very long-run single-cable 4K distribution should look elsewhere, since rotation modes restrict output to 1080P and the highest supported refresh is 4K@30Hz.

Pros & Cons

Pros

• Combines matrix switching, video wall and multiviewer functions in one rack-friendly unit for space and budget savings.
• Multiple control options including Web GUI and Android app make remote setup and daily use straightforward.
• 3.5mm audio embedding/de-embedding is convenient for AV systems that need external sound integration.
• Supports HDR, Dolby Vision and EDID management for better compatibility with modern sources and displays.

Cons

• Rotation of output 1 is limited to 1080P, so rotated 4K content is not supported.
• Maximum 4K refresh is 30Hz, which may not suit applications requiring 60Hz motion smoothing.

Specifications

Matrix Inputs	4 HDMI
Matrix Outputs	4 HDMI
Max Resolution	4K@30Hz (rotation mode 1080P)
Video Wall Modes	1x1, 1x2, 2x1, 2x2, 1x3, 3x1, 1x4, 4x1
Multiview Modes	23 modes including PIP, POP, PBP and Quad
Audio	3.5mm embedding and de-embedding per input/output
Control	Front panel, IR remote, RS232/LAN, Web GUI, Android app

Our Verdict

The 4K@30Hz HDMI Matrix Switch 4x4 is a practical, feature-rich choice when you need combined matrix routing, multiview monitoring and video wall tiling in one rack-mount device. It offers good value for AV integrators and small installations that prioritize flexibility and remote control, while buyers needing 4K@60Hz or rotated 4K outputs should consider higher-end alternatives.

Frequently Asked Questions

Can the unit be controlled over a network?
The matrix supports LAN control via a Web GUI and can be integrated with RS232 for automation systems.

Does the multiviewer support picture rotation?
Yes, output 1 supports 90, 180 and 270 rotation, but rotated output is limited to 1080P resolution.

Is audio available at outputs?
Yes, each input and output has 3.5mm audio embedding and de-embedding for stereo routing to external audio equipment.
