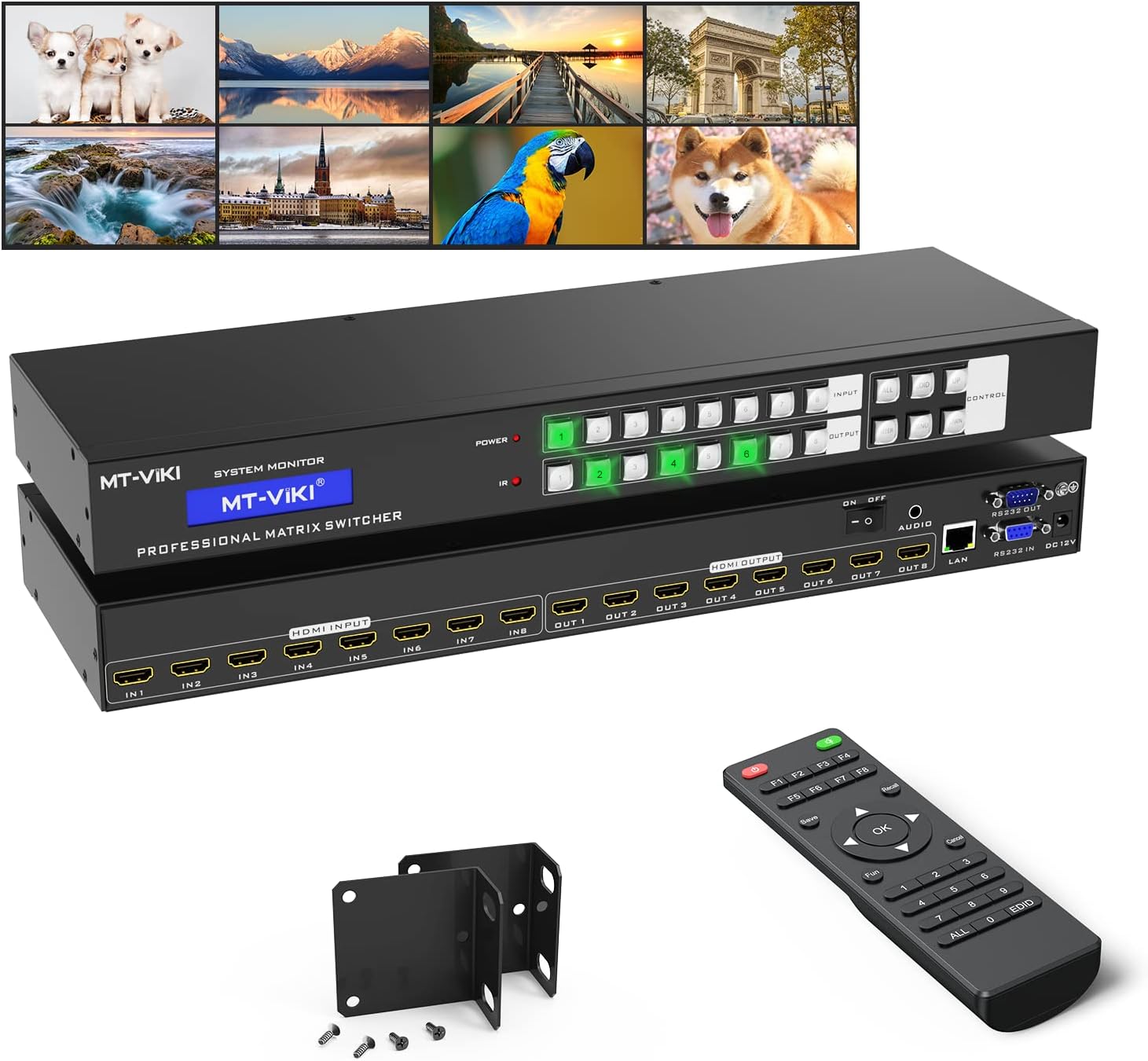

4K HDMI Matrix Switch 8x8 - Flexible Routing for Home AV Systems

Our review of this 8x8 HDMI matrix switch finds it best for home theaters, small control rooms, and AV integrators who need flexible multizone routing without fuss. The single biggest reason to buy is its ability to route eight 4K HDR sources to eight displays with multiple control options, so setups that require independent signals or full mirroring get a reliable, configurable solution. Setup is straightforward: connect inputs and outputs, power on, and you can operate via front panel buttons, the included IR remote, RS232, LAN or a web GUI.

Key Features

• 8x8 4K routing: Route up to eight HDMI sources to eight displays with per-output selection for fully customized viewing or identical mirroring.
• 4K@30Hz support: Handles resolutions up to 3840x2160 at 30Hz so most UHD content and sources display clearly on compatible screens.
• Multiple control methods: Control locally with front buttons or remotely via IR, RS232, LAN, or the web GUI for flexible integration into automation systems.
• Audio handling: Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD formats and offers 3.5mm audio extraction on OUT8 for analog monitoring or downstream audio devices.
• Network management: Local LAN control and MatrixController compatibility let a computer or phone manage routing without physical access to the unit.
• Protection and distance: 8KV ESD protection and reliable transmission up to about 10 meters using quality HDMI 1.4 cables to preserve signal integrity.

Who It's For

This matrix is aimed at homeowners building multiroom entertainment systems, small post or presentation spaces, and AV integrators who need a mid-size, rack-mountable router that supports several control interfaces. The ability to switch between mirrored and independent outputs plus LAN and RS232 control makes it a practical choice where centralized control or remote operation matters.

Those who should look elsewhere include users who require 4K at 60Hz, HDCP 2.2 specific workflows, or very long cable runs beyond 10 meters without additional distribution amplifiers. Also consider a unit with higher refresh rate or HDMI 2.0 if gaming at 60Hz or HDR metadata pass-through is essential.

Pros & Cons

Pros

• Versatile control options (button, IR, RS232, LAN, web GUI) make integration straightforward.
• Supports multiple audio formats and offers 3.5mm extraction for analog output on OUT8.
• Good value for routing eight 4K sources to eight displays with ESD protection and network control.

Cons

• Limited to 4K at 30Hz, so it is not ideal for 4K@60Hz applications such as high-frame-rate gaming.

Specifications

Model Type	8x8 HDMI Matrix Switch
Maximum Resolution	3840x2160 at 30Hz
Control Methods	Front buttons, IR remote, RS232, LAN port, Web GUI
Audio Formats	PCM, Dolby AC3, DTS5.1, DTS7.1, DSD
Audio Extraction	3.5mm stereo on OUT8
Cable Distance	Input/output up to 10 meters (recommend HDMI 1.4 cable)
Protection	8KV ESD protection

Our Verdict

The 8x8 HDMI matrix is a practical, cost-conscious choice for multiroom AV and light commercial routing when 4K at 30Hz is sufficient. It combines broad control options, solid audio support, and straightforward network management to deliver flexible routing for installers and enthusiasts. Buy it if you need reliable multi-display distribution and remote control without paying for higher-speed HDMI 2.0 features you do not need.

Frequently Asked Questions

Can I control the matrix from a phone or computer?
Yes, local LAN control is supported and the unit provides a web GUI and MatrixController compatibility for control from a computer or compatible phone browser.

Which output provides the 3.5mm analog audio?
Audio extraction via the 3.5mm stereo jack is available on OUT8; switch the output mode accordingly to use it.

What cable length is supported?
Input and output HDMI cable runs are supported up to about 10 meters; for best stability use high-quality HDMI 1.4 cables.
