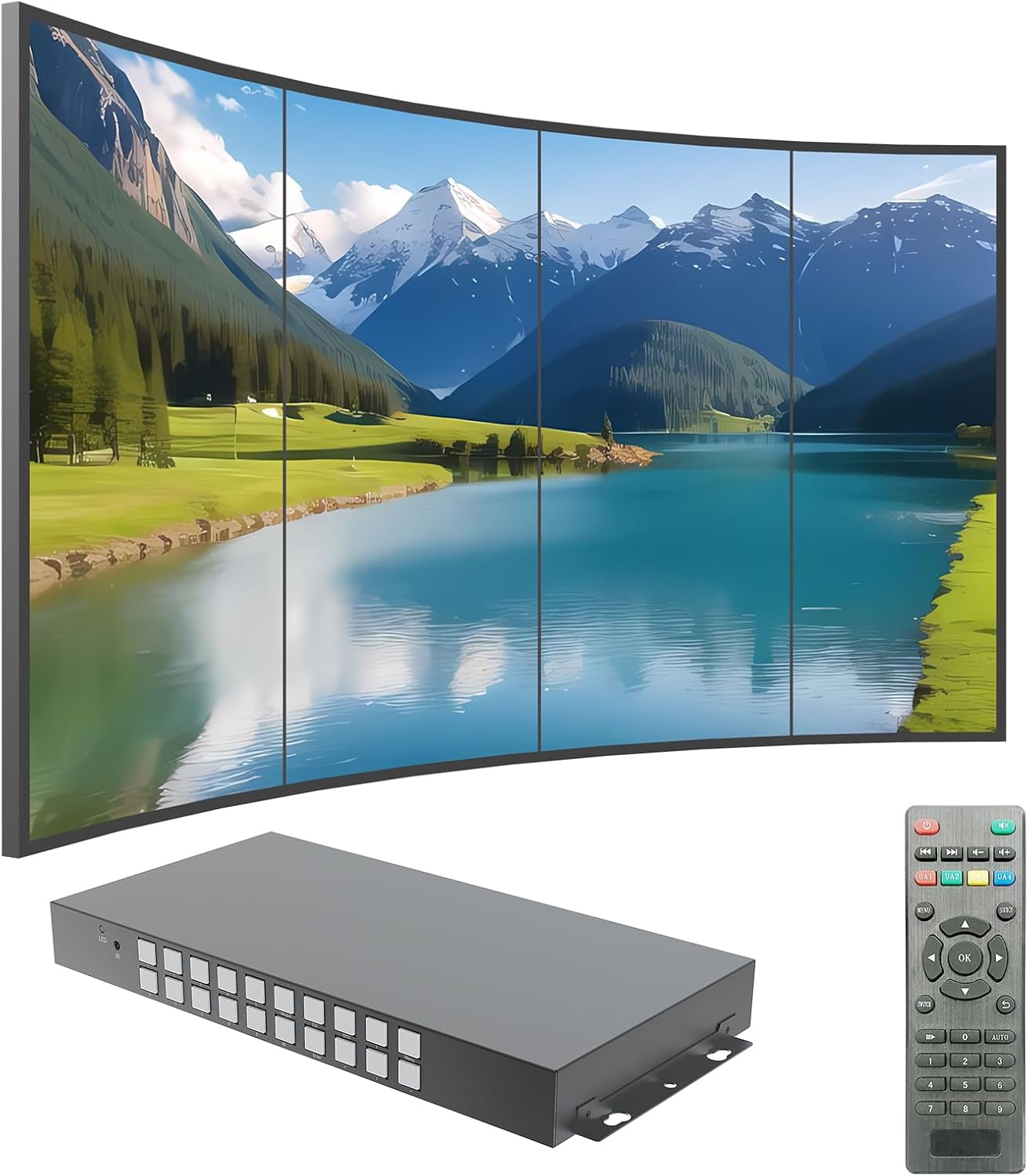

4K ICUIXIAN Video Wall Controller 4x1 Vertica 1x4 - Dual Mode 4x4

In this review the ICUIXIAN 4K Video Wall Controller stands out as a tool for small control rooms, retail displays, and exhibition booths that need both matrix switching and video wall stitching. The bottom line: it is a practical, all-in-one 4-in/4-out HDMI matrix and 2x2 video wall processor that makes switching between a tiled large-screen and independent outputs straightforward, and supports portrait and vertical splicing. For buyers who need flexible 4k routing plus seamless splicing with rotation options, this unit combines both functions in a single box.

Key Features

• 4x4 HDMI Matrix: Lets any of the four 4k inputs be routed to any of the four outputs for flexible display assignments.
• 2x2 Video Wall Mode: Enables stitched large-screen presentations while keeping audio and video output synchronized for consistent playback across panels.
• Vertical and Rotation Support: Supports 90, 180 and 270 degree rotation and vertical splicing modes such as 1x4 and 4x1 to suit portrait-oriented displays.
• Seamless Switching: Fast HDMI switching implementation avoids black screens and delay when changing input sources in matrix mode.
• Preview and Control Options: Four-screen preview and control via infrared remote, front panel buttons, or RS232 software give several workflow options for live operation.
• Multiple Splicing Layouts: Offers a range of layouts including 2x2, 1x3, 3x1, 1x2 and 2x1 for varied installation needs.

Who It's For

The ICUIXIAN controller is aimed at AV integrators, retail visual teams, and event technicians who need a compact 4k routing device that doubles as a video wall processor. Its combination of HDMI matrix switching and multi-layout splicing makes it useful where space is limited but display flexibility is required.

It is less suited to very large multi-unit video walls beyond 2x2 stitching or installations that require networked control platforms beyond RS232 and IR. If you need enterprise AV over IP or larger-scale processors, a specialized multi-node solution would be a better fit.

Pros & Cons

Pros

• Combines a full 4-in/4-out HDMI matrix with 2x2 video wall stitching, reducing rack space and equipment count.
• Supports portrait and vertical splicing with 90-180-270 degree rotation, useful for kiosks and portrait video walls.
• Seamless switching and 4-screen preview improve live operation and source confidence before routing to outputs.
• Multiple control methods (IR, panel, RS232) give flexible integration options for different setups.

Cons

• Not intended for very large video walls beyond the supported splicing modes, so scale is limited to small tiled layouts.
• Control relies on IR, panel and RS232; no advanced networked control is described, which may limit remote management options.

Specifications

Device Type	4x4 HDMI Matrix and 2x2 Video Wall Processor
Inputs	4 HDMI 4k inputs
Outputs	4 HDMI outputs with matrix and stitched modes
Splicing Modes	1x4, 4x1, 2x2, 1x3, 3x1, 1x2, 2x1
Rotation	90, 180, 270 degree rotation per display unit
Control Methods	Infrared remote, front panel buttons, RS232 software control

Our Verdict

The ICUIXIAN 4K Video Wall Controller is a versatile, value-oriented unit for small to medium tiled displays where both matrix routing and video wall stitching are required. It saves equipment space and simplifies installations that need portrait rotation and multiple splicing layouts, making it a strong choice for retail, trade shows, and compact control environments.

Frequently Asked Questions

Can this unit rotate individual displays?
Yes, each output supports 90, 180 and 270 degree rotation so displays can be used in portrait or landscape orientations.

Does it preview multiple inputs?
Yes, the HDMI matrix supports a 4-screen preview feature to show all four inputs on a monitor before assigning them to outputs.

What control options are available?
Control is available via infrared remote, front panel buttons and RS232 software control for integration with common AV setups.
