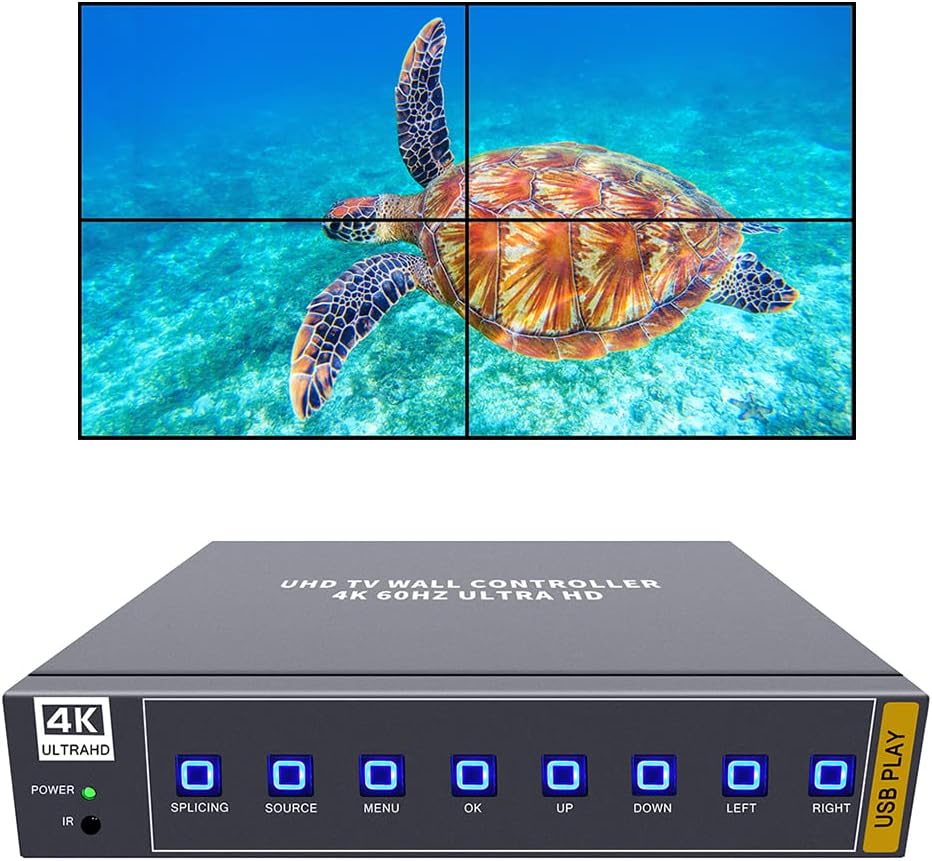

4K60 HDMI USB Video Wall Controller - 2x2 to 4x1 Splicing Display

In this review the ISEEVY 4K60 HDMI USB Video Wall Controller is evaluated for installers and small venues that need a compact hardware solution to drive up to four TVs in spliced layouts. The bottom line: it delivers true 4K60 input and USB playback support in a small box, making it useful for digital signage, meeting rooms, and retail windows where native 3840x2160@60Hz or 4096x2160@60Hz content is required. The controller is best when a reliable, hardware-based splicing device is preferred over software or PC-based setups.

Key Features

• True 4K60 input: Accepts HDMI 2.0 signals up to 3840x2160@60Hz or 4096x2160@60Hz so sources are passed through at native UHD quality.
• USB media playback: Plays video, audio, and images from a USB disk including MP4, MKV, MP3 and JPEG files for simple local content playback without a PC.
• Flexible splicing modes: Four HDMI outputs support 2x2, 1x2, 1x3, 1x4, 2x1, 3x1 and 4x1 layouts to arrange up to four displays in multiple configurations.
• Cascade for larger walls: Multiple units can be cascaded to expand to larger arrays, supporting up to a 4x5 layout across multiple devices for very large displays.
• Per-output image control: Each output can be rotated 180 degrees for inverted mounting, and brightness, contrast, saturation, sharpness and crop can be adjusted per port.

Who It's For

The controller is aimed at AV integrators, small business owners, and venue operators who need a standalone hardware solution to feed UHD sources to multi-screen walls without relying on a PC. It is especially useful where native 4K60 source fidelity and reliable outputs are required for signage, showroom walls, or trade show booths.

It is less suitable for users who need advanced networked content management or cloud scheduling features; those users should consider a dedicated media server or networked digital signage platform instead. Also, if more than four displays are required in a single unit, multiple controllers must be linked.

Pros & Cons

Pros

• Hardware support for real 4K60 HDMI input preserves source quality for UHD displays.
• USB playback of common video, audio, and image formats removes the need for a separate player.
• Multiple splice modes and per-output rotation give installation flexibility for various wall layouts.
• Cascade capability allows scaling to much larger walls across several units.

Cons

• Does not include advanced networked content management, so scheduling and remote updates require external systems.
• To drive more than four TVs in one seamless plane requires cascading multiple units, which adds complexity.

Specifications

Brand	iseevy
Maximum input resolution	3840x2160@60Hz / 4096x2160@60Hz
Outputs	4 HDMI outputs with built-in audio
Splice modes	2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1
USB playback formats	Video MP4, AVI, MKV, TS, MOV, WMV; Audio MP3, WMA, WAV, FLAC; Images JPG, JPEG, PNG
Image adjustments	Brightness, contrast, saturation, sharpness, crop; per-output 180 degree rotation
Scalability	Cascade multiple devices for up to 4x5 (max 20 TVs)

Our Verdict

The ISEEVY 4K60 HDMI USB Video Wall Controller is a practical, value-oriented choice for installers and small venue operators who need native 4K60 input fidelity and straightforward USB playback without a PC. Its flexible splice modes, per-output controls and cascade support make it a good fit where hardware reliability and image quality matter more than cloud features.

Frequently Asked Questions

Can it play 4K videos from a USB drive?
Yes, it supports USB playback of video up to 3840x2160@60Hz and 4096x2160@60Hz in common formats such as MP4 and MKV.

How many TVs can a single unit drive?
A single unit supports up to four TVs in configured splice modes; multiple units can be cascaded to reach larger arrays up to a 4x5 layout.

Can each output be adjusted for inverted installations?
Yes, each HDMI output can be rotated 180 degrees for inverted TV mounting and has per-output image parameter controls.
