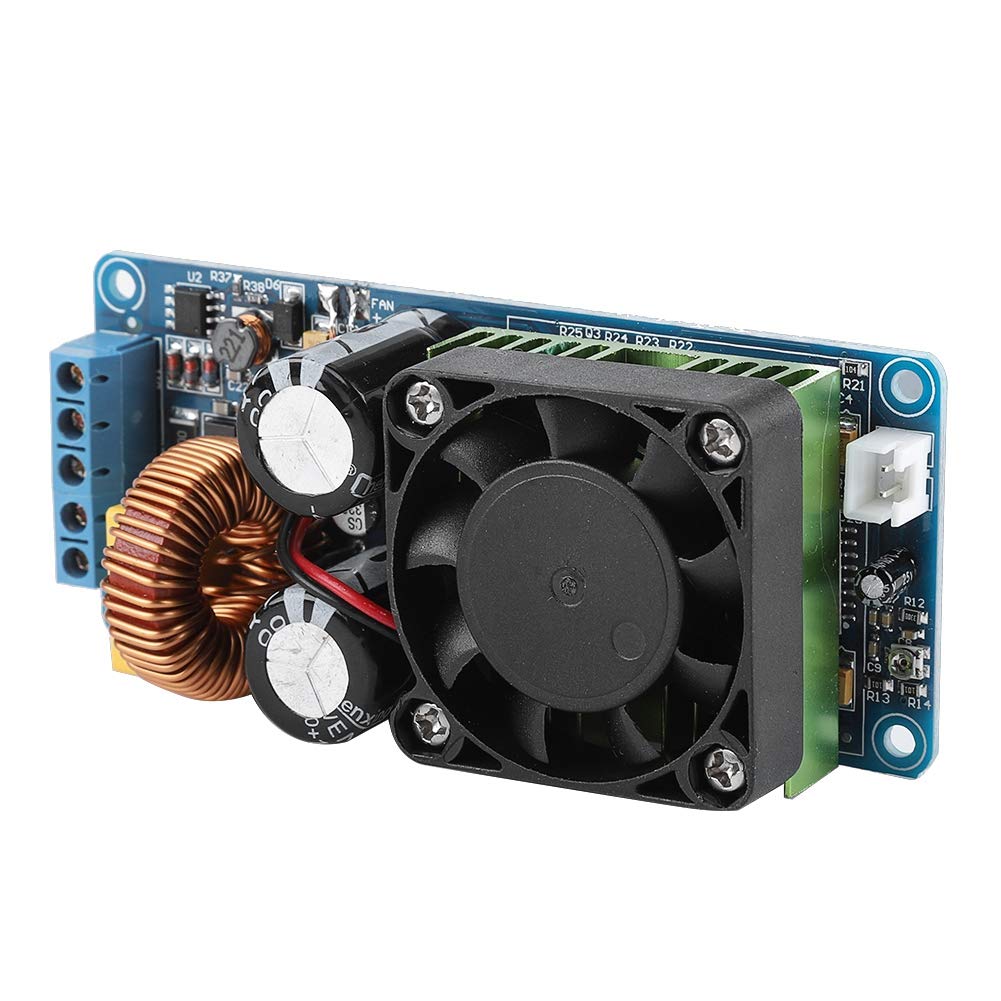

500W Digital Audio Power Amplifier Board Mono Channel - High

In this review of the 500W Digital Audio Power Amplifier Board, the bottom line is simple: this mono Class D amp board is for DIY audio builders and active speaker makers who need a high-efficiency, high-power stage with solid protection features. The reviewer found it delivers up to 500W into 4 ohm under the specified conditions, runs with greater than 90% efficiency, and includes multiple safeguards so it can be integrated into home theater or custom speaker projects with confidence. It is a raw power amplifier board, so a preamp is recommended if your source cannot deliver the required input sensitivity.

Key Features

• High output power: Delivers up to 500W (65V supply, 4 ohm, 10% THD) to drive demanding single-channel speakers in a compact board format.
• High efficiency: Class D topology provides >=90% efficiency and low idle power loss, keeping heat and power draw down for long listening sessions.
• Protection suite: Built-in over-voltage, under-voltage, overheating, short-circuit and DC detection protect the amp and connected speakers from common fault conditions.
• Thermal cutoff: The output will shut off if the heat sink FET temperature exceeds 100 C, preventing thermal damage under heavy load.
• SNR and distortion performance: Rated signal-to-noise ratio around 90dB and very low distortion at practical power levels, keeping mid-to-high fidelity for music and home theater use.
• Application flexibility: Designed for home theater, active speakers and DIY audio projects as a mono channel power stage.

Who It's For

This board is aimed at hobbyists and professional DIY builders assembling active speaker systems, subwoofer amplifiers, or single-channel home theater applications that require a dedicated power stage. It is especially useful where efficiency, compact size and robust protection are priorities.

It is not a complete consumer product: buyers who need integrated controls, a built-in preamp, or lower-voltage single-supply operation should look elsewhere, since the board expects a dual DC supply of 58-70V and an input sensitivity of about 1.5V RMS.

Pros & Cons

Pros

• Very high power capability up to 500W when paired with a suitable 65V supply and 4 ohm load.
• Excellent efficiency (>=90%) reduces heat and power consumption compared with linear amplifiers.
• Comprehensive protection including short-circuit, DC detection and thermal shutdown for safer operation.
• Low distortion at practical listening power (examples given for 380W and 280W with <0.1% THD).

Cons

• Requires a high-voltage dual DC supply (58-70V) and a source with ~1.5V RMS input or an added preamp, so extra components are needed for many setups.

Specifications

Rated output power	500W (65V, 4 ohm, 10% THD)
Supply voltage	Dual DC 58-70V
Efficiency	>= 90%
SNR	90dB
Frequency range	20Hz - 20KHz
Speaker load	4-8 ohm
Input sensitivity	1.5V RMS

Our Verdict

The 500W Digital Audio Power Amplifier Board is a strong choice for builders who need a compact, efficient mono power stage with thorough protection features and high practical output. It represents good value when paired with the right high-voltage supply and a preamp if needed, delivering powerful, low-distortion performance for custom speakers and home theater subs.

Frequently Asked Questions

Do I need a preamp?
If the source device cannot provide about 1.5V RMS input, add a preamp to reach the amplifier's input sensitivity and avoid driving limitations.

What supply voltage is required?
The board requires a dual DC power supply in the 58-70V range, with 65V cited for rated output figures.

Does it protect the speaker?
Yes, it includes output short-circuit protection, DC bias detection and will shut off the output if the FET temperature exceeds 100 C.
