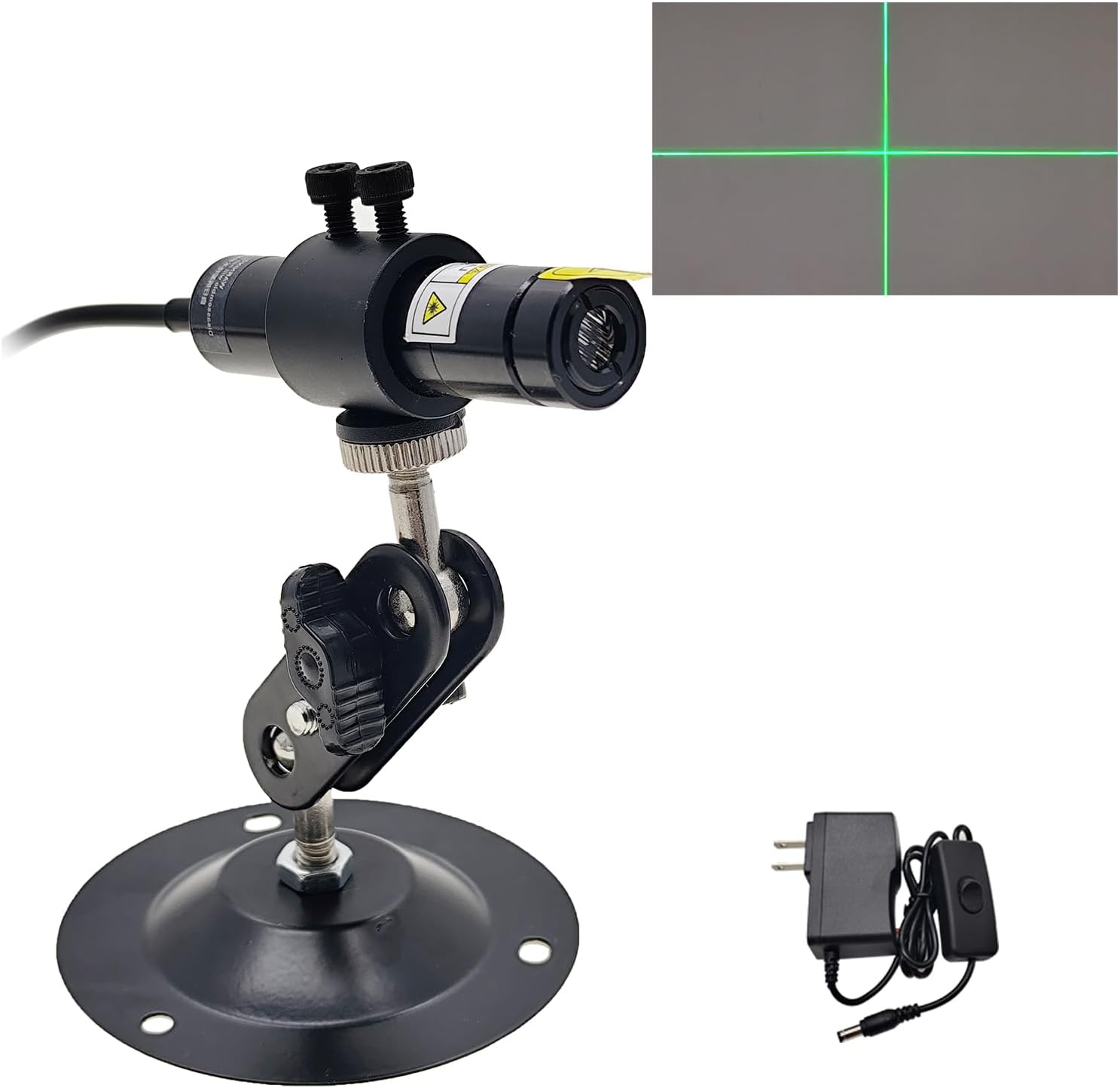

520nm Green Cross Laser Locator Module - Focusable 16mm Alignment

In this review of the 520nm Green Light Cross Module by Laserlands, the bottom line is simple: it is a focused alignment tool for textile printers, heat press operators and craftsmen who need a bright, visible cross to line up designs. The reviewer found the green cross especially useful when working against red or dark red backgrounds where red lasers fail, and the focusable beam and adjustable line width make precise placement faster. This unit is compact with a 16mm barrel and a dustproof new design suited to shop use.

Key Features

• Bright green cross: A sharp 520nm cross projection is easier to see on red and many fabrics, speeding alignment tasks.
• Focusable with adjustable line width: The focus control and adjustable line width let users fine tune the cross for different distances and material textures.
• Shop-friendly construction: The aluminum barrel and dustproof new design hold up to routine handling in print and craft environments.
• Compact 16mm size: The 16mm diameter fits common mounts and accessories while keeping the module small and lightweight.
• Low-power, safe output: Output under 5mW (Class IIIr) with a 5V supply makes it easy to power and compliant for workplace use.
• Secure mounting: The new adjustable mount with larger fastening screws provides stable alignment during repeated operations.

Who It's For

This module is aimed at screen printers, heat press operators, textile decorators, small sign makers and hobbyists who need a clear visual guide to position transfers, screens or engraved patterns. The green cross is a particular advantage when aligning on red fabrics, printed backgrounds or surfaces where a red dot would be hard to see.

It is less appropriate for users who need multi-color laser alignment or longer-range industrial surveying; the module is built for close to medium distance placement and shop bench work rather than outdoor or long-distance alignment tasks.

Pros & Cons

Pros

• Very visible green cross improves accuracy on red and dark fabrics compared with red lasers.
• Adjustable focus and line width allow precise tailoring of the projection for different distances and materials.
• Sturdy aluminum, dustproof body and a more robust mounting screw design reduce downtime from adjustments.
• Low voltage 5V operation and sub 5mW output simplify powering and keep the unit within common safety limits.

Cons

• Duty cycle recommendation (2 hours on, 5 minutes off) means continuous production runs may require management to avoid overheating.
• The module is optimized for shop and bench use and is not designed for long-range outdoor alignment tasks.

Specifications

Output	<5mW (Class IIIr)
Wavelength	520nm (green)
Brightness Level	Green Cross Brightness Level 5
Working Voltage	5V with power adapter
Shape	Cross
Material	Aluminum
Size	16mm diameter barrel
Duty Cycle	2 hours on, 5 minutes off

Our Verdict

The Laserlands 520nm green cross module is a practical, value-minded tool for screen printers and heat press users who need reliable visual alignment, particularly on red or dark backgrounds. With focusable optics, adjustable line width, rugged construction and simple 5V power, it covers the needs of small shops and hobbyists who want faster, more accurate placement without complex setup.

Frequently Asked Questions

Can this be used on red fabric?
Yes. The 520nm green cross is specifically effective on red and dark red backgrounds where red lasers are hard to see.

What power supply does it need?
The module runs on 5V and is intended to be used with a suitable 5V power adapter.

Is it safe for continuous use?
Follow the duty cycle guidance: up to 2 hours on followed by at least 5 minutes off to avoid overheating.
