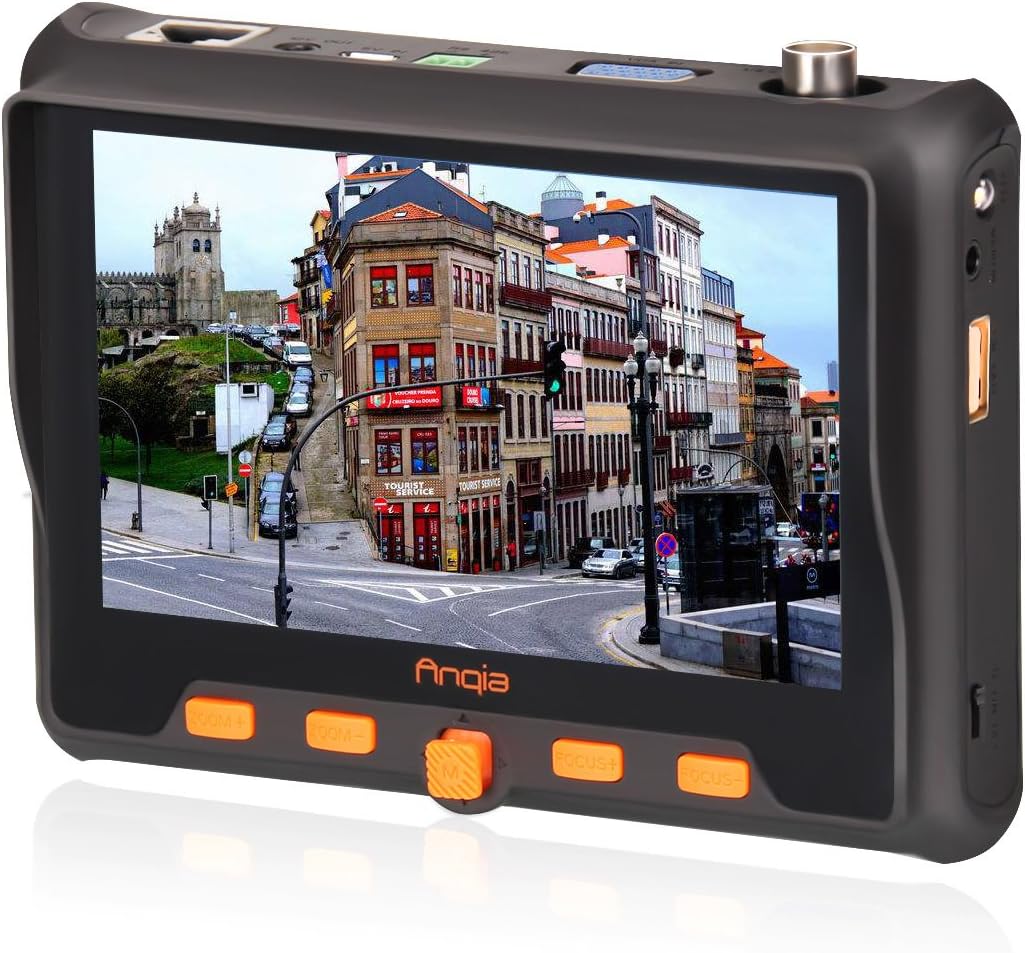

5ft CCTV Security Camera Tester 4-in-1 HD Tester - Portable Field Tool

In this review of the 5' CCTV Security Camera Tester 5800S by ANQIA, the bottom line is simple: it is a compact, all-in-one field tool for installers who need quick verification of coaxial and analog HD cameras and cabling. The tester's ability to handle AHD, TVI, CVI and CVBS formats in 720p to 1080p combined with a 5-in high-definition display and built-in 12V power output makes it a practical choice for on-site troubleshooting and camera setup. For technicians who value portability and a range of test functions in one handheld device, this tester is worth considering.

Key Features

• Multi-format video support: The unit supports 720p, 960p and 1080p CVI, TVI and AHD HD coaxial cameras plus CVBS analog, so one tester covers most legacy and HD analog systems.
• On-board power and emergency USB: A DC 12V 1A output powers cameras during setup and a USB 5V/1A port can provide emergency power to Android phones.
• PTZ and protocol compatibility: RS485 PTZ control supports 1200 to 115200 bps and is compatible with PELCO-D and PPELCO-P style protocols for live control checks.
• Cable and connection testing: Built-in BNC and UTP cable test box with indicator lights checks wiring continuity and can test distances up to 100-150 meters for field verification.
• Portable power and display: A 5-in HD screen, long-life 4000mAh lithium polymer battery and a handheld hook make it convenient for installers working on ladders or in tight spaces.
• VGA/HDMI input and menu support: The tester accepts VGA input up to common resolutions and HDMI 1.1, allowing verification of digital sources when switched to the appropriate mode.

Who It's For

The tester is aimed at CCTV installers, security technicians and small system integrators who need a single compact instrument for camera setup, PTZ control testing and cable verification. Its combination of video format support and on-board 12V power output means it removes the need to carry separate power supplies and multiple testers for most analog HD jobs.

It is less suitable for large enterprise test labs or purely IP camera deployments, since its focus is analog HD (AHD/TVI/CVI/CVBS) and RS485 PTZ control rather than network diagnostic tools. Customers who need advanced IP PoE switching features or managed network testing should look at dedicated network testers.

Pros & Cons

Pros

• Supports multiple analog HD formats and standard definition CVBS, making it versatile for mixed camera fleets.
• On-board 12V power output and USB emergency power remove dependence on extra adapters during fieldwork.
• Built-in cable tester and PTZ RS485 control speed up installation verification and troubleshooting.
• Portable package with a 5-in HD display and 4000mAh battery suits mobile use.

Cons

• Focused on analog HD; it does not replace IP-specific tools for PoE or deep network diagnostics.
• VGA/HDMI mode requires manual menu switching and a VGA adapter to change modes, which adds a small setup step.

Specifications

Our Verdict

The ANQIA 5800S 5' CCTV Security Camera Tester is a practical, value-oriented field tool for installers working with analog HD cameras. Its multi-format video support, integrated 12V power output and cable test capabilities reduce the number of tools required on a job. For technicians who primarily service AHD/TVI/CVI or mixed analog fleets, it delivers good utility and portability for the price.

Frequently Asked Questions

Can it power a camera directly?
Yes, the tester provides a DC 12V 1A output that can supply power to most standard analog CCTV cameras during setup.

Does it support PTZ control?
Yes, RS485 PTZ control is supported with baud rates from 1200 to 115200 bps and compatibility with PELCO-D and PELCO-P protocols.

How long does the battery last and can it charge phones?
The built-in 4000mAh lithium polymer battery is designed for field use after a full charge; the USB 5V/1A port can provide emergency power to Android phones only.
