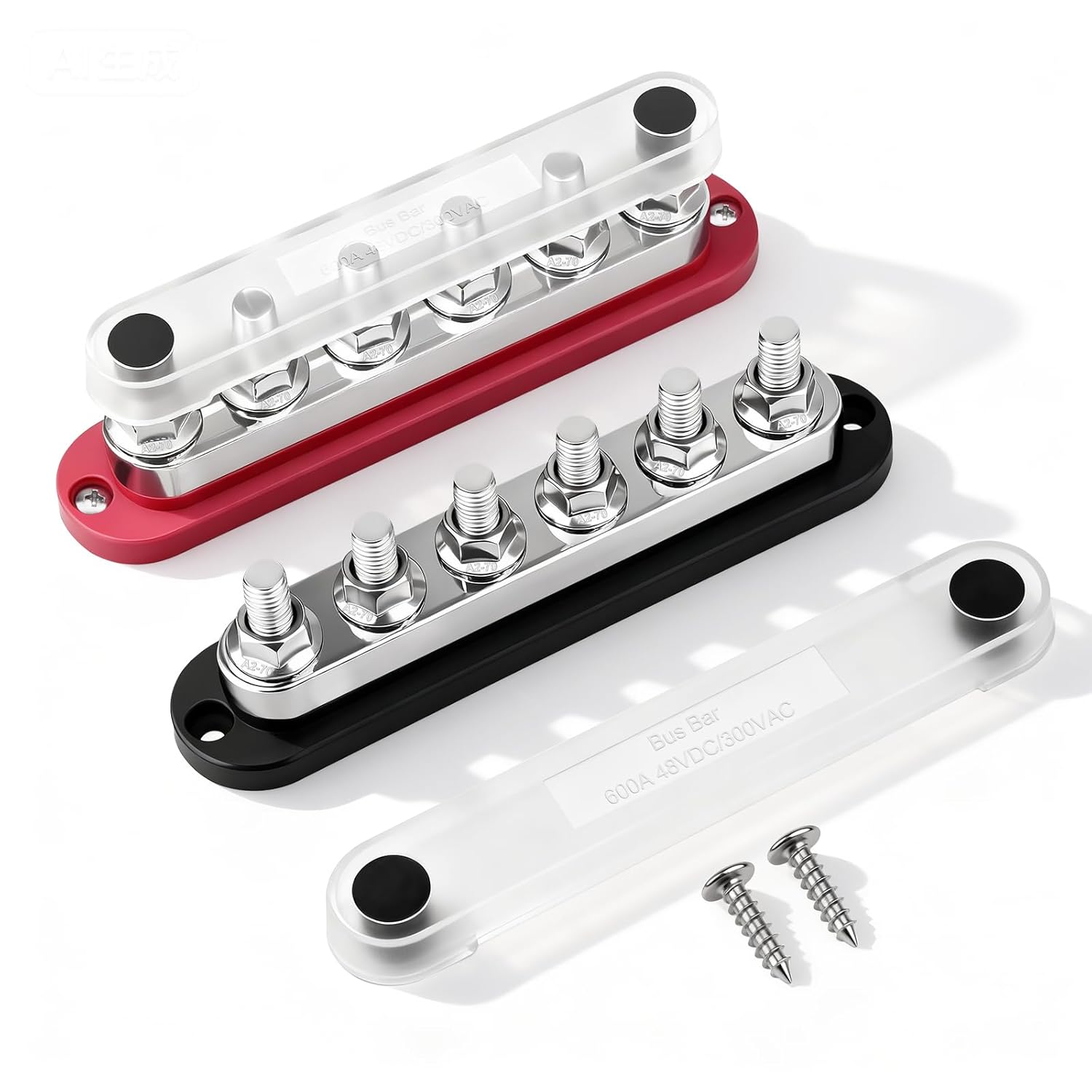

600A Bus Bar 12V Power Distribution Block - Heavy Duty 600A

In this review of the 600A Bus Bar 12V Power Distribution Block the bottom line is simple: this is a no-nonsense power distribution block built for heavy duty DC applications. It is aimed at installers who need a compact, high-current terminal block that keeps wiring tidy and safe on vehicles, boats, or small solar arrays. The single biggest reason to buy is the robust current capacity paired with practical terminals and a protective cover, which together make it an easy upgrade for automotive or marine battery wiring.

Key Features

• 600A rating: The block is rated for 600A at 12V, providing headroom for high-current battery and starter circuits in cars, trucks, and boats.
• Material quality: The copper bus bar plate is tin plated and the studs and nuts are stainless steel, which improves conductivity and corrosion resistance in marine or outdoor environments.
• 3/8' stud terminals: Six 3/8' stud terminals accommodate larger ring terminals and heavier gauge wire, simplifying connections for multiple circuits.
• Additional #8 screw terminals: Three #8 screw terminals offer smaller connection options for accessories or control wiring without using the studs.
• Protective cover and removable plates: The included cover and four removable side plates reduce the risk of shorts and allow easy routing of wires through customized openings.
• Wide voltage tolerance: While optimized for 12V systems, the block can handle up to 48V DC and 300V AC, offering flexibility for different installations.

Who It's For

This distribution block is well suited to DIY mechanics, marine electricians, and solar hobbyists who need a compact, heavy-duty terminal to organize battery and accessory wiring. It works best when multiple high-current feeds or returns must be combined or distributed from a single battery source.

It is less appropriate for systems that require built-in fusing, circuit protection, or distribution of many low-current signal lines - users who need integrated breakers or dozens of outputs should consider a dedicated fuse block or a more feature-rich distribution panel.

Pros & Cons

Pros

• High 600A capacity gives reliable performance for heavy loads like starters and winches.
• Solid construction with tin-plated copper bus and stainless hardware improves conductivity and resists corrosion.
• Combination of six 3/8' studs and three #8 screw terminals supports both large power leads and smaller accessory wiring.
• Protective cover and removable side plates make installation safer and cleaner.

Cons

• No built-in fusing or circuit breakers, so protection must be provided elsewhere in the system.
• The unit is a basic distribution block without integrated mounting brackets, so installers should plan mounting hardware or locations in advance.

Specifications

Model Type	12V Power Distribution Block
Current Rating	600A
Terminal Studs	6 x 3/8' stud terminals
Screw Terminals	3 x #8 screw terminals
Bus Bar Material	0.79' tin plated copper
Hardware Material	Stainless steel studs and nuts
Voltage Tolerance	Up to 48V DC and 300V AC

Our Verdict

The 600A Bus Bar 12V Power Distribution Block is a practical, value-focused choice for anyone wiring heavy DC systems on cars, trucks, or boats. Its high current rating, quality copper bus and stainless hardware give confidence in demanding environments, while the mix of studs and screw terminals keeps installations tidy. Buyers who need built-in protection or many outputs should add fuses or choose a different panel, but for pure distribution this unit delivers dependable performance.

Frequently Asked Questions

Can this block be used in marine environments?
Yes, the tin plated copper and stainless hardware are suitable for marine use, but proper sealing and mounting are recommended for long-term exposure.

Does the unit include a cover?
Yes, it ships with a protective cover, two nuts, and removable side plates to help prevent short circuits and simplify wiring routing.

Is fusing included?
No, the block is a passive distribution point and does not include fuses or circuit breakers, so external protection is required.
