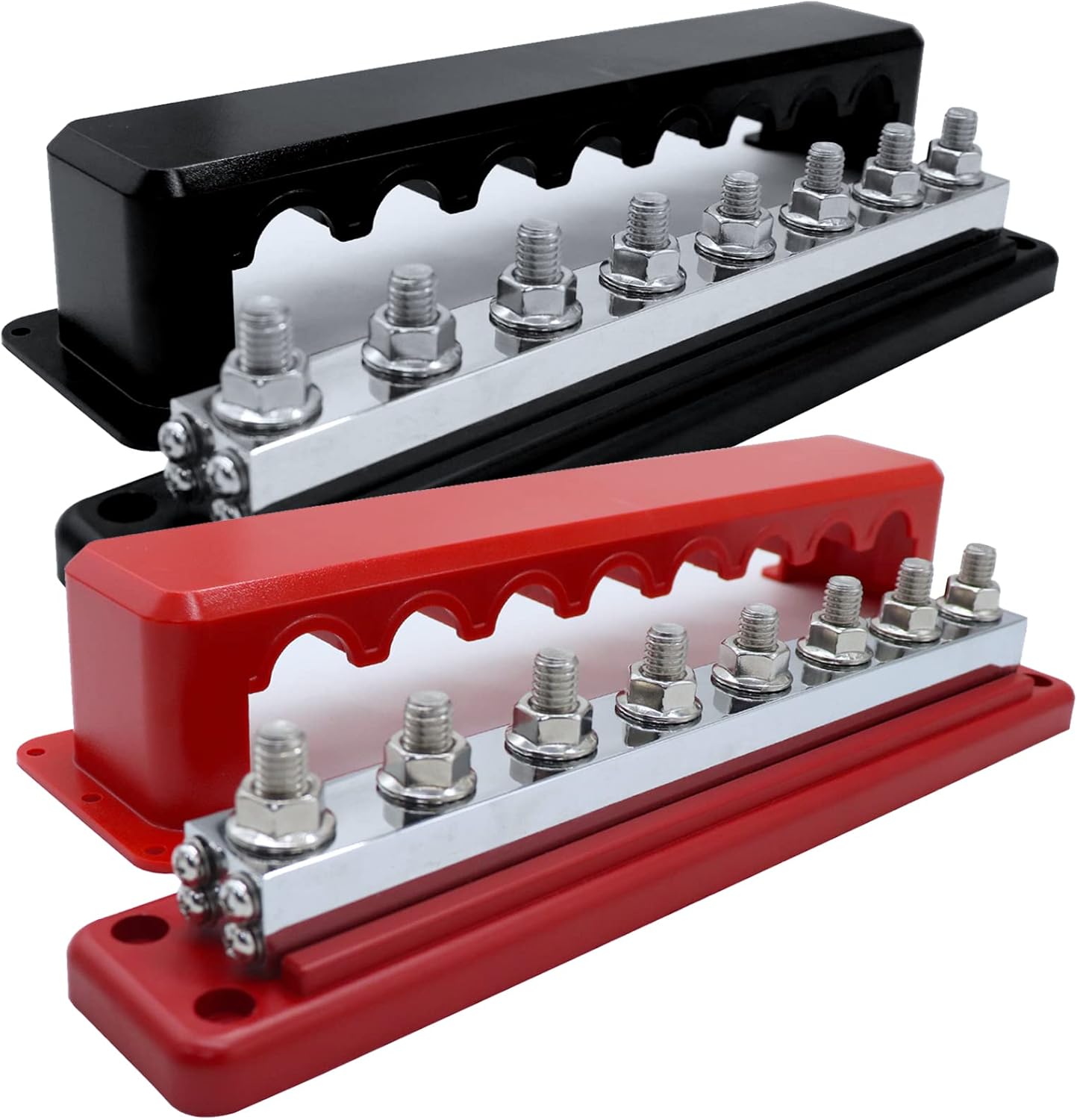

600A Copper Bus Bar 8-Way with Cover - High Current Distribution

In this review the 600 A copper bus bar is evaluated for installers and DIYers who need a compact, reliable way to consolidate high-current wiring. The bottom line: it is a straightforward distribution block built around a thick tin-plated copper bar and heavy-duty M10 studs, and its single biggest selling point is the combination of high conductivity and a flame-retardant nylon cover that simplifies multi-battery or multi-load setups. For anyone wiring an RV, boat, car audio system or small solar array, it offers a clean, centralized grounding and distribution point.

Key Features

• 19 mm copper bar: The 0.748 in thick tin-plated copper block delivers low resistance and durable contact for high-current circuits up to 600 A.
• M10 terminal studs: The 3/8 in studs (also compatible with M8) let installers attach heavy gauge cables and ring terminals without fiddly adapters.
• Eight screw ports: Eight #8-32 screws provide multiple branch connections to organize several loads or battery links from a single bus plate.
• Flame-retardant housing: The nylon glass fiber reinforced base and cover add mechanical strength and help protect terminals in mobile and marine environments.
• Corrosion resistant fasteners: Stainless steel studs and screws resist rust in damp or salt-exposed installations, extending service life.
• Compact footprint: At about 11.37 in by 2.01 in by 2.01 in, it fits into tight electrical compartments while keeping wiring tidy.

Who It's For

The bus bar is aimed at people wiring vehicles, boats, small solar systems, or custom power banks who need a single, heavy-duty distribution point. Its 600 A rating and M10 studs make it suitable for high-current battery banks, alternator feeds, and main grounding links in RVs, trucks and marine craft.

It is less appropriate for ultra-low-current electronics or where sealed, IP-rated enclosures are required; those users should look for fully encapsulated or weatherproof distribution blocks. Electricians needing circuit protection integrated into the block will also want a different product that includes fuses or breakers.

Pros & Cons

Pros

• Solid build quality with a thick tin-plated copper bar that users note for reliable conductivity.
• High 600 A continuous rating suits demanding automotive and marine power systems.
• Sturdy nylon glass fiber housing and stainless fasteners improve durability in mobile installations.
• Eight branch connections make wiring multiple loads or batteries straightforward and tidy.

Cons

• Not fully sealed against water ingress, so additional protection is needed for exposed marine or outdoor mounting.
• Requires appropriate terminal lugs and correct torque; installers should be comfortable with high-current wiring practices.

Specifications

Rated current	600 A
Max operating voltage	DC 48 V / AC 300 V implied
Bar thickness	0.748 in (19 mm) tin-plated copper
Stud size	M10 (3/8 in), compatible with M8
Connections	8 x #8-32 screws
Dimensions (L x W x H)	289 x 51 x 51 mm (11.37 in x 2.01 in x 2.01 in)

Our Verdict

The bus bar is a practical, cost-effective distribution block for installers who need a high-current, centralized connection point. With a thick tin-plated copper core, M10 studs and a reinforced nylon cover, it brings reliable conductivity and mechanical protection at a reasonable price, making it a smart choice for RV, marine and vehicle audio projects where sealing and integrated protection are not primary requirements.

Frequently Asked Questions

Can this handle multiple battery connections?
Yes, the 600 A rating and eight branch screws are suited to multi-battery wiring configurations when used with correct cable sizes and lugs.

Is the housing waterproof for marine use?
The flame-retardant nylon cover provides mechanical protection but the unit is not fully waterproof; use additional sealing or an enclosure for exposed marine locations.

What terminal sizes fit the studs?
The studs are M10 (3/8 in) and will accept M8 sized lugs with compatible hardware; use proper ring terminals sized for high-current cables.
