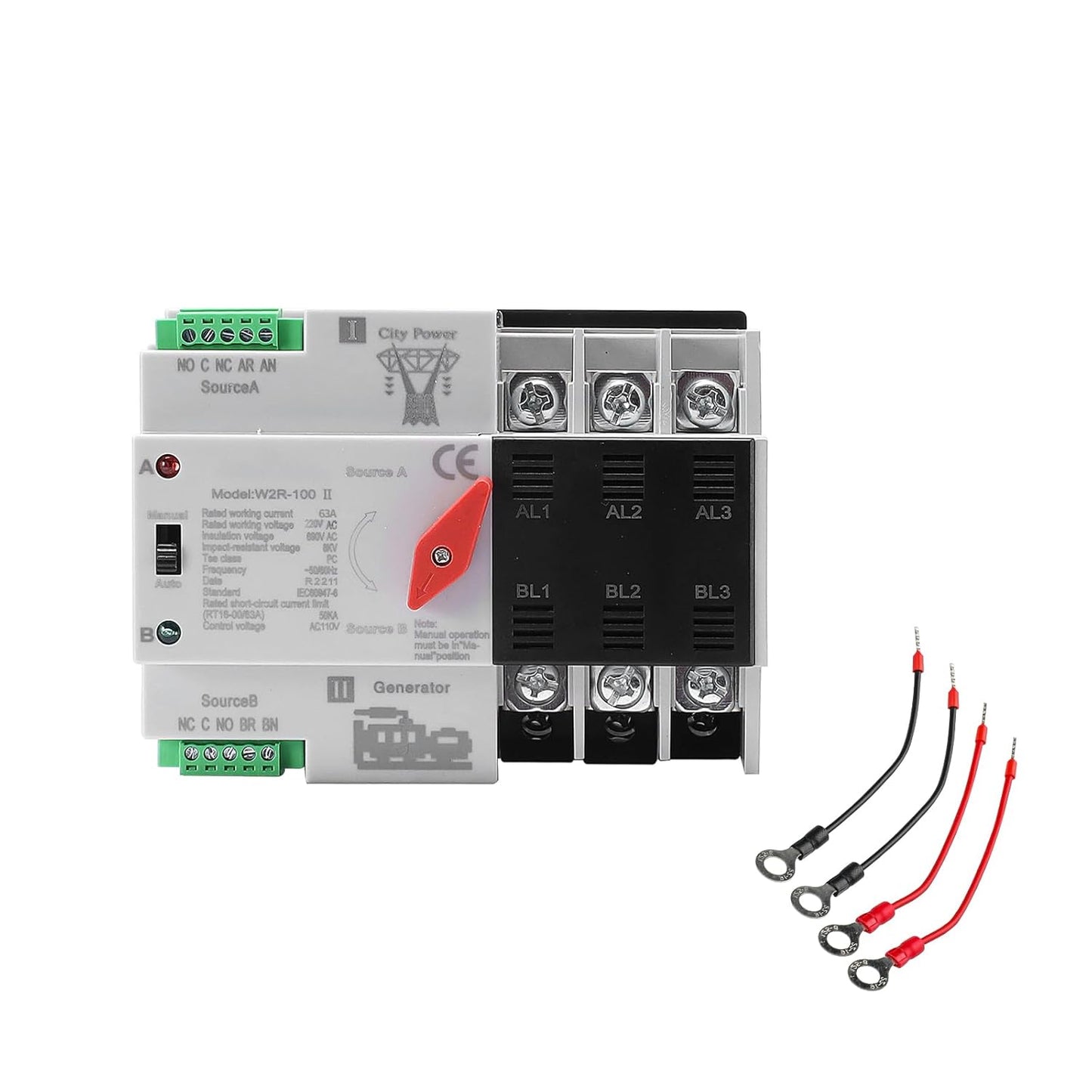

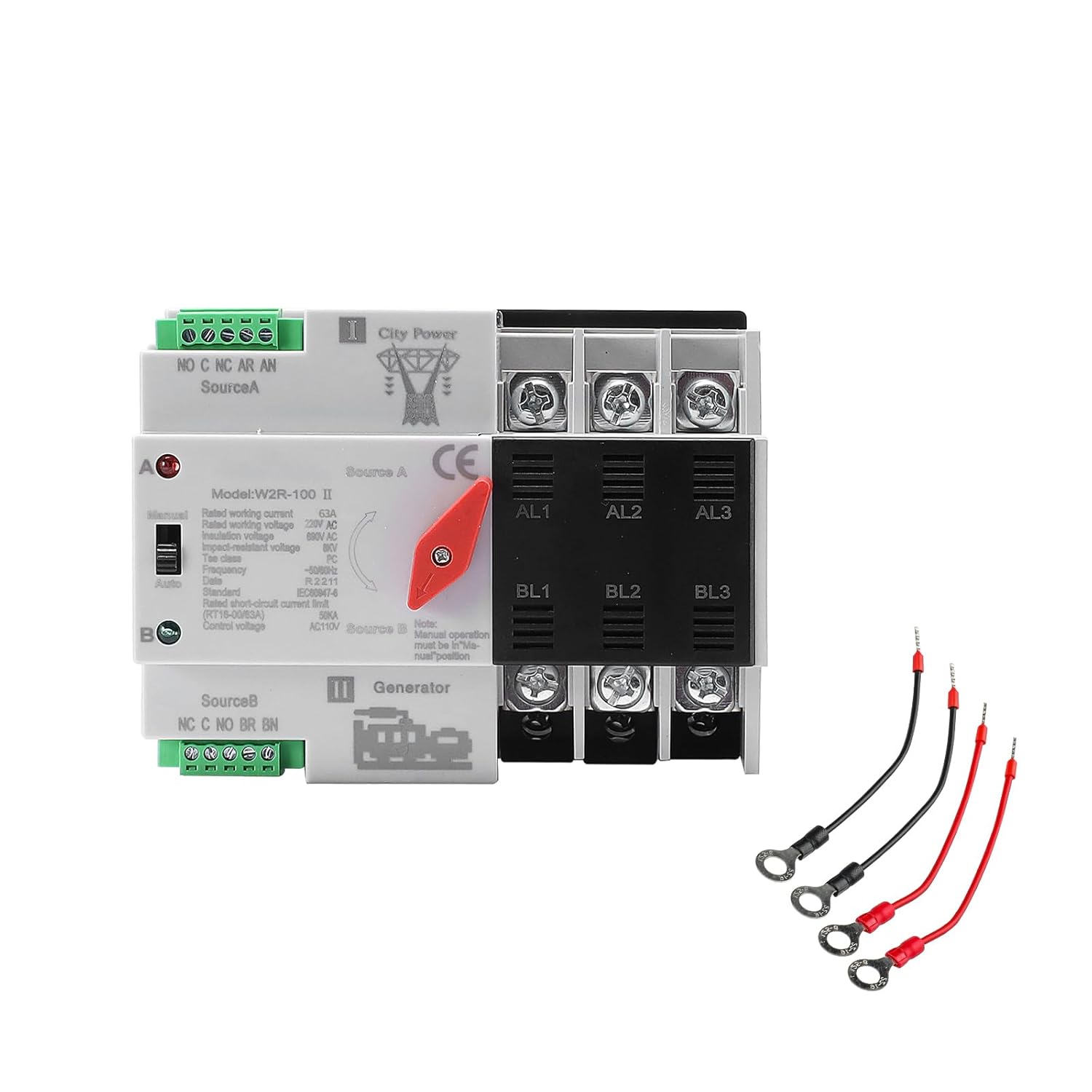

63Amp AC220V 3P Automatic/Manual Transfer Switch - Fast Dual Power

In this review of the 63Amp AC220V Automatic/Manual Transfer Switch, the bottom line is simple: this compact 3-pole transfer switch is built for users who need a fast, dependable automatic changeover between two AC power sources. It is aimed at homeowners, RV owners and small-site operators who must keep critical loads running during mains outages. The unit's key draw is its sub-0.05 second automatic switching and clear LED indication for source status, which together make it easy to trust for continuity of power in sensitive situations.

Key Features

• Automatic fast transfer: The switch transfers to the backup source within 0.05 seconds when the main supply fails, reducing interruption to sensitive equipment.
• Dual automatic and manual modes: A left mode lever selects Auto or Manual, and a right red handle lets the user lock to Source A or B for explicit control when needed.
• LED source indicators: Separate LED lights show which source is active so the operator can confirm status at a glance.
• Voltage protection: Built-in over-voltage and under-voltage thresholds protect connected loads by only switching when voltages are within the expected 220V range.
• DIN rail mount design: Small PA6 housing and rail mount format make it straightforward to install inside distribution boxes or PZ30 enclosures.
• Wide application: Suitable for mains, generator or PV backup configurations for homes, RVs, data rooms and emergency systems that cannot tolerate outages.

Who It's For

This transfer switch is well suited to homeowners, small commercial sites and RV owners who need reliable automatic changeover between mains and a backup generator or photovoltaic source. It is especially useful where short interruptions are unacceptable, such as servers, refrigeration, medical devices and low-temperature storage.

Those who require very high continuous current beyond 63A, integrated remote telemetry, or an enclosure-ready IP-rated outdoor unit should look for a different model, because this unit is a 63A indoor DIN rail device intended for distribution-box mounting.

Pros & Cons

Pros

• Very fast automatic switching minimizes downtime for sensitive equipment.
• Clear manual override and LED indicators make operation and troubleshooting straightforward.
• Compact DIN rail form factor fits standard PZ30 distribution boxes for neat installations.
• Built from heat-resistant PA6 material and backed by a 3-year warranty for added confidence.

Cons

• Rated to 63A which may be insufficient for larger electrical services or high-demand installations.
• Designed for indoor rail mounting; not a weatherproof outdoor enclosure solution without additional housing.

Specifications

Model Type	3P 63A Automatic/Manual Transfer Switch
Rated Current	63A
Voltage	AC 220V, 50/60Hz
Switching Time	Approximately 0.05 seconds
Mounting	DIN rail, PZ30 distribution box compatible
Protection	Over-voltage and under-voltage (undervoltage 175V, recovery 195V)
Material	PA6 thermoplastic housing

Our Verdict

The 63Amp AC220V 3-pole transfer switch is a practical, value-oriented choice for anyone who needs quick, reliable automatic transfer between two AC sources inside a distribution box. Its sub-0.05 second switching, clear LED status and manual override make it a good fit for homes, RVs and small critical sites; just confirm the 63A rating matches your load before buying.

Frequently Asked Questions

Can this unit work with a generator and mains supply?
Yes. Both power inputs can be connected to mains, a generator or a photovoltaic-derived source; the ATS will switch between the two as configured.

Is the unit suitable for outdoor use?
No. It is a DIN rail, distribution box style device made for indoor installation; an appropriate weatherproof enclosure is required for outdoor mounting.

What happens when main power returns?
When the normal source returns within acceptable voltage thresholds, the switch will automatically transfer back to the main supply.
