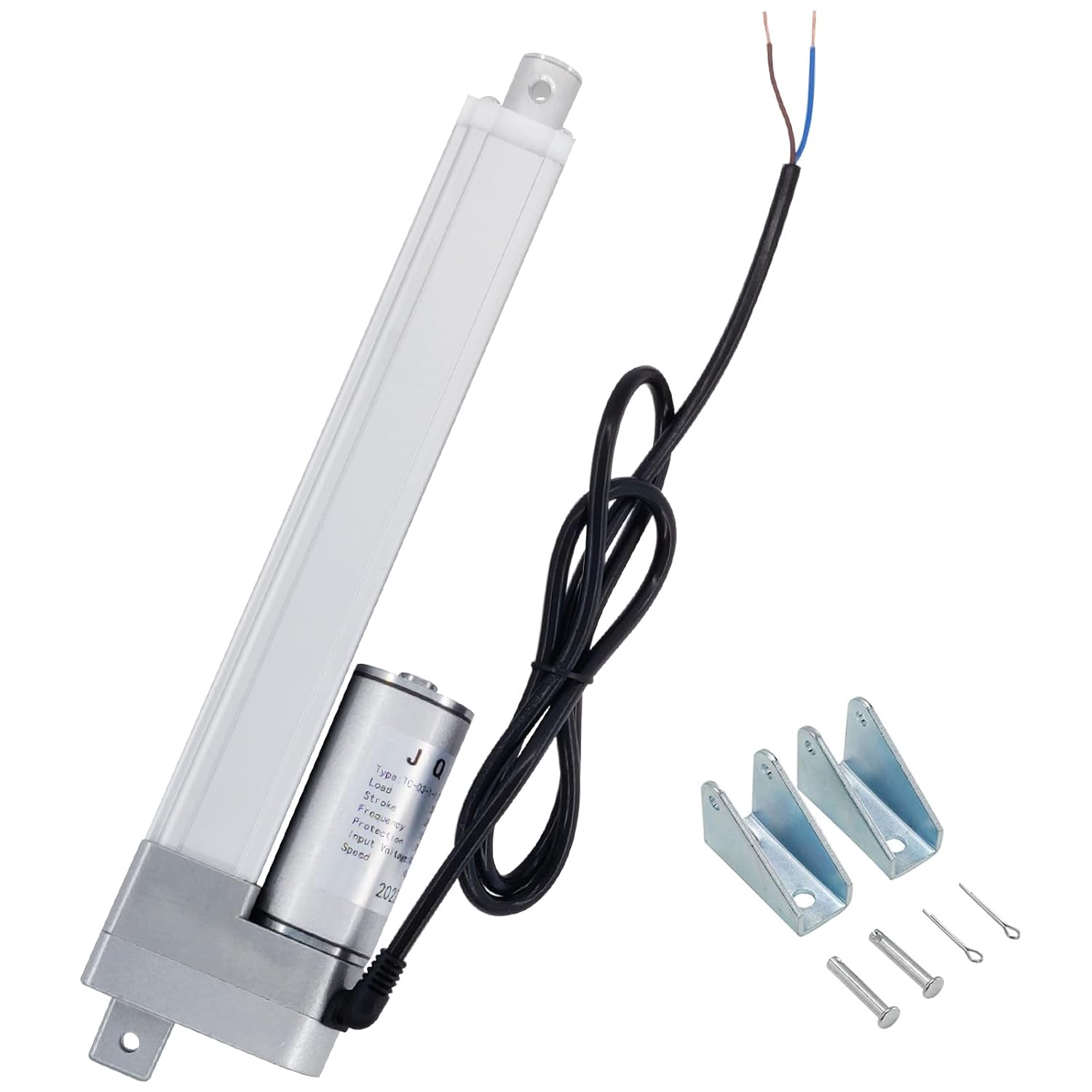

8 Inch Stroke 12V Linear Actuator 300N/66lbs - Fast, Quiet Motion

Our review of the 8 inch stroke 12V linear actuator looks at whether this compact, 300N (66lbs) unit is a practical choice for home automation and light industrial projects. The bottom line: it is best for builders who need a reliable, low-noise actuator with a clear duty profile and simple installation; the standout reason to buy is the combination of a useful 8 in stroke and an IP54 aluminum body that provides robust, quiet operation for window openers, adjustable furniture, and small lifting tasks.

Key Features

• Stroke length: The 8 in (200mm) travel gives a substantial range of motion for window and door opener applications without requiring a long retracted length.
• Load capacity: With a maximum load of 300N (66lbs), it can handle most light lifting and actuation tasks found in home automation and furniture adjustments.
• Built-in limit switches: Automatic stop at top and bottom protects mechanical linkages and simplifies wiring by preventing overrun.
• Low noise: The actuator runs below 50 dB, which makes it suitable for bedroom, living room, and medical applications where quiet operation matters.
• IP54 aluminum construction: A sturdy aluminum alloy body with IP54 protection resists dust and splashing water for reliable indoor and semi-protected outdoor use.
• Mounting convenience: The package includes two mounting brackets so the actuator can be fitted quickly into existing frames or prototypes.

Who It's For

This actuator is well suited to hobbyists, home automation installers, and small-scale OEMs who need a compact 12V unit for window openers, electric sofas, lift systems, or sunroof projects where a mid-range push/pull capacity is enough. Its quiet operation and built-in limits are useful for bedroom, medical bed, or wheelchair retrofit work.

Those who need heavy-duty industrial actuation, very high duty cycles, or IP67-level weatherproofing should look elsewhere; likewise, projects requiring significantly faster travel speeds or loads above 66lbs will exceed this unit's design limits.

Pros & Cons

Pros

• Well built aluminum housing and IP54 rating give dependable durability for indoor and sheltered outdoor use.
• Quiet performance under 50 dB makes it suitable for residential and medical settings.
• Built-in limit switches and included mounting brackets simplify installation and protect mechanisms.
• Good balance of stroke (8 in) and retracted size for many retrofit applications.

Cons

• Maximum load of 66lbs limits use to light-to-moderate tasks rather than heavy industrial loads.
• Speed and current draw are moderate (about 1.18 in/sec and 4.5A) so projects needing very fast or high-duty motion may need a different model.

Specifications

Stroke length	8 in (200mm)
Retracted length	12 in (305mm)
Extended length	20 in (505mm)
Maximum load	300N / 66lbs
Load speed	1.18 in/sec (30mm/s)
Operating voltage & current	DC 12V, load current 4.5A
Protection & material	IP54, aluminum alloy body

Our Verdict

The 8 in stroke 12V linear actuator is a practical, value-oriented choice for home automation, adjustable furniture, and light lift projects where quiet operation and built-in limit switches matter. For anyone needing a compact, reliable 300N actuator with included mounting hardware, it offers sensible performance and durability; choose a different model only if you require much higher load capacity or harsher environmental sealing.

Frequently Asked Questions

Can this actuator be used outdoors?
It has IP54 protection, so it tolerates dust and splashing water but is not rated for full outdoor immersion or continuous exposure to heavy rain.

What voltage and current does it require?
The actuator runs on DC 12V and draws about 4.5A under load, so plan power and wiring accordingly.

Are limit switches included?
Yes; built-in limit switches automatically stop the actuator at fully retracted and fully extended positions.
