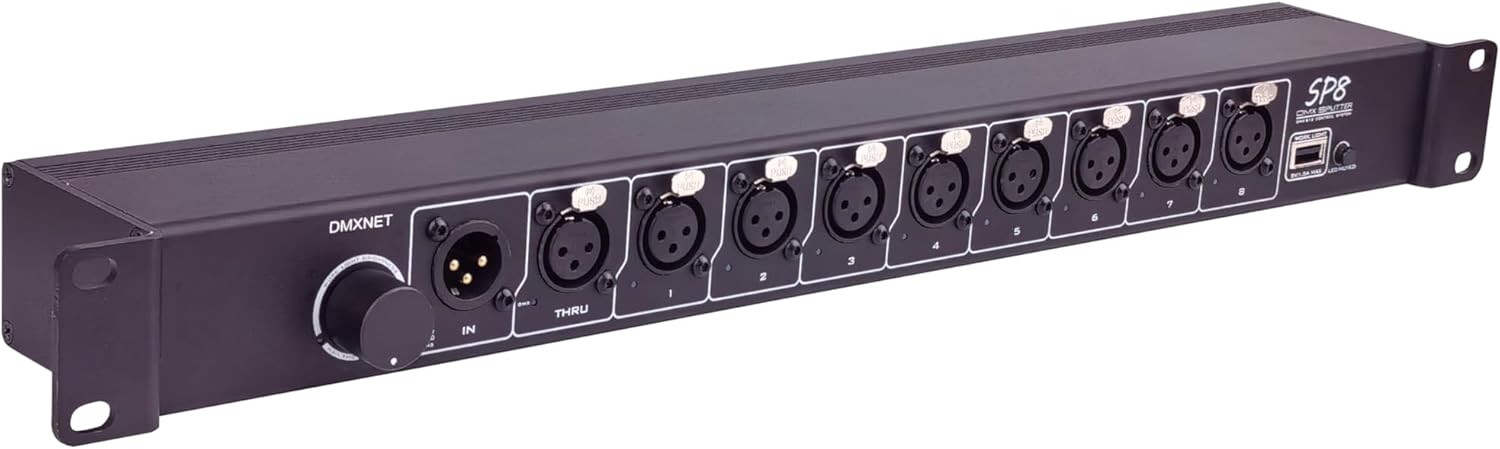

8-port Opto-Isolated DMX Splitter/Amplifier/Isolator - Rackable DMX

In this review of the 8-port Opto-Isolated DMX Splitter/Amplifier/Isolator, the bottom line is simple: this is a compact, workhorse DMX distribution unit for small to mid-size live sound and lighting rigs that need reliable isolation and straightforward monitoring. It shines where signal integrity matters, offering optical isolation on every output and clear LED feedback so a tech can spot issues quickly. The included USB-adjustable work light and reversible rack ears add practical convenience that makes setup and troubleshooting faster in cramped racks and dark venues.

Key Features

• Opto-isolated outputs: Each of the eight outputs is optically isolated, protecting downstream fixtures and preventing a fault on one line from affecting others.
• High isolation voltage: Isolation rated up to 1500V reduces ground loop risk and improves signal stability in complex stage environments.
• Built-in monitoring LEDs: Individual input and output LEDs display DMX activity so you can identify signal presence and per-channel behavior at a glance.
• USB-adjustable work light: A supplied work light plugs into the onboard USB port and its brightness is adjustable from the front knob for rack-side maintenance in dark venues.
• Rack-friendly design: The 1U 19 in rack width, reversible rack ears and 0.8kg weight make it easy to mount or transport for touring and rental use.
• Termination and protection: Front-access 120R termination for the input and a manual resettable 10A fuse add practical protection for the control chain.

Who It's For

This unit is best for lighting technicians, small production companies, and venues that run multiple fixtures from a single DMX universe and need reliable isolation to prevent noise and grounding issues. The clear LED indicators and adjustable work light make it handy for on-stage troubleshooting and patching during load-ins.

It is less suited for engineers who require RDM support or very large-scale distribution across many universes; those users will want a dedicated multi-universe console or splitter system with RDM and more advanced routing features.

Pros & Cons

Pros

• Robust per-port optical isolation up to 1500V helps prevent ground loops and keeps signals stable.
• Clear input and per-output LED indicators make fault-finding and confirmation fast during setup.
• USB work light with brightness control and reversible rack ears add practical convenience for live use and transport.

Cons

• Does not support RDM, so remote device management and parameter querying are not available.
• USB port is only for the work light and does not charge other devices, limiting USB utility.

Specifications

Power input	100-240VAC, 50/60Hz via 2x PowerCON (1 in, 1 out)
Input/Output connectors	1x3-pin Male XLR input, 1x3-pin Female XLR loop, 8x3-pin Female XLR outputs
Isolation	Optical DMX isolation per channel, up to 1500V
Indicators	Input signal LED and 8 separate output signal LEDs
USB	5VDC/1.5A port for included adjustable work light (not for device charging)
Dimensions	485 x 92 x 44 mm (W x D x H), 1U rack width
Weight	0.8 kg

Our Verdict

The 8-port opto-isolated DMX splitter is a practical, well-priced utility for stage and club environments where signal isolation and simple diagnostics matter. It delivers solid protection, clear visual feedback and useful rack-friendly touches like a USB work light and reversible ears, making it good value for techs who need dependable single-universe distribution without RDM complexity.

Frequently Asked Questions

Does this device support RDM?
Answer: No, RDM is not supported; the unit focuses on opto-isolation and distribution for a single DMX universe.

Can the USB port charge phones or power other equipment?
Answer: No, the USB port is intended for the included work light and provides 5V/1.5A only for that purpose.

Is termination available on the unit?
Answer: Yes, a 120R termination can be added to the input port to properly terminate a DMX chain.
