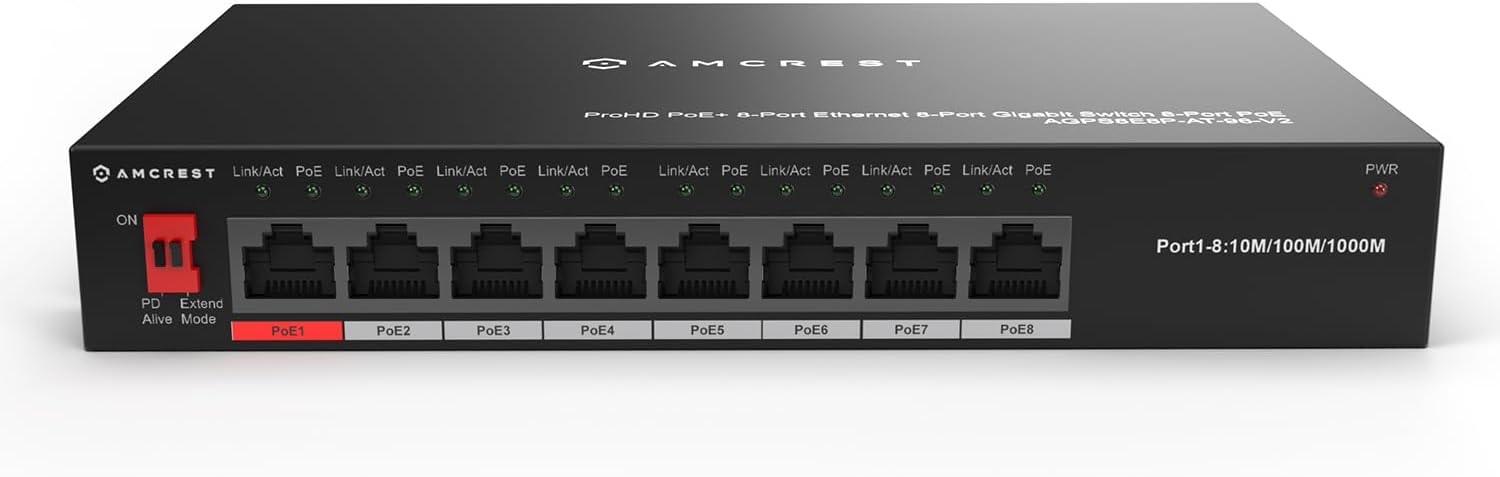

8-Port POE+ Power Over Ethernet Switch - Compact 96W Desktop

In this review the focus is on a compact, metal-housed 8-port PoE+ switch aimed at small office, home surveillance, and SMB networking setups. The main reason to consider this unit is straightforward: it delivers reliable Power over Ethernet across eight gigabit ports with a combined 96W budget and one Hi-PoE port capable of up to 60W, making it a practical choice when a mix of high-power and standard PoE devices need a simple, plug-and-play feed.

Key Features

• 8 x Gigabit PoE Ports: Eight 10/100/1000Mbps PoE ports let you connect cameras, access points, and other devices at full gigabit speeds for better network performance.
• Hi-PoE on Port 1: Port 1 supplies up to 60W to support a single high-power device such as a PTZ camera or other 60W class equipment without needing an external injector.
• PoE+ Support: Ports 2-8 each provide up to 30W under IEEE 802.3at, enabling modern PoE+ devices to operate reliably from the switch.
• Layer 2 Management: Basic layer 2 features and MDIX self-adaptation simplify integration into existing networks and reduce manual port configuration needs.
• Durable Metal Housing: A compact metal desktop case with LED indicators and mounting hole options gives a sturdy footprint for rackless or wall-mounted deployments.
• Wide Operating Range: The switch runs from 48-57V DC and operates between -14F and 131F, making it suitable for many indoor and sheltered environments.

Who It's For

This unit suits small businesses, installers, and homeowners who need to power multiple PoE cameras, wireless access points, or VoIP phones without running separate power. The single Hi-PoE port is helpful when one device needs significantly more power, while the other seven PoE+ ports cover standard devices.

It is not targeted at enterprise core switching or large data center environments where advanced management, larger MAC tables, or higher PoE budgets are required. Users who need full layer 3 routing, extensive VLAN/ACL controls, or a higher overall PoE wattage should look for managed switches with those capabilities.

Pros & Cons

Pros

• Solid build quality and compact metal housing make it durable for desktop or wall use.
• Powerful PoE distribution: one Hi-PoE 60W port plus seven PoE+ ports within a 96W total budget.
• Plug-and-play operation with LED indicators and MDIX self-adaptation simplifies setup.
• Operates across a wide temperature range for flexible placement indoors and in sheltered locations.

Cons

• Limited total PoE budget (96W) means powering many high-draw devices simultaneously may require planning.
• Not a full layer 3 switch, so advanced routing and enterprise management are absent.

Specifications

Ports	8 x 10/100/1000Mbps PoE ports
PoE Power	Port 1 <60W; Ports 2-8 <30W each; Total <96W
PoE Protocol	IEEE 802.3af / IEEE 802.3at (PoE+), Hi-PoE
Switching Capacity	20Gbps
Packet Buffer	1.5Mb
MAC Table Size	8K
Power Input / Temp	DC 48-57V / -14F to 131F

Our Verdict

This compact 8-port PoE+ switch is a practical, value-oriented choice for small surveillance and network extension projects where one high-power device and several PoE+ peripherals need reliable feed without extra injectors. Its metal housing, gigabit ports, and straightforward plug-and-play behavior make it a sensible buy for installers and small teams, provided the 96W total budget matches the intended device mix.

Frequently Asked Questions

Can this power a PTZ camera?
Yes; Port 1 supports Hi-PoE up to 60W which covers many PTZ cameras that require higher power.

Is this switch managed for VLANs and routing?
No; it is a Layer 2 switch with basic management features, suitable for simple networks rather than advanced routing tasks.

Does it include mounting options?
The compact metal unit includes LED indicators and has mounting holes reported by some users for wall or under-desk mounting, though feedback on mounting hardware is mixed.
