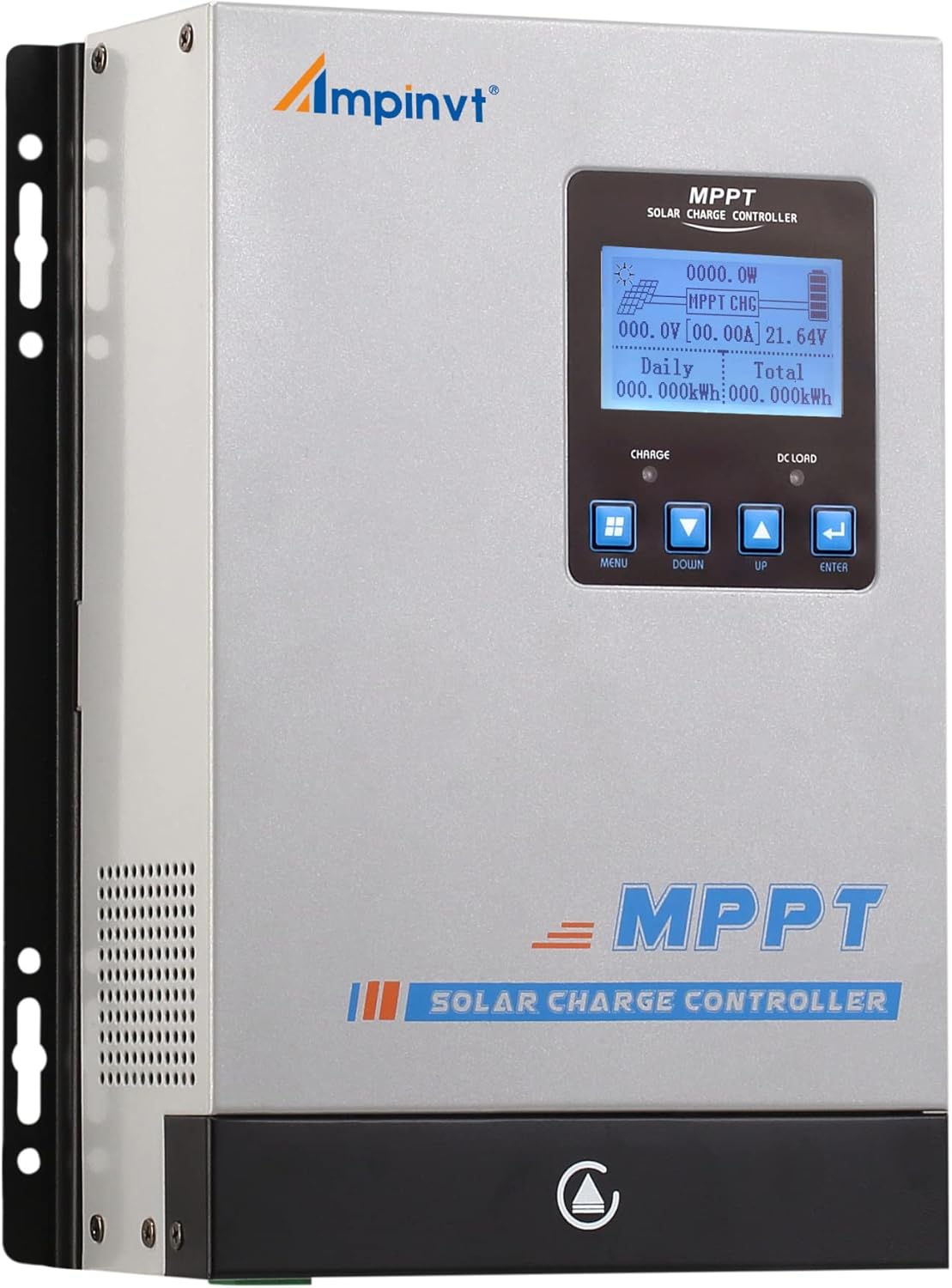

80 Amp MPPT Solar Charge Controller 48V 36V 24V 12V Auto - High

In this review of the 80 Amp MPPT Solar Charge Controller, the bottom line is that this regulator is best for hobbyists and small off-grid systems that need a high-capacity MPPT unit with flexible battery support. It stands out for its wide MPPT operating ranges and high conversion efficiency, which make it a sensible pick when you want to maximize solar harvest from panels up to the controller's rated input power. The review looks at usability, build quality, monitoring options and real-world tradeoffs observed by users.

Key Features

• High input capacity: Supports large PV arrays up to 1140W at 12V and up to 4540W at 48V, allowing connection of significant solar power for multi-voltage systems.
• Wide MPPT range: Best working voltage windows for 12V, 24V and 48V systems help the controller find maximum power across a broad array of panel configurations.
• Battery compatibility: Built-in charging profiles for sealed, AGM, gel and flooded lead-acid and a user setting for lithium batteries cover most common battery chemistries.
• Clear LCD and statistics: The controller shows real-time energy statistics, daily generation curves and current curves so performance can be tracked without extra tools.
• Power limiting and safety: Auto control limits prevented the unit from exceeding rated charging current and power, protecting the regulator and batteries in varied conditions.
• Remote monitoring option: R5485 communications enable Wi-Fi remote monitoring via an app if a wireless module is purchased separately, adding convenience for off-site oversight.

Who It's For

This controller is aimed at RV owners, small household off-grid setups and light commercial monitoring installations that need an MPPT solar charge controller with high input capability and multi-chemistry battery support. Installers who want an LCD display showing daily power curves and the flexibility to work across 12V, 24V, 36V and 48V systems will appreciate the feature set.

It is less suited to users who need built-in wireless monitoring out of the box or those who require guaranteed plug-and-play compatibility with a specific battery management system; remote monitoring requires an additional module, and a small number of customers reported challenges with setup or battery voltage behavior that may require extra troubleshooting.

Pros & Cons

Pros

• High maximum conversion rate and a 99% tracking rate deliver strong energy harvest from panels.
• Supports multiple battery types and an automatic system voltage detection for 12V/24V/48V.
• Robust build quality and a clear LCD make everyday use and monitoring straightforward.

Cons

• Remote Wi-Fi monitoring requires an additional purchase rather than being included.
• A few users reported mixed results on charging consistency and battery voltage matching, indicating some setups may need tuning.

Specifications

Model Type	80 Amp MPPT Solar Charge Controller
Supported System Voltages	12V / 24V / 36V / 48V auto-identifying
Max Input Voltage	150V PV
Max PV Input Power	1140W(12V) 2260W(24V) 3420W(36V) 4540W(48V)
MPPT Working Ranges	DC18-80V(12V), DC30-100V(24V), DC65-150V(48V)
Battery Types Supported	Sealed, AGM, Gel, Flooded lead-acid; User profile for Lithium
Monitoring	LCD display with real-time stats; optional Wi-Fi via R5485 module

Our Verdict

The 80 Amp MPPT controller is a practical, good-value choice for those building medium to large off-grid or mobile solar systems who need flexible voltage support and strong MPPT performance. It pairs well with multi-panel arrays and common battery banks, but buyers should budget for the optional Wi-Fi module if remote monitoring is important and be prepared to adjust settings if battery voltage behavior differs from expectations.

Frequently Asked Questions

Does this controller work with lithium batteries?
Yes, it includes a user-configurable charging profile that can be set for lithium battery use.

Is Wi-Fi monitoring included?
No, wireless monitoring requires the separate R5485 communication module for app-based remote access.

What is the maximum PV input voltage?
The controller accepts up to 150V PV input, with specific MPPT operating ranges depending on system voltage.
