82 Degree Countersink with Drill Bit Depth Stop - Precision Depth

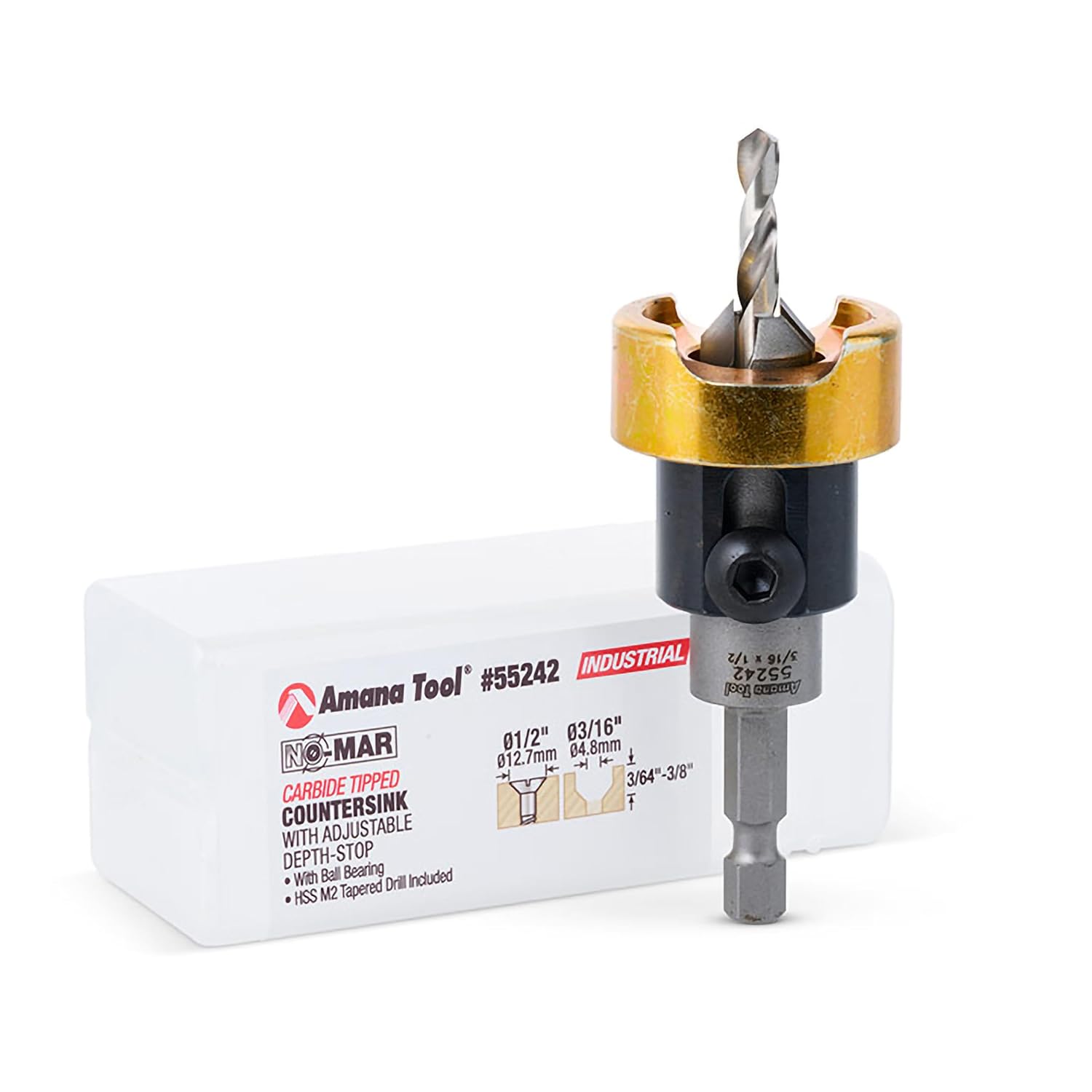

In this review the Amana Tool 82 Degree countersink with a 3/16 in drill and 1/2 in countersink diameter is evaluated for woodworkers, deck installers, and fabricators who need clean, repeatable countersinks without surface damage. The single biggest reason to buy is its adjustable revolving depth stop combined with a no-thrust ball bearing, which lets users set countersink depth quickly and reliably while avoiding burning or marring on delicate surfaces like acrylic and finished wood.

Key Features

• 82 degree countersink: Provides the standard conical seat needed for most flathead screws and ensures consistent screw seating across materials.
• Adjustable revolving depth-stop: Lets the user dial in precise countersink depth so repeatable results are achieved without repeated test cuts.
• No-thrust ball bearing: Prevents scratching and burning by allowing the depth collar to rotate independently of the cutting head during entry and exit.
• Carbide tipped cutter: Delivers long-lasting edge life and cleaner cuts in abrasive materials such as composite decking and ACM panels.
• HSS M2 slow spiral drill: The included fully ground drill bit aids fast pilot holes and effective chip removal for woods, plastics, and non-ferrous metals.
• Quick release 1/4 in hex shank: Fits common quick-change chucks for rapid bit swaps and compatibility with impact drivers and drills.

Who It's For

The tool is aimed at hobbyist to professional woodworkers, deck installers, and fabricators who need a dependable countersink for materials like natural wood, MDF, plywood, acrylic, aluminum and composite decking. If you install a lot of 3 in deck screws or work with delicate surfaces that show marring easily, the depth-stop and no-thrust bearing are particularly valuable.

Those who frequently bore dozens of holes per day in hardened steels or require a wide range of countersink sizes to cover many screw heads should consider a more comprehensive set or specialty countersinks, because this single-size bit covers a specific 1/2 in countersink and 3/16 in pilot drill profile.

Pros & Cons

Pros

• Adjustable depth-stop and no-thrust bearing give excellent depth control and prevent marring on finished surfaces.
• Carbide tipped cutter and HSS M2 pilot drill deliver clean cuts and good edge life for wood, acrylic, and aluminum.
• Quick release 1/4 in hex shank speeds up bit changes and works with standard quick-change chucks.

Cons

• Durability concerns have been reported with breakage after many uses, so heavy industrial use may require spare bits.

Specifications

Our Verdict

The Amana Tool 82 degree countersink is a practical, well-designed option for users who need precise, repeatable countersinks without marring work surfaces. Its carbide tip and HSS pilot make it versatile for wood, plastics, and non-ferrous metals, and the depth-stop system adds real time savings on repetitive jobs. It represents good value for contractors and serious hobbyists, though high-volume users should plan for spare bits over time.

Frequently Asked Questions

Will this bit work on aluminum?
Yes; the carbide tip and HSS M2 pilot are suited for aluminum and other non-ferrous materials when used at appropriate speeds.

Does the depth stop prevent burning?
The no-thrust ball bearing allows the collar to rotate and reduces scratching and burning during countersinking, helping protect finished surfaces.

Is the pilot drill replaceable?
The design allows the pilot drill to be replaced, letting you maintain cutting performance without replacing the entire countersink when the drill wears.
