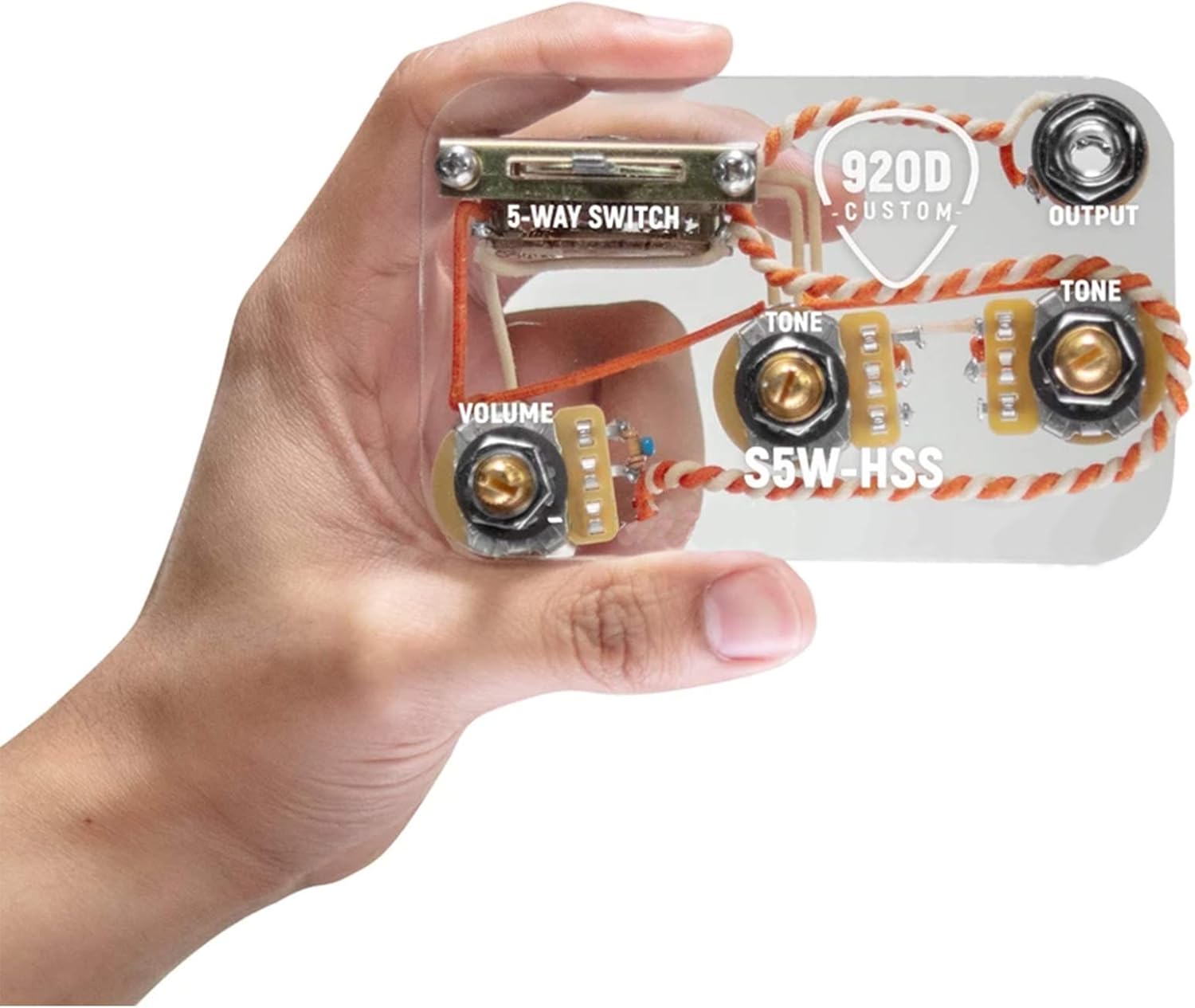

920D Custom S5W-HSS Stratocaster 5-way Super Switch Wiring Harness

In this review the 920D Custom S5W-HSS wiring harness is evaluated for HSS Strat owners who want a cleaner, faster electronics upgrade without extensive soldering. The bottom line: this kit is built to simplify installation and improve tone by combining quality CTS pots, Orange Drop capacitors and a Pure Tone jack into a preinstalled harness that preserves proper voicing for single-coils and the humbucker. Installers who value neat, meter-tested assembly and predictable results will appreciate how much time and fussy wiring this harness saves.

Key Features

• Preinstalled harness: The harness comes fully assembled so the need for soldering is greatly reduced and installation is faster and cleaner.
• Mixed pot values: The kit uses 250k for single-coil control and 500k for the humbucker to tame highs on single-coils while retaining humbucker articulation.
• Quality components: 450G CTS pots and Orange Drop capacitors provide consistent tone and long term reliability compared with cheaper parts.
• Modern output jack: The Pure Tone jack reduces crackle and hum by increasing contact points between cable and instrument.
• Comprehensive kit: Includes a 5-way Super Switch, multiple capacitors and resistors so it is compatible with vintage and modern setups without extra purchases.
• Meter tested: Every kit is tested before assembly to ensure continuity and reliable function out of the box.

Who It's For

The 920D S5W-HSS harness is ideal for guitarists and techs who want to upgrade HSS electronics with minimal soldering and predictable results, especially players who switch between vintage-style single-coil tones and fuller humbucker sounds. It suits those who value neat wiring, solid component choices and a straightforward installation that preserves tonal balance.

Players who prefer completely custom wiring diagrams or nonstandard component values might look elsewhere, as this kit is built around a specific S5W-HSS approach and includes the selected pots, caps and resistors intended for general HSS use.

Pros & Cons

Pros

• Preinstalled harness greatly reduces soldering and speeds installation for hobbyists and techs.
• Well selected components like CTS pots and Orange Drop caps improve clarity and consistency of tone.
• Pure Tone jack and meter testing reduce common noise and reliability issues out of the box.
• Resistor and cap selection offers compatibility with both vintage and modern tonal preferences.

Cons

• Limited flexibility for players wanting unconventional wiring or nonstandard component values without modification.

Specifications

Brand	920D Custom
Configuration	S5W-HSS 5-way Super Switch harness
Pots included	1 x 450G 250k CTS, 2 x 450G 500k CTS
Capacitors	.022uF and.047uF Orange Drop, 680pF ceramic
Additional parts	1 x 5-way Super Switch, 1 x Pure Tone output jack, resistors (150K, 2 x 470k)
Assembly	Preinstalled in a harness, meter tested

Our Verdict

The 920D Custom S5W-HSS harness is a practical, value-forward upgrade for HSS Stratocaster owners who want better tone and less messy installation. With quality CTS pots, Orange Drop caps, a Pure Tone jack and preinstalled wiring, it delivers predictable improvements in noise control and tonal balance, making it a smart buy for DIYers and techs who want professional results without rebuilding the control cavity from scratch.

Frequently Asked Questions

Does this kit require soldering?
Because the kit is preinstalled in a harness, soldering is greatly reduced; some connections to pickups or grounds may still require minimal soldering depending on your guitar.

Will this change my guitar tone?
Yes; the mixed 250k/500k pot setup tames highs on single-coils while preserving humbucker clarity, and the higher quality caps and pots produce a cleaner, more consistent response.

Is the harness compatible with vintage and modern setups?
Yes; the included resistors and capacitor selection are intended to support both vintage-voiced and modern tones without additional parts.
