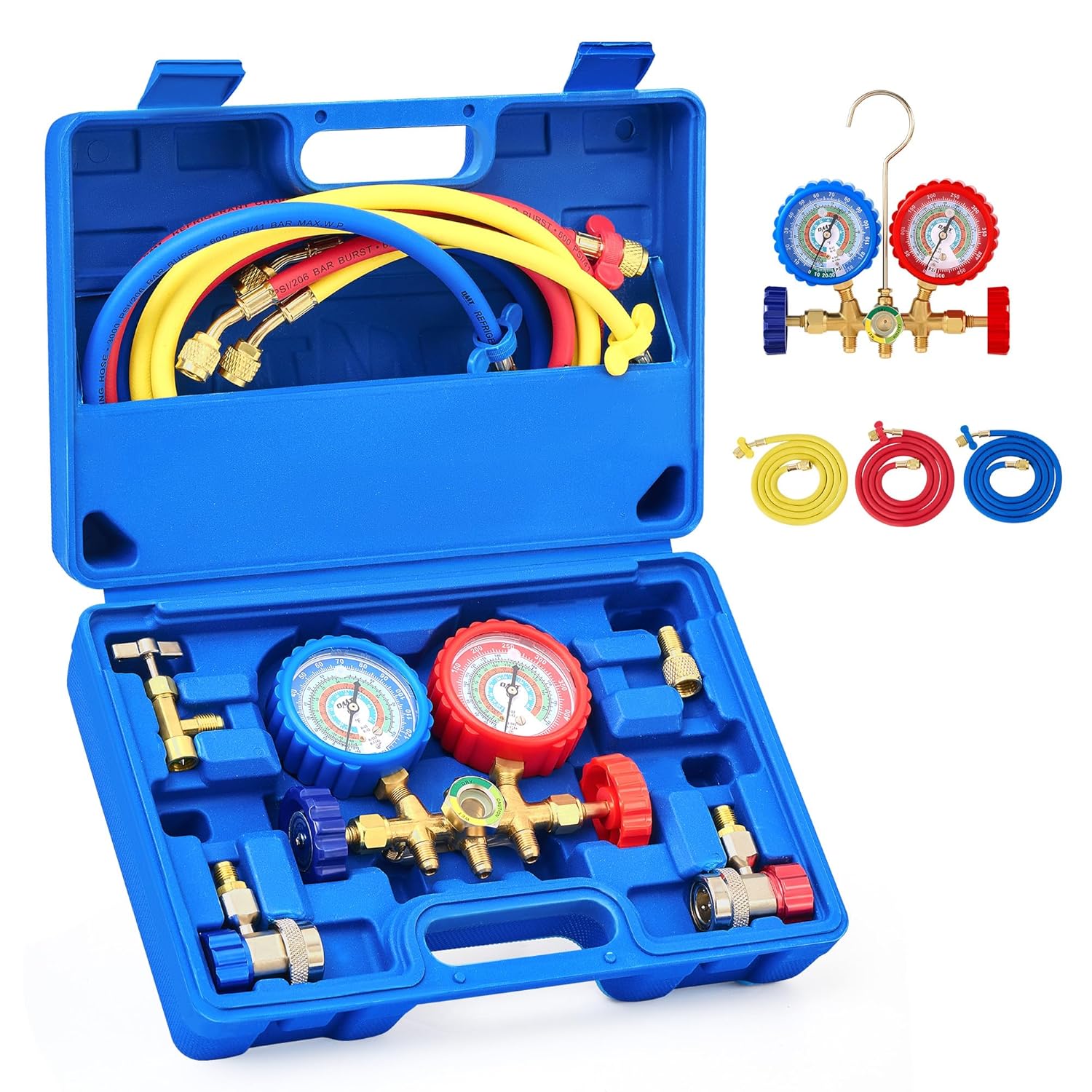

AC Manifold Gauge Set for R134a R12 R22 R502 - Complete Recharge Kit

In this review the Orion Motor Tech AC gauge set is evaluated for DIYers and small-shop technicians who need a complete, budget-friendly manifold kit. The main reason to buy is that it combines a full complement of connectors and hoses with hybrid antishock gauges, letting a user measure, evacuate and recharge common refrigerants without buying separate parts. The set is practical for routine automotive HVAC checks and simple repairs, and it delivers a clear value proposition when a single kit that handles R134a, R12, R22 and R502 is required.

Key Features

• Complete gauge set: The kit includes a 3-way gauge, three color-coded hoses, adjustable 1/4' quick couplers, a 1/4' to 1/2' 29 trap adapter and a puncture-style can tap so users can start service right away without sourcing extra fittings.
• Hybrid antishock gauges: The 2.6' high and low pressure gauges blend an oil-filled core for wear and shock resistance with a dry dial for reliable cold-weather performance.
• Durable construction: Built from solid brass, ABS and rubber components, the manifold and couplers are intended for repeated heavy-duty use in a workshop or garage setting.
• Color-coded hoses: Blue low, red high and yellow charging hoses with four reinforced PVC layers handle daily pressures up to 600 psi and make connections and operation simple to follow.
• Moisture indicator: The included moisture indicator lets technicians monitor coolant condition in real time to spot contamination or moisture issues before major service.

Who It's For

This set is best for DIY mechanics and mobile technicians who perform common automotive AC tasks like checking system pressure, evacuating and refilling refrigerant, and diagnosing leaks on systems using R134a, R12, R22 or R502. The complete kit and included can tap mean fewer trips to the parts store when doing a standard recharge job.

Professionals who need laboratory-grade, leak-free couplings under heavy continuous use may want a higher-end manifold with service-proven fittings; some buyers have reported connection and leakage issues with high-pressure couplings, so shops that must avoid any downtime should consider that limitation.

Pros & Cons

Pros

• Comprehensive kit covers charge, test and service with hoses, adapters and a puncture can tap.
• Hybrid antishock gauges resist shock and perform better in cold conditions than pure dry dials.
• Solid materials like brass plus a moisture indicator give practical durability and useful diagnostics.
• Color-coded hoses and reinforced construction make everyday use straightforward and safer.

Cons

• Some users report connection quality issues and leakage, particularly with the high-pressure coupling, so fittings should be checked before critical jobs.

Specifications

Product type	3-way automotive AC manifold gauge set
Refrigerants	R134a, R12, R22, R502
Gauges	2.6' high and low pressure hybrid antishock gauges
Hoses	3 color-coded PVC hoses (blue, red, yellow), 4 reinforced layers
Couplers and adapters	2 adjustable 1/4' quick couplers and 1/4' to 1/2' 29 trap adapter
Additional tool	Puncture-style can tap for recharging
Accuracy	Calibration screws for about 1.6% accuracy

Our Verdict

The Orion Motor Tech AC manifold gauge set is a solid, economical choice for home mechanics and small shops who need a ready-to-use kit for common refrigerants. It offers durable materials, a useful moisture indicator and hybrid gauges that balance shock resistance with cold-weather performance. Buyers should inspect couplings before heavy use, but overall it represents good value for routine HVAC maintenance and recharges.

Frequently Asked Questions

Does this kit work with R134a?
Yes, the set is compatible with R134a as well as R12, R22 and R502 refrigerants.

Are the hoses high pressure rated?
The PVC hoses have four reinforced layers and are rated for daily pressures up to 600 psi with a 3000 psi burst pressure listed for durability.

Is the kit ready to use out of the box?
Yes, it includes gauges, hoses, quick couplers, an adapter and a puncture can tap so most users can begin basic service immediately.
