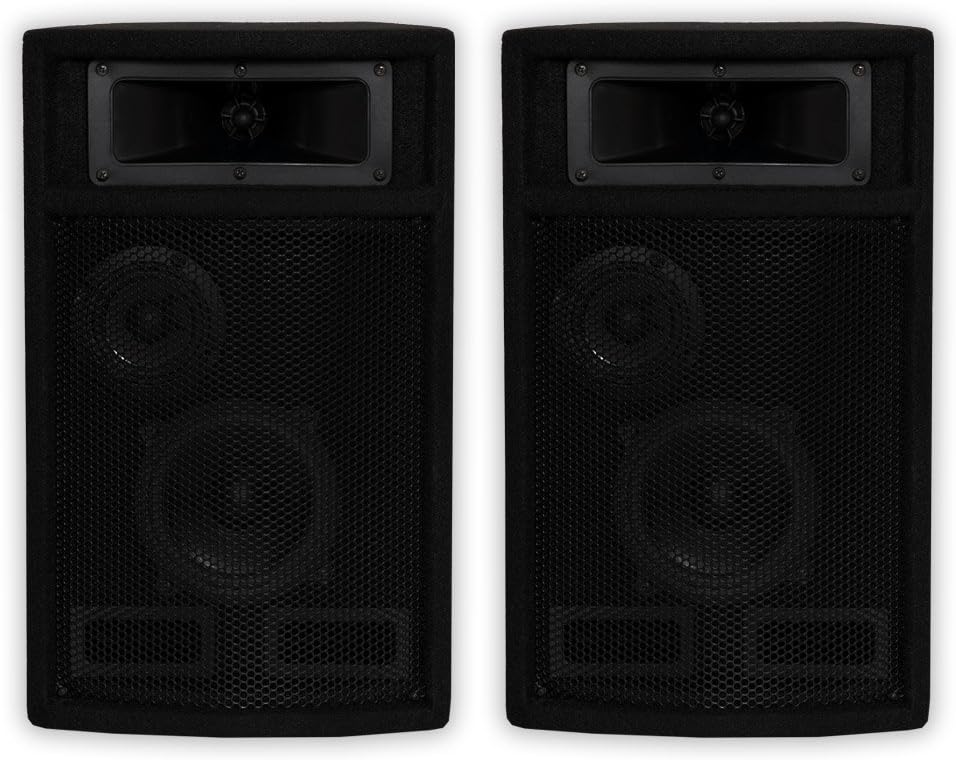

Acoustic Audio PA-500X Passive 3-Way Speakers - Affordable PA Power

In this review the Acoustic Audio PA-500X passive 3-way speaker pair is evaluated for DJs, small venues and home karaoke setups that need straightforward, budget-friendly full range sound. The biggest reason to consider this pair is the simple, old-school passive design: these speakers are driven by any amp or receiver with raw speaker wire or 1/4 in outputs, delivering clear midrange and surprising low-end for their size without requiring powered cabinets or DSP. They are a practical choice when affordability and basic reliability matter more than studio-grade precision.

Key Features

• Passive 3-way design: The tweeter, midrange and woofer with an internal crossover provide broad frequency coverage for vocals and instruments without an active crossover box.
• Deluxe woofer and midrange: A 5 in woofer and 3.5 in midrange with polypropylene coated laminate cones produce durable cone motion and natural mid-bass presence for small to medium rooms.
• High temperature voice coil: The 1 in Kapton voice coil adds heat tolerance and reliability when driven by higher amplifier output within the recommended range.
• Flexible connections: Banana plug, raw speaker wire and 1/4 in jack inputs allow easy hookup to a wide range of amps and daisy chaining to another passive speaker.
• Portable cabinet: CARB-compliant MDF wedge cabinet with carpet and handles gives a tough, transportable enclosure that fits stage stands via the 1.375 in pole mount.

Who It's For

These speakers are aimed at DJs on a budget, small bands, karaoke hosts and anyone building a simple PA where an external amplifier is preferred. The full range 3-way layout and 96 dB sensitivity make them suitable for small venue PA and rehearsal rooms where portability and easy hookup matter.

Those who need powered speakers, built-in amplification, advanced EQ or very high SPL for large outdoor stages should look elsewhere. Likewise, critical studio monitoring users who require flat, reference-grade response will find these tuned more for live use than nearfield mixing.

Pros & Cons

Pros

• Good value and solid build quality with a durable carpeted MDF cabinet and metal grill.
• Clear midrange and usable low-end for small to mid volumes thanks to the 3-way driver layout and tuned ports.
• Flexible hookup options including banana plugs, raw wire and 1/4 in jack make system integration simple.

Cons

• As passive speakers they require a separate amplifier and are dependent on correct power matching; some users reported reliability issues after light use.

Specifications

Configuration	Passive 3-way (tweeter, midrange, woofer)
Woofer	5 in polypropylene coated laminate cone
Midrange	3.5 in polypropylene coated laminate cone
Voice Coil	1 in Kapton high temperature
Frequency Response	50 Hz - 20 kHz
Sensitivity / Impedance	96 dB at 8 ohm
Cabinet	CARB compliant MDF wedge with carpet, metal grill and pole mount

Our Verdict

The PA-500X pair is a sensible, budget-conscious choice for small PA setups, karaoke and portable DJ rigs that already use an amplifier. They deliver competent, full range sound and flexible connections in a durable cabinet, offering strong value for those who accept the need for an external amp and modest tradeoffs in long-term reliability compared with higher-end systems.

Frequently Asked Questions

Do these speakers need an amplifier?
Yes, the PA-500X are passive and require any amp or receiver with raw speaker wire or 1/4 in outputs; recommended power is 20 to 800 watts per channel.

Can I use them for karaoke and DJing?
Yes, they are well suited to karaoke, DJs and small PA gigs thanks to the 3-way coverage and pole mount compatibility.

What connections are available?
They include banana plug binding posts, raw speaker wire inputs and a 1/4 in jack for chaining to another passive speaker.
