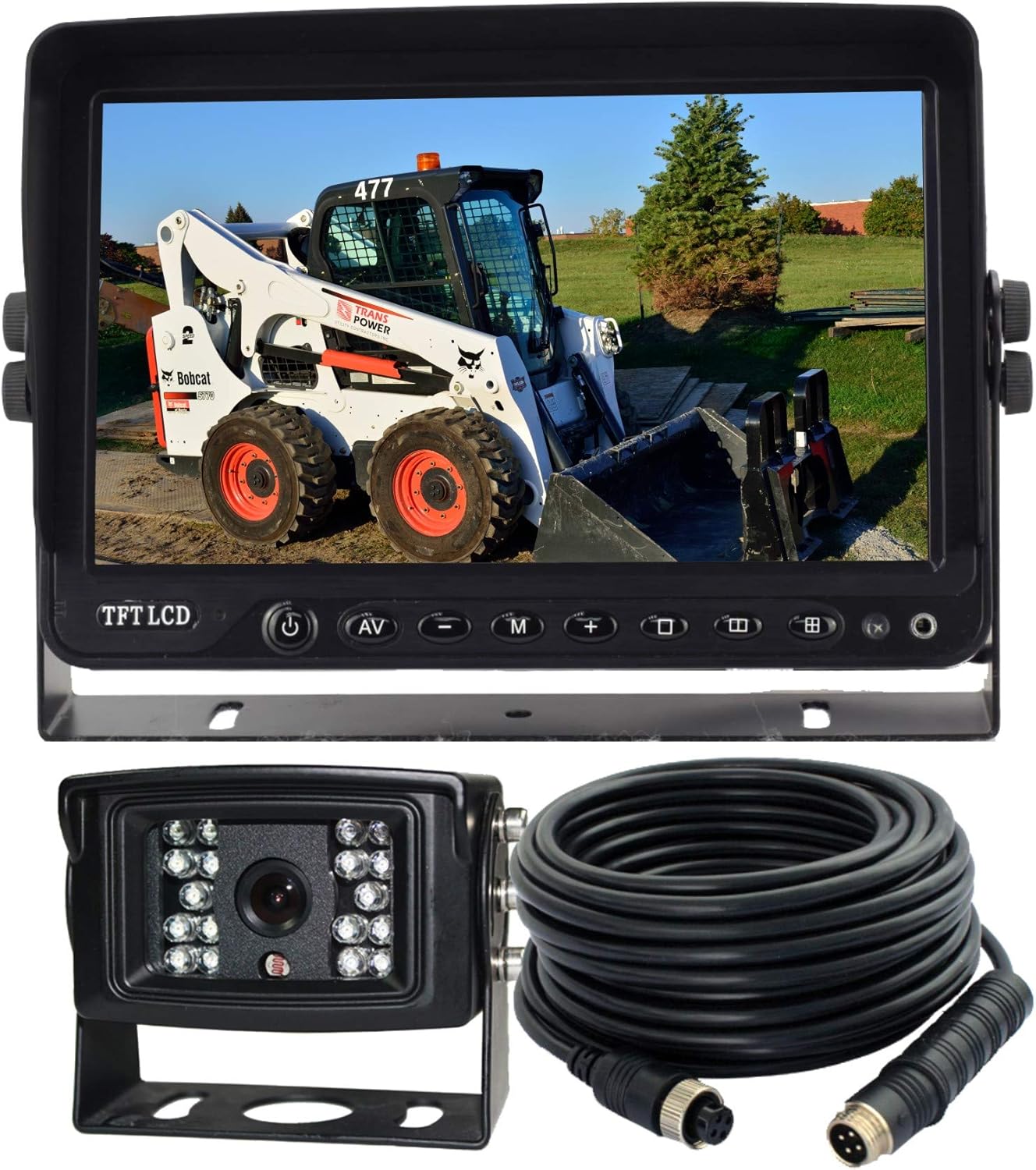

AHD 1080P 7ft Reverse Rear View Backup Camera System - Rugged 10G

In this review of the AHD 1080P 7' reverse rear view backup camera system, the bottom line is simple: this wired kit is built for large vehicles and harsh conditions. It is best for owners of tractors, trucks, buses, motorhomes and heavy equipment who need a clear, low-latency color image and a camera that tolerates heavy vibration and extreme weather. The most convincing reason to buy is its industrial focus: IP69K waterproofing, 10G vibration-proof construction and a wide DC10-36V input range make it unusually durable for fleet and agricultural use.

Key Features

• Industrial compatibility: Wide DC10-36V power input lets the system run on pickups, buses, tractors and most heavy equipment without extra converters.
• High vibration resistance: The camera is rated 10G vibration-proof so it keeps producing a stable image on machines with heavy vibration.
• Clear 1080P image: A color AHD 1080P camera delivers sharp, low-latency video and a 120 degree viewing angle for reliable rear visibility.
• Top-tier waterproofing: IP69K rating means the camera survives high-pressure washdowns and severe weather common on work vehicles.
• Single-view 7' monitor: The 7 LCD monitor shows one full camera feed (not split) and supports up to three cameras while protecting against power transients.
• Night and guide features: Built-in night vision and menu-controlled mirror, invert and distance grid options help with low-light reversing and trailer alignment.

Who It's For

The system suits fleet managers, farmers and owners of heavy machinery who need a rugged wired backup camera with reliable power handling and physical durability. It is especially appropriate where equipment sees heavy vibration, frequent washdowns, or varied voltages across 12V and 24V systems.

Consumers with small cars or those who want a multi-split home monitor should look elsewhere; the monitor is a single-view display (not a split/quad unit) and is not waterproof, so it works best inside a cabin or protected dash area. Also plan for a wired install; buyers expecting a plug-and-play wireless kit will not find that here.

Pros & Cons

Pros

• Durable IP69K camera housing withstands pressure washing and harsh weather.
• Designed for heavy vibration and a wide voltage range, ideal for large vehicles and equipment.
• 1080P color output with 120 degree view gives a clear, usable image for reversing and monitoring.
• Monitor includes TVS and reverse-polarity protection to reduce risk of damage from vehicle power transients.

Cons

• Wiring can be involved and instructions are reported as sparse, which may challenge DIY installers.
• The monitor is not waterproof and does not support split-screen viewing, limiting some mounting and multi-camera workflows.

Specifications

Camera resolution	AHD 1080P color
Monitor size	7 in LCD single-view
Viewing angle	120 degrees
Power input	DC 10-36V (monitor), DC12V camera supply
Waterproof rating	IP69K
Vibration rating	10G heavy duty
Camera connections	Waterproof 4-pin aviation screw connectors

Our Verdict

The AHD 1080P 7' backup camera system is a sensible buy for commercial and agricultural users who need a rugged wired camera that keeps working under vibration, extreme weather and varied vehicle voltages. It delivers clear 1080P images, strong ingress protection and vehicle-grade power protection, representing good value for demanding field use, provided you accept a non-waterproof monitor and a hands-on wired installation.

Frequently Asked Questions

Why do some buttons not respond on the monitor?
If a trigger wire is connected it can lock certain controls; disconnect the trigger wire or wire it to reverse lamp power for normal operation.

Will the guide lines appear automatically?
Enable the distance grid in the camera menu and connect the trigger wire for that channel to a positive trigger (usually reverse lamp) to show guide lines when reversing.

Is the camera suitable for heavy washdowns?
Yes, the camera is IP69K rated which withstands high-pressure washdowns and severe weather exposure.
