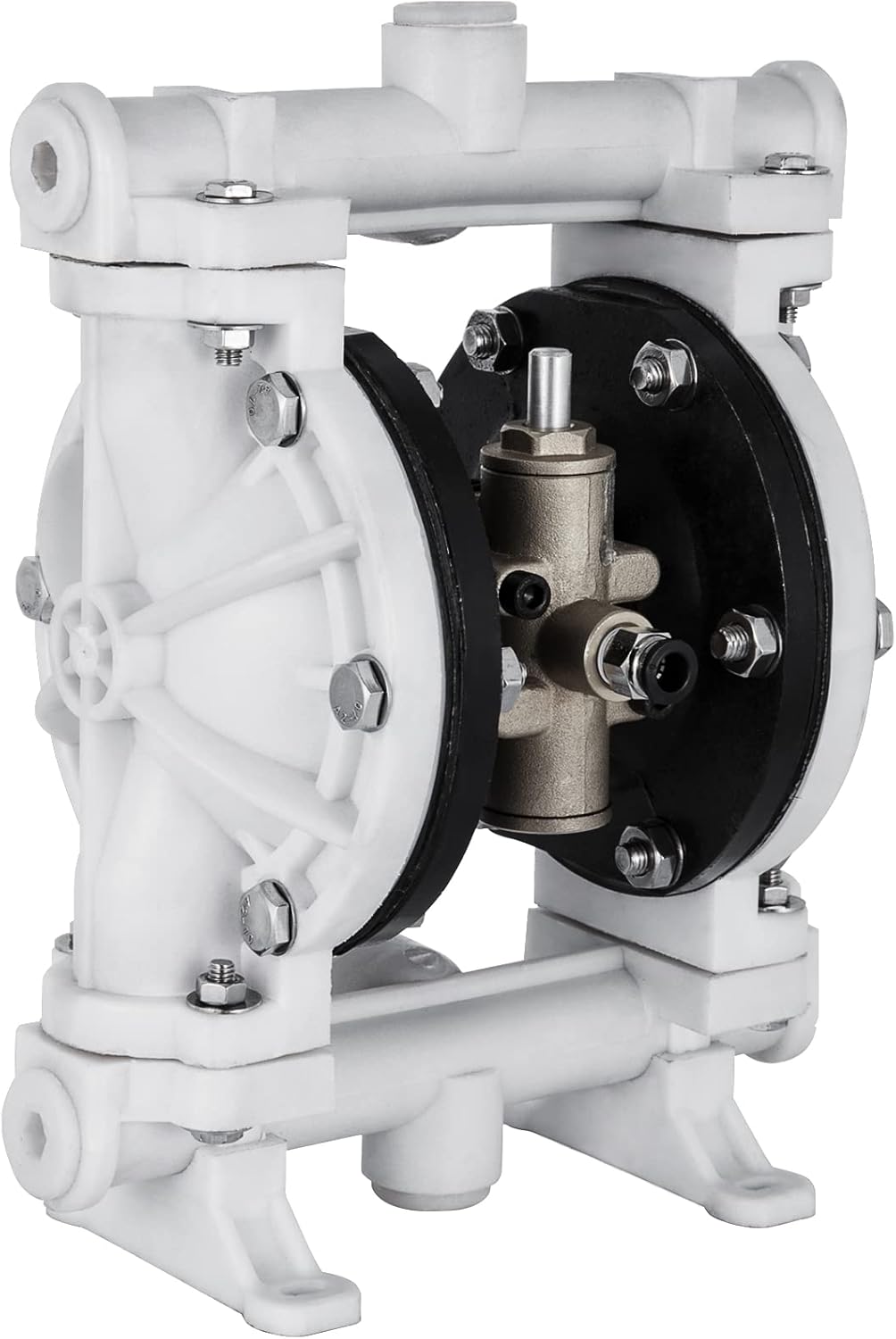

Air-Operated Double Diaphragm Pump 1/2 in - Durable PTFE Diaphragms

In this review of the air-operated double diaphragm pump, the bottom line is clear: this is a workhorse for moving low viscosity fluids where chemical resistance and leak-free construction matter. The reviewer found the pump best suited to industrial or shop environments that need a portable, pneumatic solution for diesel, oil, solvents, and similar liquids. The combination of PTFE diaphragms and a polypropylene housing makes it a practical choice when corrosion resistance and a high flow rate up to 13.2 GPM are priorities.

Key Features

• PTFE diaphragms: Deliver durable, corrosion-proof sealing suited for chemical and petroleum transfer without rapid wearing.
• Polypropylene body: Provides a bolted, leak-resistant housing that stands up to corrosive fluids and extended service.
• Air-operated design: Uses a modular stainless air valve and externally available distribution system for smooth, low-pulsation operation.
• Strong performance: Handles up to 13.2 GPM flow and a max head lift of about 226.4 ft, allowing effective transfer and higher lift applications.
• Compact ports: 1/2 in inlet and outlet with a 1/4 in FNPT air inlet make it compatible with standard pneumatic hookups and fittings.

Who It's For

This pump is aimed at maintenance shops, small refineries, and industrial sites that need a pneumatic pump able to transfer fuel and light chemicals reliably. It suits technicians who appreciate a bolted, corrosion-resistant polypropylene body and PTFE diaphragms for longevity when handling diesel, gasoline, hydraulic fluid, and similar low viscosity liquids.

It is less appropriate for applications requiring precise metering, extremely viscous fluids, or electrically driven continuous pumping. Customers needing rapid, guaranteed priming in every circumstance should test priming speed in their setup, since user reports indicate mixed priming experience in different conditions.

Pros & Cons

Pros

• Durable PTFE diaphragms and corrosion-resistant polypropylene housing increase service life with aggressive fluids.
• High maximum flow rate and substantial head lift support demanding transfer tasks and higher elevation moves.
• Modular stainless air valve and low-pulsation design provide smoother air operation and quicker changeover.

Cons

• Priming speed and functionality are mixed among users, so initial setup and tuning may be required for best performance.
• Not intended for very high viscosity fluids or precision metering applications.

Specifications

Model type	Air-operated double diaphragm pump
Diaphragm material	PTFE
Body material	Polypropylene
Inlet / Outlet	1/2 in (12.7 mm)
Air inlet	1/4 in FNPT (6.35 mm)
Max flow rate	13.2 GPM
Max head lift / Max temperature	226.4 ft / 150 F (69 m / 66 C)

Our Verdict

The air-operated double diaphragm pump is a solid value for industrial and maintenance uses that demand chemical resistance, decent flow, and a leak-proof polypropylene housing. Buyers who need a pneumatic transfer pump for diesel, oils, and low viscosity fluids will appreciate the PTFE diaphragms and modular air valve, though they should allow time for setup and priming adjustments to achieve best results.

Frequently Asked Questions

Can this pump handle gasoline and diesel?
Yes; the pump is designed for petroleum products such as gasoline and diesel and for other low viscosity fluids.

What are the inlet and air port sizes?
The liquid inlet and outlet are 1/2 in and the air inlet is 1/4 in FNPT.

What is the maximum temperature and pressure?
Maximum recommended temperature is about 150 F (66 C) and maximum pressure is 100 psi.
