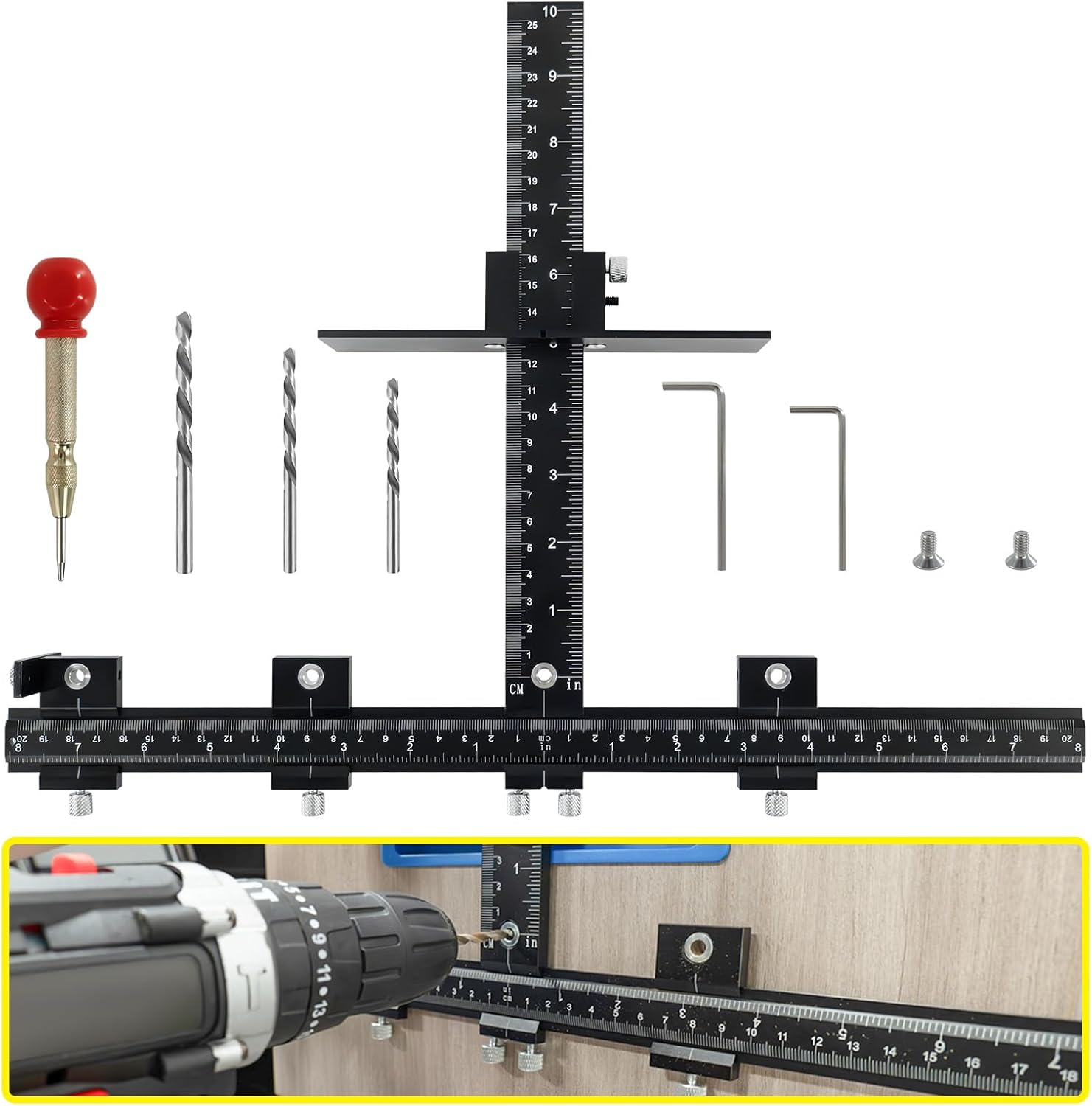

Aluminum Alloy Cabinet Hardware Jig - Precision Drilling Guide Tool

In this review the Aluminum Alloy Cabinet Hardware Jig aims at woodworkers, carpenters, and DIY homeowners who want consistently located holes for handles, pulls, and knobs. The kit's single biggest selling point is its durable aluminum construction combined with integrated drill guides and dual metric/imperial scales, which together remove guesswork and speed repetitive installs. For anyone fitting multiple cabinet doors or drawers the jig promises repeatable accuracy and a quick setup that reduces measuring time and returns professional-looking results.

Key Features

• Premium aluminum build: The lightweight aluminum alloy body resists wear while remaining easy to handle on repeated jobs.
• Integrated drill guides: Hardened guide holes prevent drill bit slippage so holes stay clean and centered for knobs and heavy pulls.
• Dual metric/imperial scales: Clear engraved measurement marks let users set exact distances in millimeters or inches without extra rulers.
• Reversible universal design: The jig adapts for handles, pulls, hinge plates, and shelf pin drilling so one tool covers many cabinet tasks.
• Quick setup and repeat use: A thumb screw locks the position so preset measurements can be used for batch installations.
• Complete kit: Includes 3mm, 4mm, and 5mm alloy drill bits plus an auto-centering punch to start holes accurately.

Who It's For

This jig is best for hobbyist woodworkers, kitchen remodelers, and professional finish carpenters who install multiple handles or knobs and need consistent hole placement. It is especially useful when working on a series of cabinet doors or drawer fronts where time savings from preset positions add up.

Less experienced users will appreciate the engraved grid and punch, but craftsmen who require specialty spacing smaller than the provided guides or who use very narrow handle widths should check compatibility first, since one reviewer noted drill guides can be larger than some hardware standards.

Pros & Cons

Pros

• Sturdy aluminum construction gives a professional feel and durability for repeated jobs.
• Clear engraved scales and alignment marks make centering faster and more accurate.
• Includes drill bits and auto punch so the kit is ready to use out of the box.
• Reversible and adjustable design handles a variety of pulls, knobs, and hinge plate tasks.

Cons

• Some users report the drill guide openings are larger than smaller hardware standards, which may require attention for narrow handle widths.
• Alignment and screw stability depend on careful clamping; for very delicate doors extra care is needed to avoid slipping.

Specifications

Brand	DOCXCDO
Material	Aluminum alloy
Included drill bits	3mm, 4mm, 5mm alloy drills
Extras included	Auto-centering punch
Measurement scales	Dual metric and imperial engraved scales
Application	Handles, pulls, knobs, hinge plates, shelf pin drilling

Our Verdict

The Aluminum Alloy Cabinet Hardware Jig is a practical, well-made tool for anyone installing multiple cabinet handles or knobs; its durable build, drill guides, and engraved scales deliver consistent, repeatable holes and save measuring time. It represents good value for DIYers and pros alike, though users with very narrow hardware should verify fit before purchase.

Frequently Asked Questions

Does it include drill bits and a punch?
Yes, the kit ships with 3mm, 4mm and 5mm alloy drill bits plus an auto-centering punch so you can start drilling immediately.

Will it work on both doors and drawers?
Yes, the reversible design and engraved alignment marks are intended for drawer fronts, cabinet doors, and hinge plate work.

Are measurements metric and imperial?
Yes, the jig has dual engraved metric and imperial scales for precise placement in either system.
