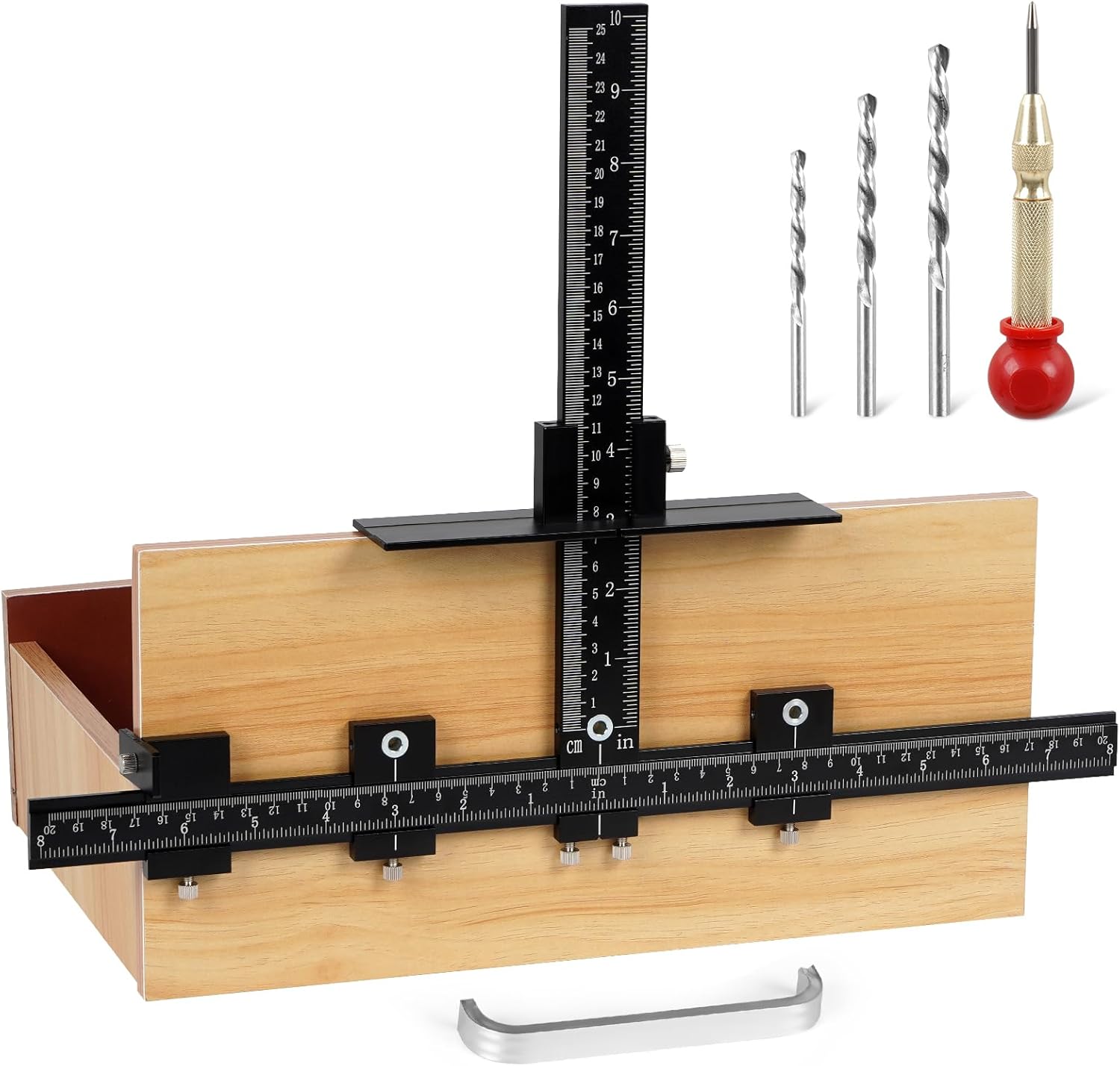

Aluminum Cabinet Hardware Jig Punch Locator Drill Guide - Accurate

Our review of the Aluminum Cabinet Hardware Jig finds it best suited to DIYers, cabinetmakers and contractors who need a repeatable drilling solution for handles and knobs. The single biggest reason to buy is durability combined with a precise, repeatable setup: the jig is forged from aircraft grade aluminum and keeps the same settings for multiple doors or drawers, saving setup time and reducing measurement guesswork. It is a hands-on tool for people who value long-lasting hardware and a simple workflow when installing pulls on cabinet doors and drawer fronts.

Key Features

• All aluminum construction: The full-metal build resists flex and wear so the guide stays true through many uses and keeps hole placement consistent.
• Accurate scale: Laser-like aircraft grade precision and an easy-to-read scale let users align holes quickly without repeated measuring.
• Time saver: One-time setup means the same punching and drilling positions can be repeated across multiple pieces, speeding installation.
• Compact and portable: The unit breaks down into smaller sections and includes a storage pouch, making it easy to carry between jobs or store in a toolbox.
• Wide compatibility: Works for most cabinet door stiles, rails and built-in drawer fronts for installing handles, knobs and pulls.
• Contractor-grade durability: Engineered for thousands of uses so it holds up under professional and heavy DIY workloads.

Who It's For

The Aluminum Cabinet Hardware Jig is geared toward cabinetmakers, remodelers and avid DIY homeowners who install multiple handles and pulls and want to cut setup time. Its rugged metal construction and repeatable settings make it a practical choice for jobs that require consistent hole placement across many doors or drawers.

Those who primarily need a one-off template for a single door or who require micro-adjustable digital alignment may want to consider simpler or different specialty guides; this jig favors durability and repeatability over electronic micrometer adjustments.

Pros & Cons

Pros

• Solid aircraft grade aluminum construction for long-term durability.
• Saves time by keeping one setup and repeating it across multiple pieces.
• Compact design with a storage pouch makes it easy to transport and store.
• Suitable for a wide range of cabinet door stiles and drawer fronts.

Cons

• Some users report mixed results on perfect alignment, so careful initial setup and test drilling are recommended.
• Not furnished with electronic alignment aids, so precision depends on the user and drill technique.

Specifications

Our Verdict

The Aluminum Cabinet Hardware Jig is a solid, value-minded choice for professionals and serious DIYers who need a reliable, repeatable drilling template. Its all-metal construction and portable design deliver longevity and jobsite convenience, though achieving perfect alignment requires careful setup and practice. For anyone fitting multiple handles or pulls, it is a practical tool that reduces time and waste.

Frequently Asked Questions

Will this jig work on drawer fronts?
Yes. The jig is designed for door stiles, rails and built-in drawer fronts and is commonly used for drawers.

Is it easy to carry between jobs?
Yes. The guide breaks into smaller sections and comes with a storage pouch for easy transport.

How accurate is the hole placement?
Accuracy is generally very good thanks to the aluminum build and scale, but some users report mixed alignment results so test drilling and careful clamping are advised.
