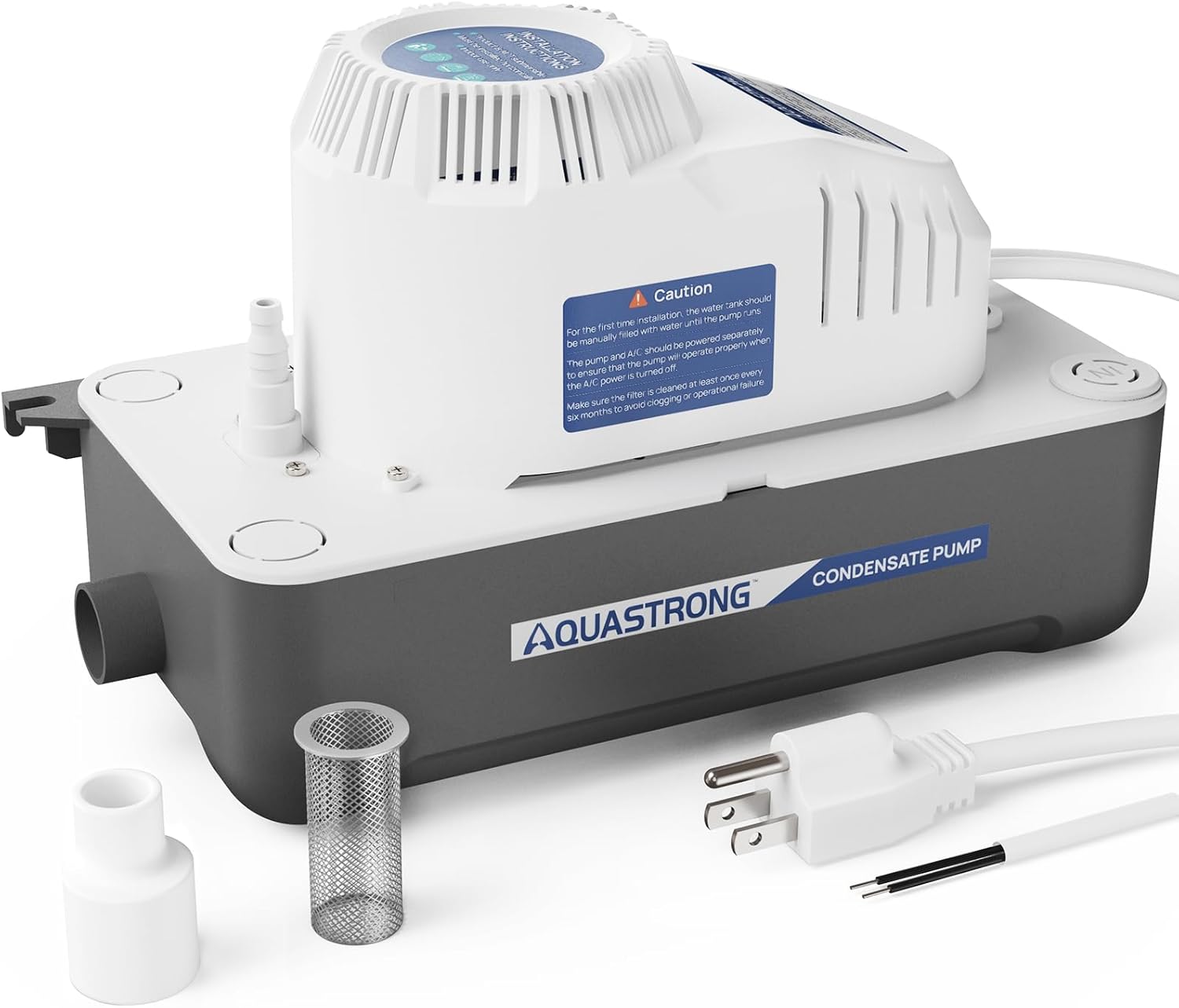

Aquastrong 115V 70 GPH HVAC Condensate Pump - Quiet 16ft Lift

In this review the Aquastrong 115V 70 GPH HVAC condensate pump is evaluated for homeowners and HVAC technicians who need a compact, reliable solution for condensate removal. The bottom line: it is best for installations that require a small vertical pump with an automatic float and safety shutoff, because its thermally protected motor and reliable float switch deliver quiet, consistent draining and the optional hi-level safety switch prevents overflow. Installation is straightforward and maintenance is minimal, making it a practical choice for furnaces, air conditioners and dehumidifiers.

Key Features

• High flow: The pump moves up to 70 GPH so it handles typical HVAC condensate loads quickly and reduces the chance of standing water.
• Strong lift capability: It can lift condensate up to 16 ft vertically, which helps route discharge to distant drains or through walls without a secondary pump.
• Automatic operation: A reliable float switch automatically starts and stops the unit at set levels for hands-free operation and reduced supervision.
• Hi-level safety switch: Two signal lead wires can be wired to HVAC appliances so the unit will shut the appliance off if high reservoir levels are detected to prevent overflow.
• Compact, durable design: A vertical centrifugal pump with a removable 1/2 gallon reservoir and thermoplastic housing resists corrosion and is easy to service.
• Convenient connections: Five 1 in inlet ports and a 2/5 in O.D. barbed outlet with built-in check valve accept common tubing sizes for flexible installation.

Who It's For

This pump suits homeowners, rental-property managers, and HVAC contractors who need a dependable condensate removal pump for air conditioners, furnaces, condensing boilers, dehumidifiers or ice makers. It is especially useful where space is limited and a vertical, wall- or floor-mounted pump is preferred, and where a safety cutout tied to the HVAC unit is desired.

Those who require extremely high flow rates for industrial processes, continuous heavy commercial use, or specialized chemical handling should look elsewhere, as this unit is designed for residential and light commercial HVAC condensate removal rather than large-scale industrial drainage.

Pros & Cons

Pros

• Quiet, thermally protected motor provides reliable quiet operation and reduces risk of motor burnout.
• Automatic float switch gives true hands-free operation once installed and wired.
• Hi-level safety switch offers an extra layer of protection by shutting connected appliances off on high water.
• Compact, corrosion-resistant construction with removable reservoir makes routine maintenance simple.

Cons

• Reservoir capacity is modest at about 1/2 gallon, so it may cycle frequently in very high-condensate situations.
• Designed for condensate water only and not intended for heavy solids or harsh chemical liquids.

Specifications

Voltage	115V
Flow rate	70 GPH
Maximum vertical lift	16 ft
Reservoir capacity	1/2 gallon
Outlet	2/5 in O.D. barbed with check valve (fits 1/4 in to 3/8 in tubing)
Inlet ports	Five 1 in inlet ports
Power cord	3.3 ft UL cord with 3-prong plug

Our Verdict

The Aquastrong 115V 70 GPH condensate pump is a practical, value-oriented choice for residential and light commercial HVAC condensate removal because it combines a quiet thermally protected motor, dependable float control and a safety shutoff feature in a compact package. For users needing a straightforward pump that is easy to install, service and wire into an HVAC safety circuit, it offers solid performance and sensible durability at a reasonable price.

Frequently Asked Questions

Can this pump be mounted vertically?
Yes, the pump must be installed vertically on a flat surface or wall for proper operation and to ensure the float and safety switch function correctly.

What triggers the safety shutoff?
Two signal lead wires from the hi-level safety switch detect high reservoir water and can be wired to HVAC appliances to shut them off and prevent overflow.

How often should it be maintained?
Clean the reservoir, float and filter basket at least every six months to prevent clogging and ensure reliable operation.
