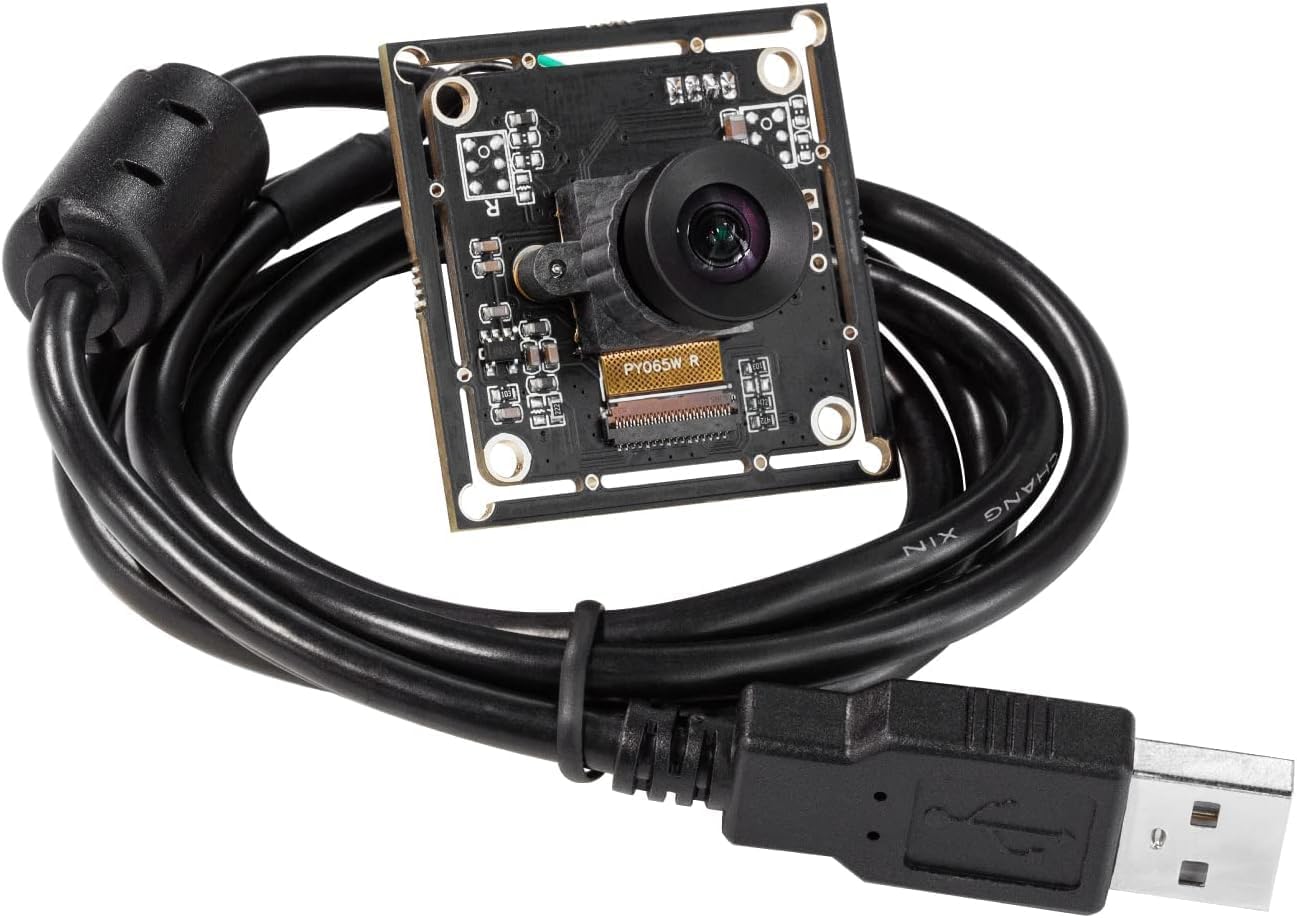

Arducam 100fps Mono Global Shutter USB Camera - High-Speed 720P

In this review the Arducam 100fps Mono Global Shutter USB Camera is examined for developers, researchers and makers who need a compact, high-frame-rate monochrome camera. The bottom line: this module excels at capturing fast motion and subtle contrast changes thanks to the OV9281 1MP global shutter sensor and a low distortion M12 lens, making it a practical choice for gesture tracking, machine vision tests and low-light imaging where rolling-shutter artifacts would be unacceptable.

Key Features

• 1MP global shutter sensor: The OV9281 records crisp, distortion-free frames of moving subjects to avoid rolling artifacts common in consumer webcams.
• High frame rates: MJPG up to 100fps at 1280 x 800 and scaled sizes delivers smooth capture for motion analysis and high-speed inspection workflows.
• Monochrome sensitivity: The camera's black and white sensor combined with the lens' lack of IR pass filter improves low-light and infrared responsiveness for tracking and detection tasks.
• UVC Plug&Play: Native UVC compliance means easy connection to PC, laptop, Android or Raspberry Pi without installing extra drivers.
• External trigger support: Reserved trigger ports allow frame capture to be synchronized with external signals for precise measurement or multi-camera setups.
• Low distortion M12 lens: The 70(H) lens keeps straight lines accurate, useful for calibration, depth sensing and image-based measurements.

Who It's For

This camera is aimed at hobbyists, developers and labs building vision systems where frame integrity and timing matter: robotics teams, researchers doing eye or gesture tracking, and integrators testing motion detection or depth algorithms will benefit most. The mono sensor and IR sensitivity make it a good fit for low-light or infrared-assisted projects rather than color imaging needs.

Those who need full-color video, built-in audio, or very high-resolution stills should look elsewhere; the Arducam is optimized for speed, timing and contrast rather than megapixel color photography or conferencing features.

Pros & Cons

Pros

• Global shutter provides accurate frames of fast-moving objects without rolling artifacts.
• High MJPG frame rates to 100fps at native resolution support smooth motion capture and analysis.
• Plug&Play UVC operation simplifies use on PC, Android and Raspberry Pi platforms.
• Reserved external trigger ports enable synchronized capture for measurement and multi-camera rigs.

Cons

• Monochrome sensor means no color video, so it is not suitable for color-dependent applications.
• Higher frame rates may require adjusting software defaults to reach maximum performance.

Specifications

Sensor	OV9281 1MP monochrome global shutter
Resolution	1280 x 800 (1MP)
Frame rates	MJPG up to 100fps @1280x800; YUY2 10fps @1280x800
Lens	70(H) low distortion M12 lens without IR pass filter
Interface	USB UVC Plug&Play (PC, laptop, Android, Raspberry Pi)
External I/O	Reserved external trigger ports for external signal

Our Verdict

The Arducam 100fps mono global shutter USB camera is a focused tool for motion-sensitive imaging tasks: it offers strong low-light sensitivity, precise frame capture and convenient UVC connectivity at a reasonable value. Buy it if you need accurate, high-speed monochrome capture or synchronized triggering for vision projects; skip it if you require color video or built-in audio.

Frequently Asked Questions

Does this camera need drivers?
It is UVC-compliant and typically works Plug&Play on PC, Android and Raspberry Pi without extra drivers.

Can it capture color video?
No, it uses a monochrome OV9281 sensor so it only records black and white imagery.

How do I get the maximum frame rate?
Change the default frame rate in your capture software to reach the higher MJPG frame rates; some hosts may also require selecting MJPG encoding.
