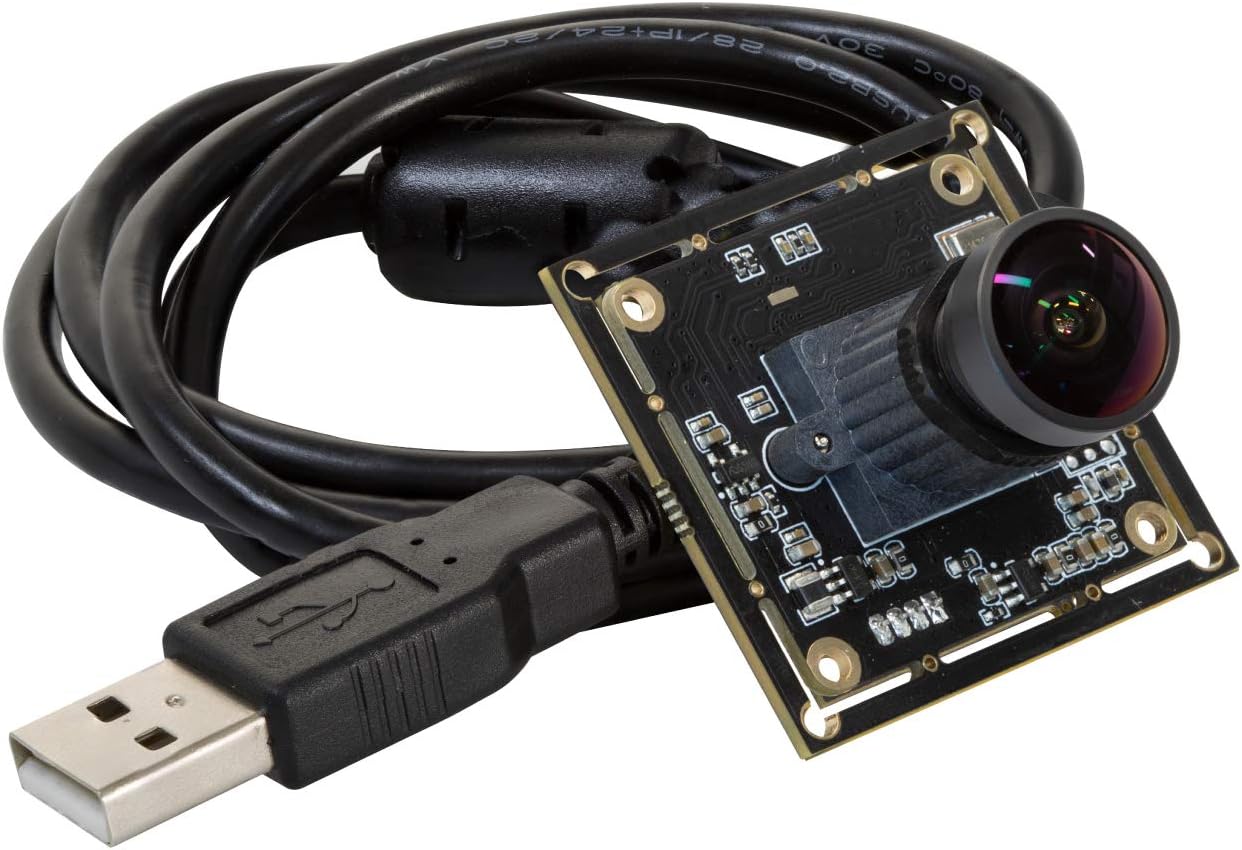

Arducam 1080P Low Light WDR Ultra Wide Angle USB Camera Module

In this review the Arducam 1080P Low Light WDR Ultra Wide Angle USB Camera Module is presented as a compact, board-style webcam that excels where low light and a wide view matter most. The main reason to consider it is its combination of a 2MP 1/2.8 IMX291 sensor with an 80dB wide dynamic range and a high quality 160 degree M12 fisheye lens, which together deliver usable video in dim conditions and capture a very wide scene without additional optics. The reviewer found it especially useful for embedded projects, close-range surveillance and dashcam-style installs where space is limited.

Key Features

• 2MP IMX291 sensor: captures 1080P video with strong low light sensitivity down to 0.001Lux, making it practical for night or dim indoor use.
• Wide dynamic range: the 80dB WDR helps retain detail in both bright and dark areas of a scene, useful for mixed lighting conditions.
• 160 degree ultra wide angle: the M12 fisheye lens provides a very broad diagonal field of view for room monitoring or wide dashcam perspectives.
• Audio capture: the built-in single microphone records audio alongside video, simplifying setups that need voice or ambient sound.
• UVC plug and play: the camera works with Windows, Linux, Mac OS and Android out of the box via USB without installing extra drivers.
• Compact board form: the tiny module and 3.3ft USB cable allow mounting in narrow or hidden locations for surveillance and machine vision projects.

Who It's For

The camera is aimed at makers, integrators and hobbyists who need a small, high-sensitivity USB camera for projects such as home video surveillance, dashcams, or embedded vision on single board computers. Its fisheye 160 degree view is particularly helpful when you need to cover a wide area from a close mounting point.

It is less appropriate for users who need optical zoom, telephoto reach, or a rectilinear lens for distortion-free imaging; professionals needing calibrated machine vision optics may prefer a different camera tailored for lens correction and high-precision imaging.

Pros & Cons

Pros

• Very good low light sensitivity from the IMX291 sensor for night and dim scenes.
• Extremely wide 160 degree diagonal field of view covers large areas from a small mounting point.
• Simple UVC compliance and a 3.3ft USB cable make it easy to connect to PCs, Raspberry Pi, and other systems without drivers.
• Onboard microphone lets you capture audio alongside video without extra hardware.

Cons

• Fisheye lens produces noticeable distortion that may require software correction for some uses.
• No built-in IR illuminators are mentioned, so true night vision beyond low light sensitivity may be limited.

Specifications

Sensor	2MP 1/2.8 IMX291 color CMOS
Resolution	1920x1080 at 30fps (H.264, MJPG)
Lens	160 degree diagonal M12 fisheye with IR filter
Low light	Minimum illumination 0.001Lux
Audio	Single onboard microphone
Interface	UVC USB2.0, 3.3ft cable
OS compatibility	Windows, Linux, Android, Mac OS

Our Verdict

The Arducam 1080P IMX291 USB camera module is a strong value for makers and installers who need a compact, low light capable, ultra wide angle USB camera. It delivers useful 1080P video and onboard audio without driver hassle, and its tiny board form factor makes it easy to mount in constrained spaces. Buyers who require undistorted optics or infrared illumination should consider alternatives, but for surveillance, dashcam prototypes and embedded projects this module offers practical performance at a modest footprint.

Frequently Asked Questions

Does this camera need drivers?
No. It is UVC compliant and works with Windows, Linux, Android and Mac OS without extra drivers.

Can it film in near darkness?
It has strong low light sensitivity down to 0.001Lux, but it does not include IR illuminators for complete darkness.

Is the lens distortion removable?
The 160 degree fisheye lens introduces distortion; software correction can reduce it for many applications.
