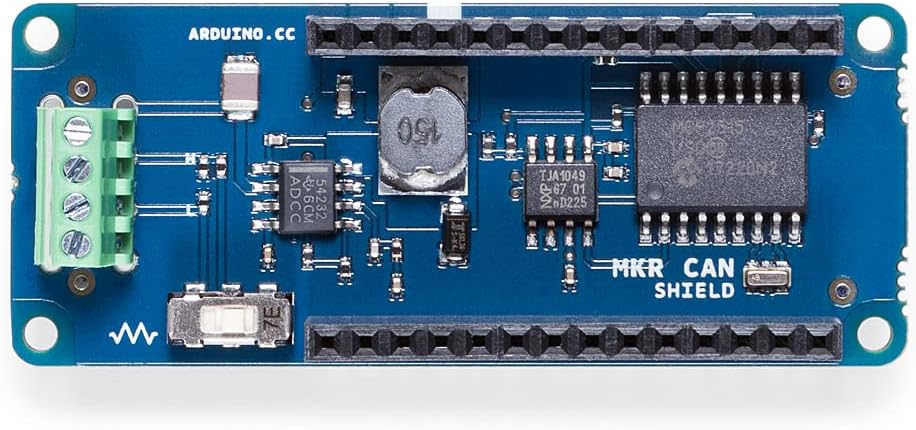

Arduino MKR CAN Shield - CAN Bus Communication for MKR Boards

In this review the Arduino MKR CAN Shield proves itself as a practical add-on for makers and engineers who need reliable Controller Area Network connectivity on MKR series boards. The bottom line: it is best for projects that require robust, real-time communication with CAN devices because it brings up to 1 Mbps CAN 2.0A/B support and plug-and-play compatibility with MKR boards, letting users quickly integrate sensors, actuators, or vehicle modules into larger networks with familiar Arduino tools.

Key Features

• CAN 2.0A/B up to 1 Mbps: Enables high-speed communication suitable for automotive and industrial control systems that demand timely message exchange.
• MKR Board Compatibility: Designed to stack with Arduino MKR series boards so developers can add CAN without custom wiring or level shifting.
• SPI Interface: Uses the SPI bus on MKR boards for reliable data transfer and easy integration with existing MKR-based projects.
• Arduino IDE Support: Works with Arduino IDE libraries and examples to accelerate development and troubleshooting for both beginners and experienced users.
• Supports Standard and Extended Frames: Handles both message formats and includes diagnostic support for flexible network design and debugging.

Who It's For

The MKR CAN Shield is ideal for hobbyists, students, and professional developers building automotive diagnostics, fleet management prototypes, industrial monitoring, or distributed IoT nodes that need a stable CAN backbone. Its plug-and-play fit with MKR boards and Arduino IDE examples lower the barrier for those who already work in the Arduino ecosystem.

Those who should look elsewhere include projects that require integrated cellular or Wi-Fi with native CAN (look for combined modules) or systems needing faster than 1 Mbps by design; similarly, users on non-MKR Arduino lines must select a different CAN interface tailored to their form factor.

Pros & Cons

Pros

• Simple integration with Arduino MKR boards reduces setup time and wiring complexity.
• Supports CAN 2.0A/B up to 1 Mbps, suitable for many automotive and industrial applications.
• Arduino IDE libraries and examples make development accessible to beginners and rapid for prototyping.
• Built-in diagnostic support and both frame formats provide flexibility when designing networks.

Cons

• Limited to MKR series form factor, so it is not plug-and-play with non-MKR Arduino boards.
• Maximum speed of 1 Mbps is standard for CAN 2.0 but may be a constraint for niche high-bandwidth applications.

Specifications

Our Verdict

The MKR CAN Shield is a sensible, cost-effective way to add robust CAN bus capabilities to an Arduino MKR board. It is especially valuable for educational projects, rapid prototypes, and industrial or automotive test setups where compatibility with MKR form factor and Arduino IDE support speeds development. For those already invested in MKR hardware, it is a practical upgrade that delivers reliable CAN communication and good long-term value.

Frequently Asked Questions

Will this work with any Arduino?
It is designed specifically for Arduino MKR series boards and requires the MKR form factor for direct stacking.

What data rates does the shield support?
The shield supports CAN 2.0A/B communication up to 1 Mbps, which is standard for many automotive and industrial uses.

Is there software support for beginners?
Yes, the shield is supported by Arduino IDE libraries and includes examples to help beginners get started.
