ASIAHORSE Matrix-White 48 Addressable RGB 240mm Square Fan - High

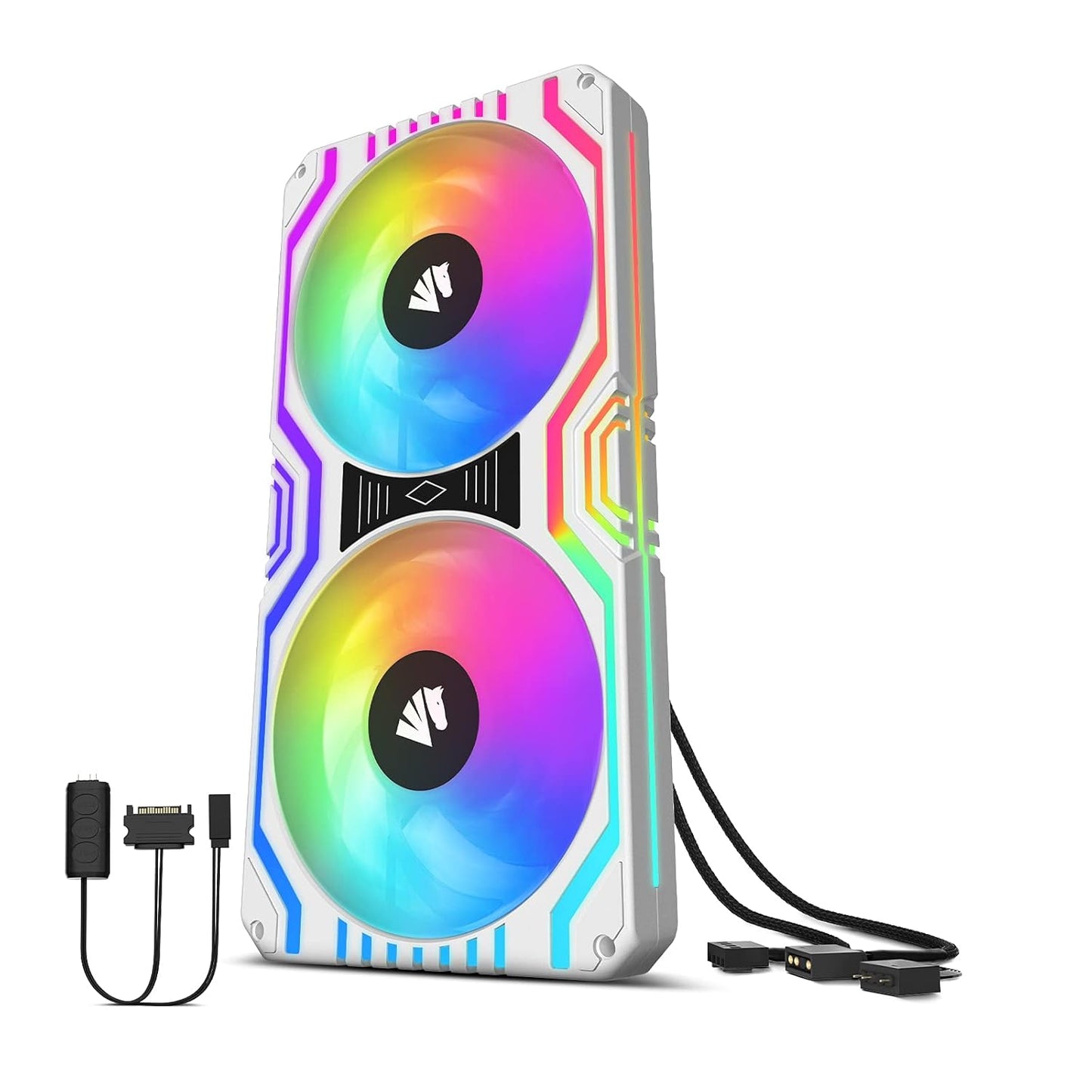

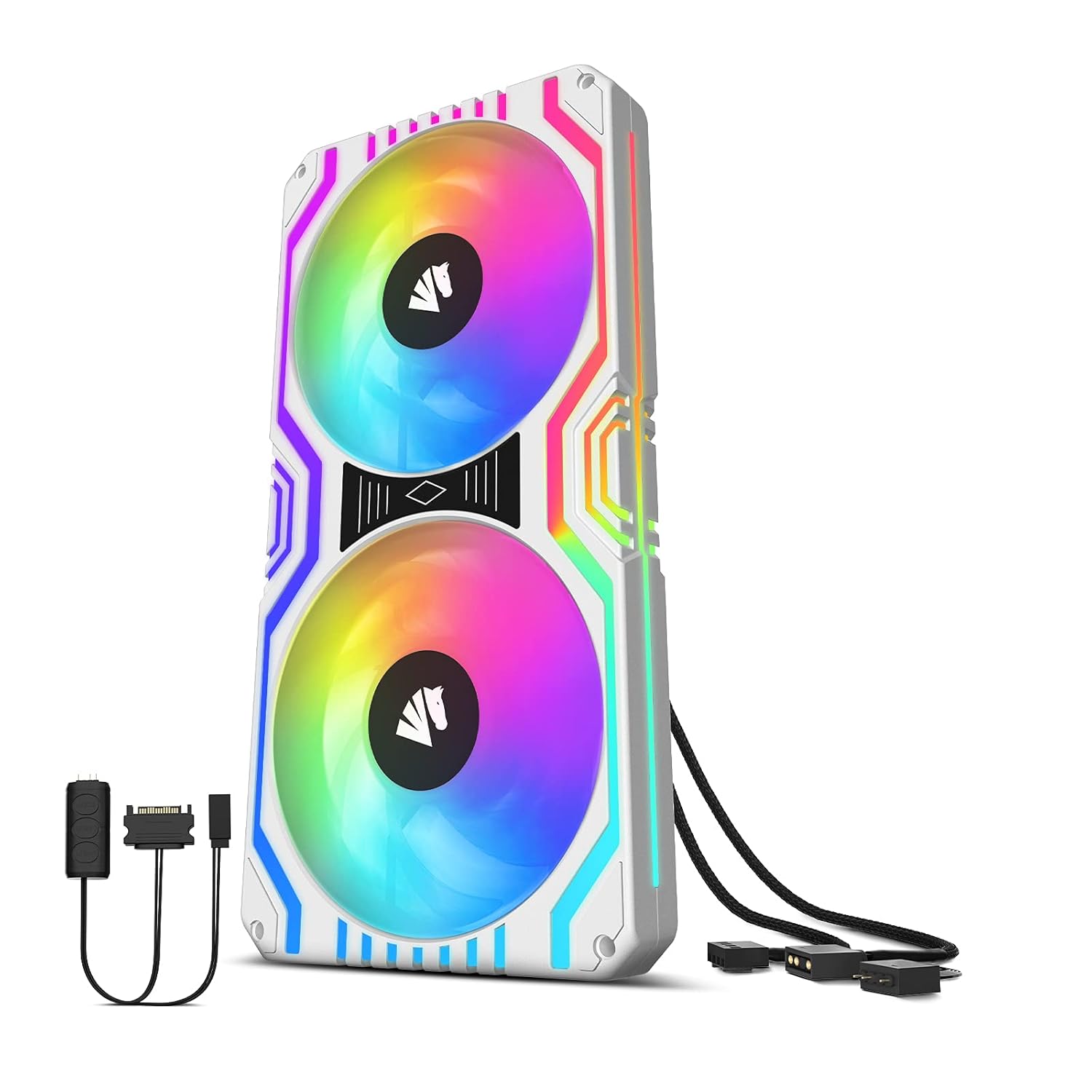

In this review of the ASIAHORSE Matrix-White 48 addressable RGB 240mm all-in-one square frame fan, the bottom line is straightforward: this kit targets PC builders who want vivid lighting plus solid cooling without complicated wiring. It ships as two integrated 120mm fans in a 240mm square frame with 48 independently addressable LEDs, and the single biggest reason to consider it is the combination of vibrant, motherboard-syncable RGB effects with adjustable PWM control that balances low noise and strong airflow.

Key Features

• Dual 120mm fans: Two fans in a 240mm configuration provide improved airflow for faster heat transfer between the computer case and CPU.
• 48 addressable RGB LEDs: Individually controlled LEDs allow detailed color customization and dynamic lighting when synced to a compatible motherboard.
• PWM speed control: Fan speed adjusts between roughly 800 and 1800 RPM so users can prioritize silence or maximum cooling.
• High airflow: A reported maximum air flow near 66.5 CFM offers meaningful intake or exhaust performance for case and liquid cooling setups.
• Square integrated frame: The all-in-one design simplifies installation and cable routing while rubber pads reduce vibration and noise transfer.
• Compatibility: Works as a case fan or with CPU liquid coolers, giving flexibility for different cooling builds.

Who It's For

This product is best for PC builders who want a visible RGB centerpiece that also contributes to cooling performance, particularly users running mid to high TDP CPUs or those with liquid cooling radiators in a 240mm mount. The individually addressable LEDs appeal to enthusiasts who use motherboard sync software for coordinated lighting.

Users who prioritize absolute whisper operation or expect guaranteed ultra-low noise at all loads should compare measured noise levels carefully, since customer reports range from "super quiet" to louder operation in some cases. Also, those needing a single 120mm fan or a non-RGB option should look elsewhere.

Pros & Cons

Pros

• Strong, customizable RGB lighting with 48 addressable LEDs that sync with compatible motherboards.
• Good airflow and cooling potential thanks to dual 120mm fans and a 66.5 CFM maximum rating.
• Integrated square frame and rubber pads reduce installation complexity and vibration.
• Versatile use for both case ventilation and CPU liquid cooling radiators.

Cons

• Noise can vary by unit and setup; some users report louder operation under load despite PWM control.
• Limited to the supplied 240mm square integrated layout, so not ideal if a different fan layout is needed.

Specifications

Fan configuration	2 x 120mm in 240mm square frame
LEDs	48 addressable RGB LEDs
Speed range	Approx. 800 - 1800 RPM (PWM)
Max air flow	66.5 CFM
Noise level	16 - 34.3 dB(A)
Design	Integrated square frame with rubber pad
Compatibility	Case fan and CPU liquid cooler compatible; motherboard RGB sync

Our Verdict

The ASIAHORSE Matrix-White 48 addressable RGB 240mm square fan is a strong choice for builders who want eye-catching, motherboard-syncable lighting and meaningful airflow in one integrated unit. It delivers good value for users seeking flexible PWM control and radiator compatibility, though buyers sensitive to noise should check results in their particular case environment before committing.

Frequently Asked Questions

Can the RGB be synced with a motherboard?
The LEDs are addressable and designed to sync with compatible motherboard RGB headers and software.

What speed range does the fan cover?
PWM control lets the fans run roughly between 800 and 1800 RPM to balance noise and airflow.

Is this suitable for a 240mm radiator?
Yes, the integrated 2 x 120mm arrangement is compatible with 240mm liquid cooler radiators and case mounts.
