Autel PowerScan PS100 Automotive Circuit Tester 2.0 - Fast Circuit

In this review the Autel PowerScan PS100 proves to be a practical diagnostic tool for technicians and DIYers who work on 6-30V vehicle electrical systems. The single biggest reason to buy is its combination of live AC/DC/resistance readings and an integrated, resettable circuit breaker that lets a user trace shorts and actively power components without fumbling jumper wires. It cuts diagnostic time by showing polarity, voltage drop and min/max signal behavior on a clear backlit LCD while the long cables make in-vehicle testing far more convenient.

Key Features

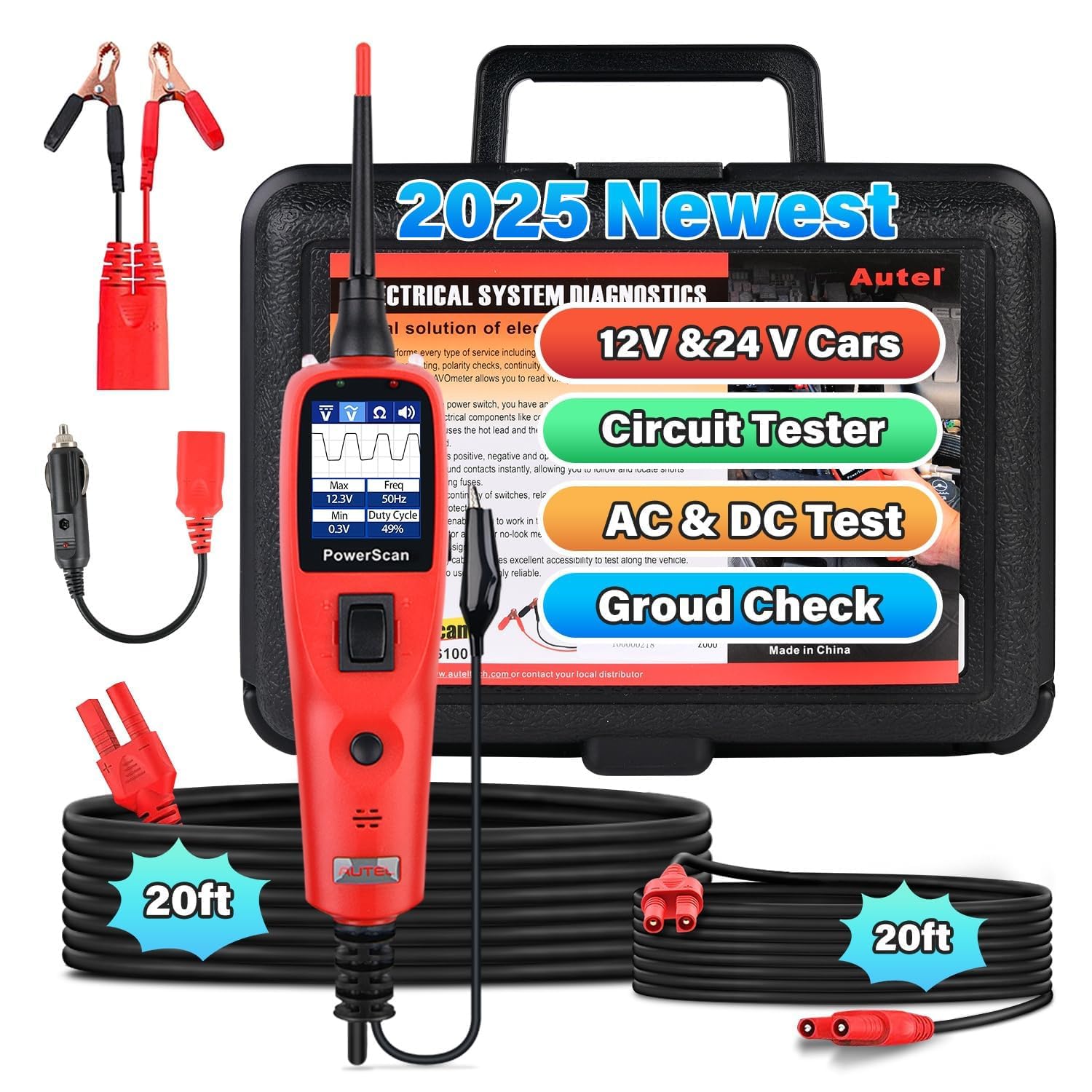

• Dual power and long reach: The kit includes a 20 ft main cable plus a 20 ft extension and a cigarette lighter power option so you can test around longer vehicles and trailers without opening the hood.
• Four advanced modes: Active DC voltage, AC signal with max/min and duty cycle, resistance continuity, and a tone on/off mode give immediate, task-specific results for most electrical troubleshooting.
• Component activation: The PS100 can apply power or ground to components to check lights, motors, relays and fans without separate jumper leads, speeding diagnosis and reducing errors.
• Short tracing with protection: A built-in 10 A resettable circuit breaker trips and sounds a buzzer on overload, helping find shorts while protecting the vehicle and tool.
• Polarity and voltage drop detection: Red/green LED polarity indicators plus an LCD with 0.1 V resolution make it easy to spot bad grounds and voltage drops.
• Backlit LCD and work lights: A clear digital display and dual head lights support testing in low-light conditions while showing readable numerical values.

Who It's For

The Autel PowerScan PS100 is ideal for professional auto electricians, mobile technicians and serious DIYers who need faster, more informative troubleshooting than a simple test light or basic multimeter can provide. Its ability to display AC/DC values, frequency and duty cycle makes it useful when diagnosing sensors, alternator signals and ECM-modulated circuits.

It is less suited to someone who only needs occasional, basic battery or bulb checks and prefers a simpler pen tester without component activation. If you never test signal duty cycles or trace shorts, a basic multimeter or test light may be a cheaper, lighter option.

Pros & Cons

Pros

• Combines voltage, polarity, continuity and signal diagnostics in one handheld tool.
• Long reach with a combined 40 ft of cable and a cigarette lighter power option for in-vehicle work.
• Built-in circuit breaker for safe short tracing and protection during activation tests.
• Clear backlit LCD with 0.1 V resolution and useful live Min/Max signal display.

Cons

• The tool is more complex than a basic test light, so casual users face a learning curve to use all modes effectively.
• Accuracy received mixed feedback from some users, so for precision bench measurements a dedicated meter may still be preferred.

Specifications

Our Verdict

The Autel PowerScan PS100 is a versatile and practical circuit tester that delivers fast, informative results for real-world automotive electrical troubleshooting. It is particularly good value for technicians who need active component testing, short tracing and signal diagnostics at the vehicle; casual users who only need simple checks may find it more capability than they require.

Frequently Asked Questions

Can the PS100 trace shorts without blowing fuses?
Yes, the built-in resettable 10 A circuit breaker lets you trace shorts while protecting the vehicle; it trips and sounds a buzzer when overloaded.

Does it display signal duty cycle and frequency?
Yes, in AC mode the LCD shows max/min voltage, frequency and duty cycle for live sensor and alternator signal checks.

How can I power the PS100 in-vehicle?
It can be powered from the battery via alligator clip or from the cigarette lighter plug included with the long cable for convenient in-cabin testing.
