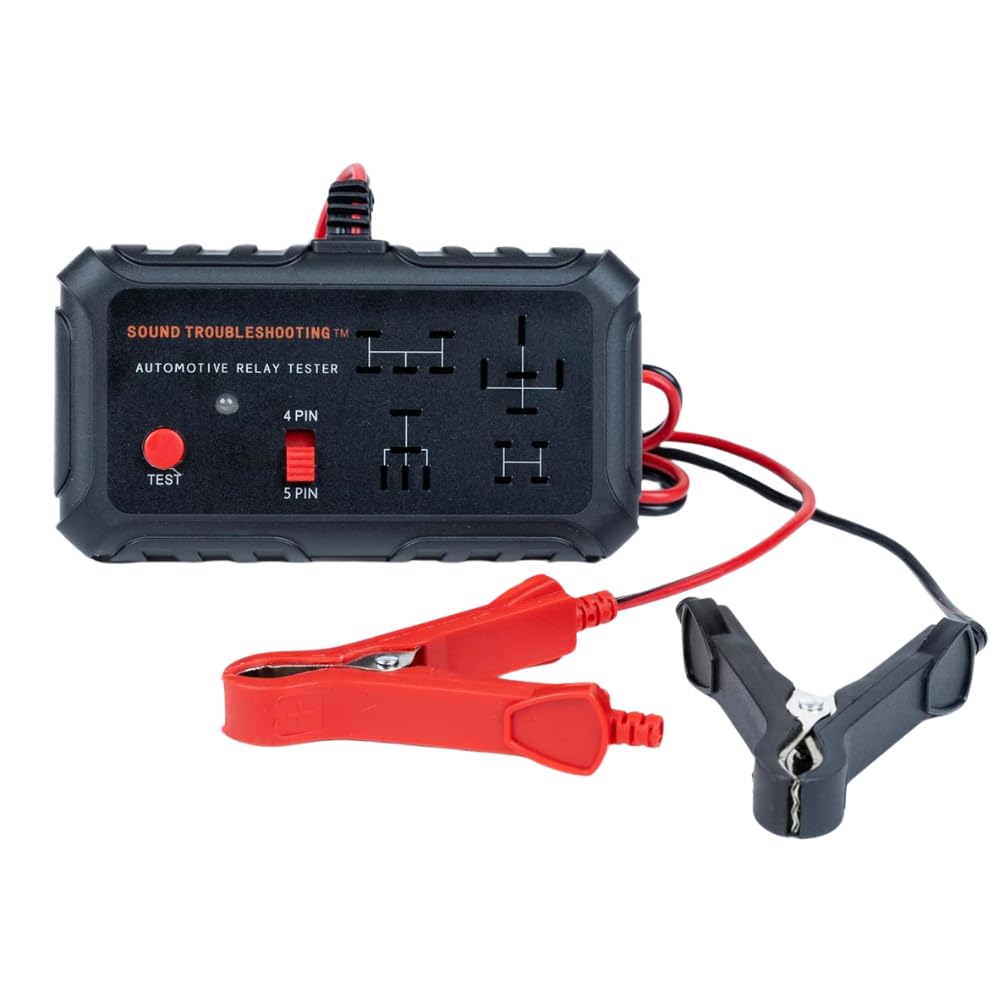

Automotive Relay Tester 4 & 5 Pin 12V - Compact Handheld Diagnostic

In this review the Sound Troubleshooting automotive relay tester proves to be a straightforward, no-frills tool for DIYers and mechanics who need a quick way to verify common 12V relays. The single biggest reason to buy is how reliably it automates relay checks: clip to a 12V battery, select socket and pin count, press Test, and the unit cycles the relay while indicating pass or fail with green and red LEDs. It is designed for portability and fast fault-finding rather than advanced lab diagnostics.

Key Features

• Automatic pin detection: The tester detects pin position automatically so users do not have to guess relay orientation before testing.
• LED pass/fail indication: A green LED confirms a normal relay and a red LED flags an abnormal relay for clear, immediate results.
• 4 and 5 pin support: The simple 4 Pin/5 Pin switch lets you match the unit to the relay type without complicated setup.
• Battery-powered operation: Connect to a vehicle 12V battery (11V-15V range) with included clips for on-vehicle testing and mobile troubleshooting.
• Compact handheld design: The small form factor makes it easy to carry in a toolbox or glovebox for field use.
• Patented test routine: The patented design cycles the relay multiple times while checking timing and consistency for more confident results.

Who It's For

The tester is ideal for home mechanics, mobile technicians, and DIYers who regularly diagnose relay-related faults in 12V automotive electrical systems and want a rapid pass/fail tool. Its portability and simple LED readout are helpful when working on starter circuits, fuel pumps, horns, or lighting relays on the vehicle.

Users who need laboratory-grade measurements, support for exotic high-current relays, or guaranteed compatibility with every manufacturer-specific relay (for example some BMW relays) should look elsewhere or supplement this tester with a multimeter and manufacturer service information.

Pros & Cons

Pros

• Easy, automated testing process that reduces setup errors and speeds diagnosis.
• Clear visual feedback with green and red LEDs for fast decision-making in the field.
• Small, lightweight unit that fits in a toolbox and is convenient for mobile use.
• Works with most general-purpose automotive relays within the 11V-15V battery range.

Cons

• Some customers report fitment issues with certain relay shapes and pins, so not every relay will seat perfectly.
• Not intended for use with all BMW relays and not a substitute for detailed electrical measurements.

Specifications

Product type	Handheld 12V relay tester
Pin support	4 pin and 5 pin relays
Battery connection	Alligator clips to 12V battery (black negative, red positive)
Operating battery voltage	11V to 15V (vehicle 12V battery required)
Applicable coil resistance	Preferably above 20 ohms
Indicator lights	Green (good) and red (bad)
Patent	USA Patented #9,423,462

Our Verdict

The Sound Troubleshooting relay tester is a practical, reasonably priced tool for anyone who needs quick, reliable relay checks on 12V vehicles. It excels at fast troubleshooting thanks to its automated cycle test and clear LED feedback, and its compact size is handy for on-the-go repairs. Buyers should be aware of occasional fitment issues and that it is not suitable for every manufacturer-specific relay, but for general automotive work it represents good value.

Frequently Asked Questions

Will this tester work on my car battery?
Yes, it requires a 12V vehicle battery with voltage in the 11V-15V range and connects using the included alligator clips.

Can it test both 4 pin and 5 pin relays?
Yes, there is a 4 Pin/5 Pin switch to match the relay type and multiple sockets to fit common relay configurations.

Does a red LED always mean the relay is ruined?
A red LED indicates the relay failed the tester's checks; it is a good indication of a problem but follow-up diagnosis may be needed if fitment or connections are in question.
