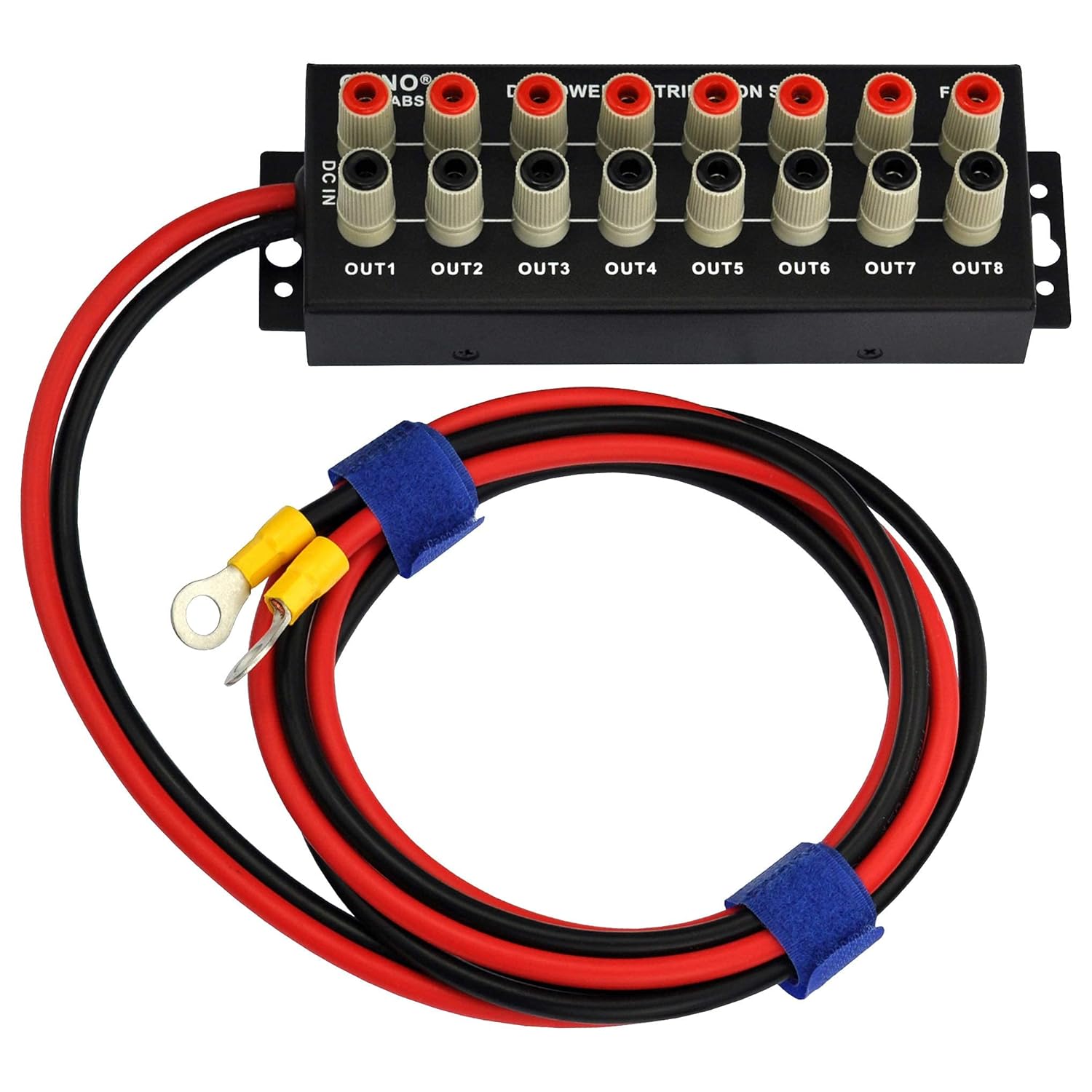

Banana Jack 8 Outlet DC Power Distribution Strip - Heavy Duty 50A

In this review of the Banana Jack 8 Outlet DC Power Distribution Strip the bottom line is simple: this is a heavy-duty DC distribution block for bench and mobile power setups that need clear, high-current outputs. The strip is aimed at technicians, ham radio operators, EV hobbyists and anyone who needs to split a single DC feed into multiple robust outlets; the single biggest reason to buy is the combination of thick 7AWG-equivalent input cable and nickel-plated brass banana jacks that together deliver safe, low-loss power distribution up to a 50A system limit.

Key Features

• 8-position outputs: Two rows of positive and negative banana jacks provide convenient, clearly separated outputs for multiple devices without messy splices.
• High total current capacity: The unit supports a total maximum input current of 50 Amp so it can distribute power from large batteries or high-current supplies.
• Robust per-channel rating: Each output can handle up to 24 Amp, which covers most accessories, chargers and bench devices without overtaxing a single port.
• Thick input cable: The supplied 1.5m / 5ft red and black cable uses a 10mm square conductor (about 7AWG) and 5/16 in ring terminals for low voltage drop and secure battery or busbar connections.
• Durable enclosure: A 1.5mm aluminum housing gives the strip ruggedness for desktop, wall or screw mounting and helps with heat dissipation under sustained loads.

Who It's For

The Banana Jack strip is best for users who regularly connect multiple DC devices to a single high-current source: electronics shops, makerspaces, ham radio stations, solar battery test benches and EV accessory fitters will appreciate the heavy conductors and high current limits. It is also useful in mobile work vans or boats where secure ring-terminal input and screw mounting matter.

Those who should look elsewhere include casual users who only need one or two low-current cigarette-socket style outputs or anyone requiring integrated surge protection or fusing per output; this product is a distribution block, not a protected, fused power center.

Pros & Cons

Pros

• Well-built aluminum enclosure and nickel-plated brass jacks make the strip feel durable and reliable.
• Thick 7AWG-equivalent input cable and 5/16 in ring terminals support high-current connections with minimal loss.
• Eight clearly marked positive and negative positions simplify wiring multiple devices from one supply.

Cons

• No included banana plugs or separate 1/4 in ring or spade terminals for the outputs, so users may need to supply connectors separately.

Specifications

Our Verdict

The Banana Jack 8 Outlet DC Power Distribution Strip is a practical, value-minded choice for anyone who needs to route high DC currents cleanly to many devices. Its heavy gauge input cable and solid banana jacks make it especially worthwhile for bench users and mobile installations; buy it if you need reliable, unfused distribution at up to 50A and are prepared to add your own plugs or terminations for specific equipment.

Frequently Asked Questions

Does this strip include banana plugs or ring terminals for outputs?
No, the item does not include banana plugs or 1/4 in ring or spade terminals for the outputs; only the input ring terminals are provided.

Can it be mounted to a DIN rail?
Not directly; it supports screw or wall mount, but can be fitted to 35mm, 32mm or 15mm DIN rail if used with the optional CASE-015 DIN adapter bracket.

What battery or supply voltage can it handle?
The specified operating voltage range is 0 to 60VDC, suitable for most 12V and 24V systems and many higher-voltage bench supplies.
