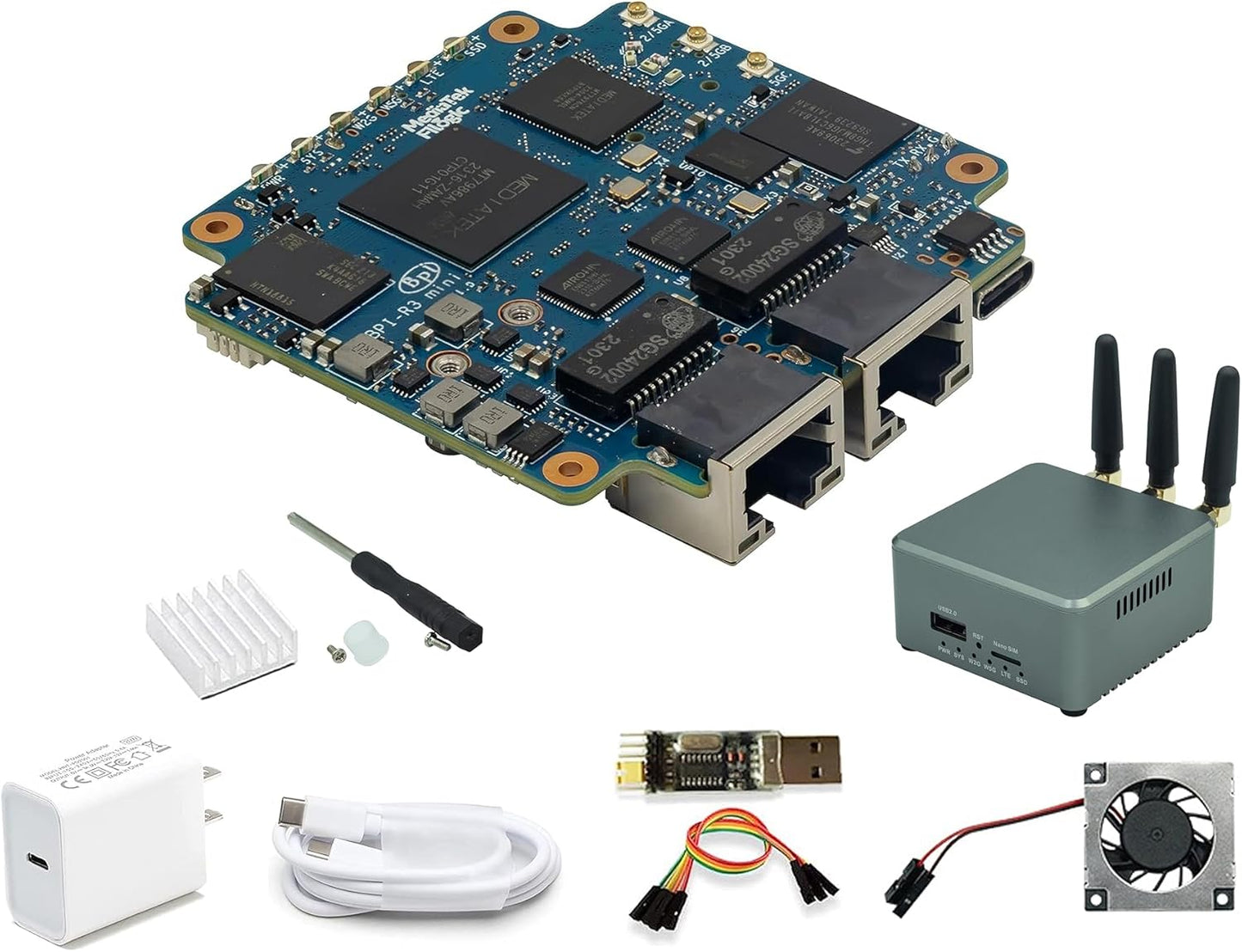

Banana Pi BPI-R3 Mini Wi-Fi 6 OpenWRT Router Board - Compact 2.5GbE

In this review the Banana Pi BPI-R3 Mini is evaluated as a compact, open source router board aimed at tinkerers, small office networks and advanced home users who need multigigabit wired throughput and modern Wi-Fi 6. The bottom line: the BPI-R3 Mini shines when used as a customizable gateway or NAS front-end because it pairs a capable MediaTek MT7986A CPU and Filogic 830 Wi-Fi hardware with onboard eMMC and an M.2 slot, giving real-world performance and upgrade paths for storage or cellular modules.

Key Features

• Processor: The MediaTek MT7986A quad core ARM Cortex-A53 CPU provides headroom for routing, VPN and firewall tasks without becoming a bottleneck.
• Memory and Storage: Onboard 2GB DDR4 and 8GB eMMC plus 128MB SPI nand give a ready-to-boot OpenWRT setup and space for firmware and packages.
• Dual-band Wi-Fi 6: Built-in Filogic 830 and MT7976C Wi-Fi support lowers latency and increases throughput for streaming and gaming on both 2.4G and 5G bands.
• Multigigabit Ethernet: Two 2.5GbE ports alongside 5x GbE make the board suited for NAS fronting, high-speed LAN segments and firewall deployments.
• Expansion: The M.2 PCIe socket and Key B interface accept NVMe SSDs or cellular modules for storage or 4G/5G connectivity, enabling flexible gateway builds.
• Open software: Ships with an OpenWRT image preinstalled on eMMC/NAND so the board can boot directly for development and custom routing setups.

Who It's For

The BPI-R3 Mini is for DIY network builders, small business IT hobbyists and home lab users who want a compact, open source router with multigigabit wired ports and Wi-Fi 6 capability. It fits well as a firewall, soft router or NAS gateway when paired with an NVMe or external storage and an OpenWRT configuration.

It is less suitable for users who want a turnkey consumer router with polished vendor firmware and plug-and-play mobile support; beginners uncomfortable with firmware flashing or command-line configuration should consider easier consumer alternatives.

Pros & Cons

Pros

• Strong on-board processing with the MediaTek MT7986A for routing and offload tasks.
• Real multigigabit wired options thanks to 2x 2.5GbE ports plus 5x GbE for flexible LAN layouts.
• Good expansion with M.2 PCIe for NVMe or cellular modules and a pre-burned OpenWRT image for immediate use.
• Wi-Fi 6 via Filogic 830 delivers lower latency and better capacity for demanding wireless clients.

Cons

• Not a consumer plug-and-play router; it requires familiarity with OpenWRT and networking to unlock its full potential.
• Documentation and support links are provided but users may need to consult community resources for advanced setups.

Specifications

CPU	MediaTek MT7986A (Filogic 830) quad core ARM Cortex-A53
RAM	2GB DDR4
Storage	8GB eMMC + 128MB SPI NAND, M.2 NVMe support
Wireless	Dual-band Wi-Fi 6 (MT7976C / Filogic 830)
Ethernet	2x 2.5GbE + 5x GbE
Expansion	M.2 PCIe 2230, M.2 Key B, USB 2.0, Nano SIM, U.FL antenna

Our Verdict

The Banana Pi BPI-R3 Mini is a solid choice for anyone building a custom gateway, firewall or small NAS front-end who needs Wi-Fi 6 and multigigabit wired ports in a compact open source platform. It delivers capable CPU performance, onboard storage and useful expansion but rewards buyers who are comfortable configuring OpenWRT and assembling a tailored network setup.

Frequently Asked Questions

Does it run OpenWRT out of the box?
Yes, both NAND and eMMC are pre-burned with an OpenWRT image so the board can boot directly; refer to the Banana Pi getting started wiki for updates.

Can I add NVMe storage or cellular modules?
Yes, the M.2 PCIe 2230 socket and M.2 Key B support NVMe SSDs and compatible 4G/5G modules such as Quectel RM500U-CN and RM520N-GL.

Is it suitable as a home router for gaming and streaming?
Yes, the Filogic 830 Wi-Fi 6 hardware plus 2.5GbE ports make it well suited for low-latency gaming and high-bandwidth streaming when configured correctly.
