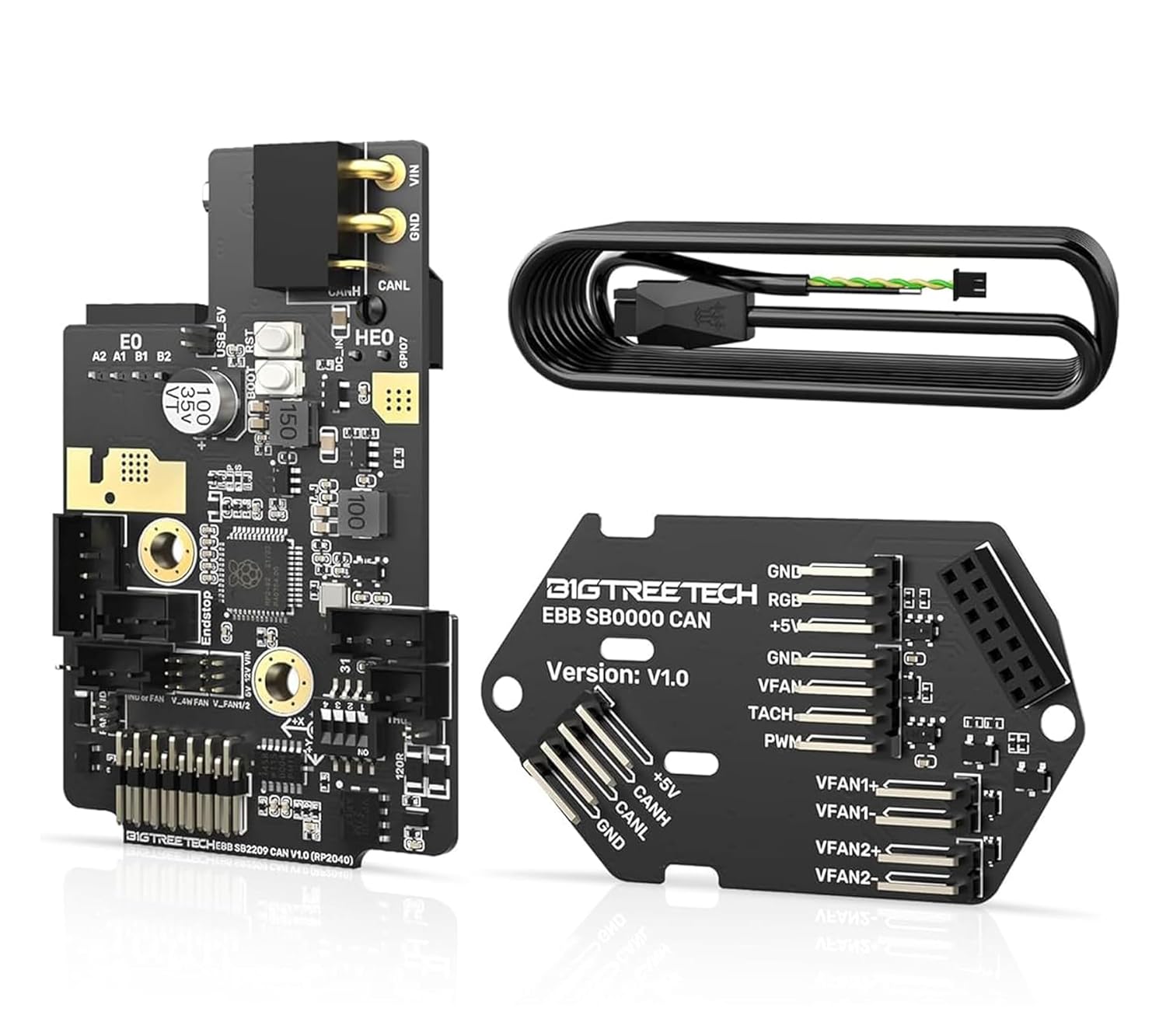

BIGTREETECH EBB SB2209 CAN for Voron StealthBurner 3D Printing

The BIGTREETECH EBB SB2209 CAN is a game-changer for 3D printing enthusiasts using the Voron StealthBurner. This innovative component utilizes the MCU RP2040, ensuring rock-solid performance for CAN bus signals. With the ability to support higher data rates over longer distances without errors, this product is designed for those who demand reliability in their printing processes.

One of the standout features of the EBB SB2209 is its easier wiring capabilities. The PH2.0 socket allows for straightforward crimping of terminals, meeting the main expansion needs of the StealthBurner. The interface layout is thoughtfully designed, making it easy to wire and set up, which is crucial for both beginners and experienced users alike.

Equipped with an ultra-quiet driver chip, the EBB SB2209 (RP2040) features the TMC2209 onboard silent driver. This ensures smooth and accurate printing without losing steps or experiencing rough prints. The UART working mode and overheating protection function further enhance the reliability of your printing experience.

Installation is a breeze with the Voron StealthBurner, thanks to the careful connector spacing and placement. There's no need for soldering, as the onboard header pins simplify the setup process. This feature is particularly beneficial for those who prefer a hassle-free installation.

For accurate thermal printing, the EBB SB2209 includes an onboard MAX31865 that supports PT100 or PT1000 temperature probes. Configuration is straightforward, utilizing DIP switches for easy adjustments. This ensures that you can achieve the perfect temperature for your materials, enhancing print quality.

Another impressive aspect of the EBB SB2209 is its rich expansion interfaces. It supports two CNC fans (FAN0, FAN1) and a one-way four-wire fan interface. Additionally, it allows for simultaneous selection of two-wire fan voltages, ensuring optimal cooling during printing. The HEO heating rod interface supports up to 5A current, providing stable snap-on wiring for a reliable connection.

Moreover, the EBB SB2209 supports access to BL Touch, Voron Tap, and other enhancements, making it a versatile addition to your 3D printing setup. Real-time display of printer status through the Knomi UI adds an extra layer of interactivity, making your printing experience more engaging and informative.

In conclusion, the BIGTREETECH EBB SB2209 CAN is an essential component for anyone looking to enhance their Voron StealthBurner 3D printing experience. With its robust features, ease of installation, and superior performance, it is a must-have for both hobbyists and professionals alike.
