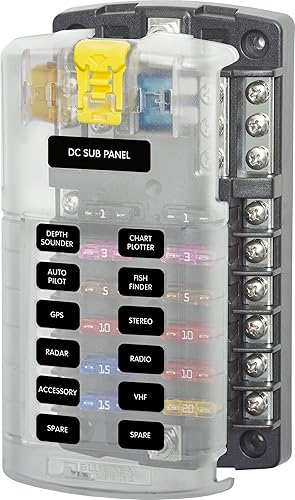

Blue Sea Systems 5026 ST Blade Fuse Block 12 Circuit with Cover

In this review the Blue Sea Systems 5026 ST Blade Fuse Block is judged as a practical solution for boaters and vehicle owners who need neat, terminal-mounted fused circuits. The bottom line: this block makes it simple to add up to 12 protected circuits directly at a battery terminal while meeting marine ignition protection standards. Installation is straightforward and the included insulating cover and negative busbar keep wiring tidy and ABYC/USCG compliant, making it a go-to option for installers who want reliable, compact power distribution without fuss.

Key Features

• 12 Circuit Capacity: Provides multiple fused outputs so the user can add several accessories without needing separate fuse holders.
• Terminal Mount Design: Mounts on the battery terminal stud to deliver power at the source, reducing run length and voltage drop to accessories.
• Ignition Protected: Meets ISO 8846 and SAE J1171 so it is suitable for use in gasoline engine compartments.
• Included Cover and Busbar: ABYC/USCG compliant insulating cover and a 4-circuit negative busbar keep connections protected and organized.
• High Current Handling: Block-level rating supports up to 100A per block with 30A per circuit, handling typical accessory loads safely.
• Hardware and Labels Included: Comes with write-on labels and a set of nylon insulated ring terminals for neat, finished terminations.

Who It's For

The 5026 ST is aimed at marine and automotive DIY installers, electricians, and boat owners who need a compact, terminal-mounted fuse solution that is ignition protected and compliant with marine standards. It is especially useful when space is limited and circuit protection must be located at the battery to protect wiring runs.

Those who need surface- or panel-mounted fuse blocks, or who want remote digital monitoring of circuits, should look elsewhere; this unit is focused on simple, robust fused distribution at the battery rather than advanced instrumentation or panel integration.

Pros & Cons

Pros

• Provides up to 12 fused circuits in a compact package for neat power distribution at the battery.
• Ignition protection and ABYC/USCG compliant insulating cover make it suitable for marine engine compartments.
• Includes hardware, negative busbar and write-on labels which speed installation and organization.
• High block and per-circuit current ratings support common accessory loads without frequent fuse swaps.

Cons

• Mounting on the battery stud is ideal for many installs but may not suit systems that require panel-mounted fusing.
• Screw terminal torque and #8-32 screw terminals mean installers should follow specified torque to avoid wiring issues.

Specifications

Model	5026 ST Blade Fuse Block 12 Circuit
Max Amps per Block	100A
Max Amps per Circuit	30A
Max Voltage	32V DC
Mounting Hole	3/8' (M10) stud
Screw Terminal Type	#8-32 screws
Screw Terminal Torque	18 in-lb

Our Verdict

The Blue Sea Systems 5026 ST Blade Fuse Block is a solid choice for anyone needing centralized, terminal-mounted circuit protection that is ignition protected and marine compliant. It delivers organized fused outputs, includes helpful installation hardware, and is good value for those prioritizing safety and neat wiring at the battery rather than panel features.

Frequently Asked Questions

Can this fuse block be used in an engine compartment?
Yes. It is ignition protected and meets ISO 8846 and SAE J1171 requirements for gasoline engine compartments.

How many circuits and what current limits does it support?
The block supports up to 12 fused circuits with a block rating of 100A and up to 30A per circuit.

What mounting hardware and accessories are included?
The unit includes an insulating cover, a 4-circuit negative busbar, write-on labels, and a set of nylon insulated ring terminals for installation.
