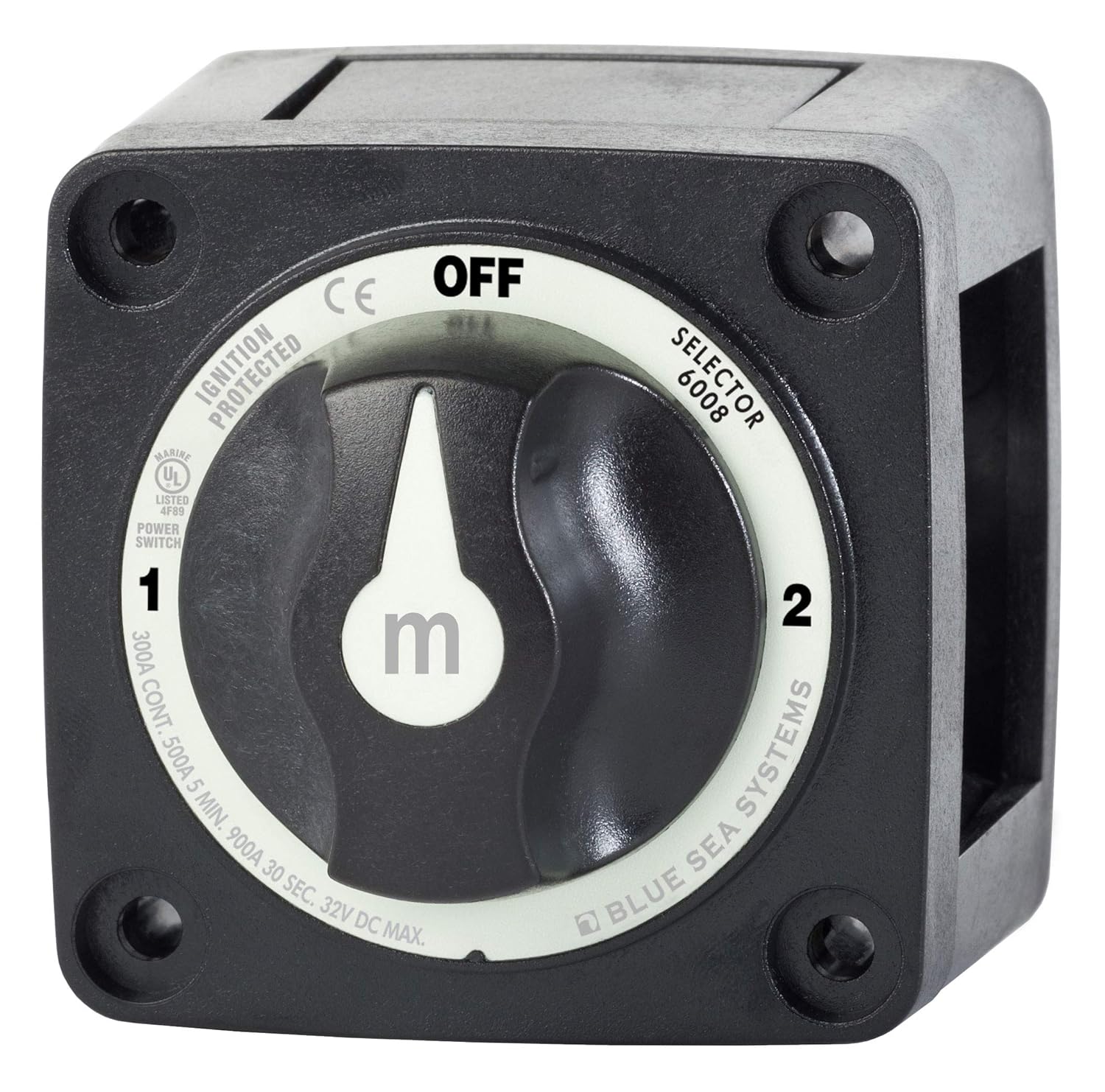

Blue Sea Systems m-Series 3 Position Battery Switch - Reliable Marine

Our review of the Blue Sea Systems m-Series 3 Position Battery Switch finds it a straightforward, heavy-duty choice for small craft owners who need reliable battery selection without fuss. This selector is designed to switch a single battery to a single load group with a make-before-break contact design, so changing banks does not interrupt power. The robust IP66 waterproofing and ignition protection make it well suited to boating environments where durability and safety around gasoline engines are important.

Key Features

• 3 Position Selector: Provides clear battery, off and both positions so users can route power simply and safely.
• Make-before-break contact: Allows switching between battery banks without power interruption to sensitive electronics and instruments.
• IP66 Waterproof: Keeps the switch protected from heavy spray and dust, improving long-term reliability on deck or in wet bilges.
• Ignition protected: Safe for installation aboard gasoline powered boats and meets common marine safety expectations.
• High current capacity: Continuous 300A rating handles engine cranking and high-draw accessories on 12V and 24V systems up to 32V DC.
• Standards compliant: Meets ISO 8846 and ABYC requirements, giving peace of mind for regulatory and safety-conscious installs.

Who It's For

The m-Series 3 Position Battery Switch is ideal for recreational boaters and small commercial vessel operators who need a simple, rugged way to select a single battery to a single load group. It suits owners replacing worn switches or building a straightforward electrical panel where space and clarity matter.

Those who need multi-battery combining features, integrated charging control, or remote switching should look elsewhere; this unit is a manual selector optimized for direct, local operation rather than remote or automated battery management.

Pros & Cons

Pros

• Solid construction and IP66 waterproofing contribute to long-term durability in marine conditions.
• Make-before-break switching prevents brief power interruptions when changing banks, protecting electronics.
• High continuous 300A rating supports heavy loads like starters and inverters within the 32V DC limit.
• Ignition protection and standards compliance reduce installation risk aboard gasoline-powered boats.

Cons

• Manual operation means no remote control or automated switching for more complex systems.
• Designed for a single battery to a single load group, so it is not a multi-bank management solution.

Specifications

Part Number	6008200
Model Series	m-Series
Switch Type	Selector 3 Position
Continuous Rating	300A
Maximum Voltage	32V DC
Ingress Protection	IP66 waterproof
Standards	ISO 8846, meets ABYC

Our Verdict

The Blue Sea Systems m-Series 3 Position Battery Switch is a reliable, well-built manual selector that delivers essential functionality for most small boat electrical systems. It offers excellent durability, safety features, and a high current rating that make it good value for anyone wanting a simple, local battery selector without remote or automated features.

Frequently Asked Questions

Is this switch safe for gasoline engine boats?
Yes. The unit is ignition protected and meets ISO 8846, making it suitable for installation aboard gasoline powered boats.

Will switching banks interrupt power to electronics?
No. The make-before-break contact design allows switching between battery banks without interrupting power.

What maximum voltage and current does it support?
The switch has a continuous rating of 300A and is rated for up to 32V DC.
