Blue Sea Systems MRBF 3-Circuit Fuse Block - Compact Power

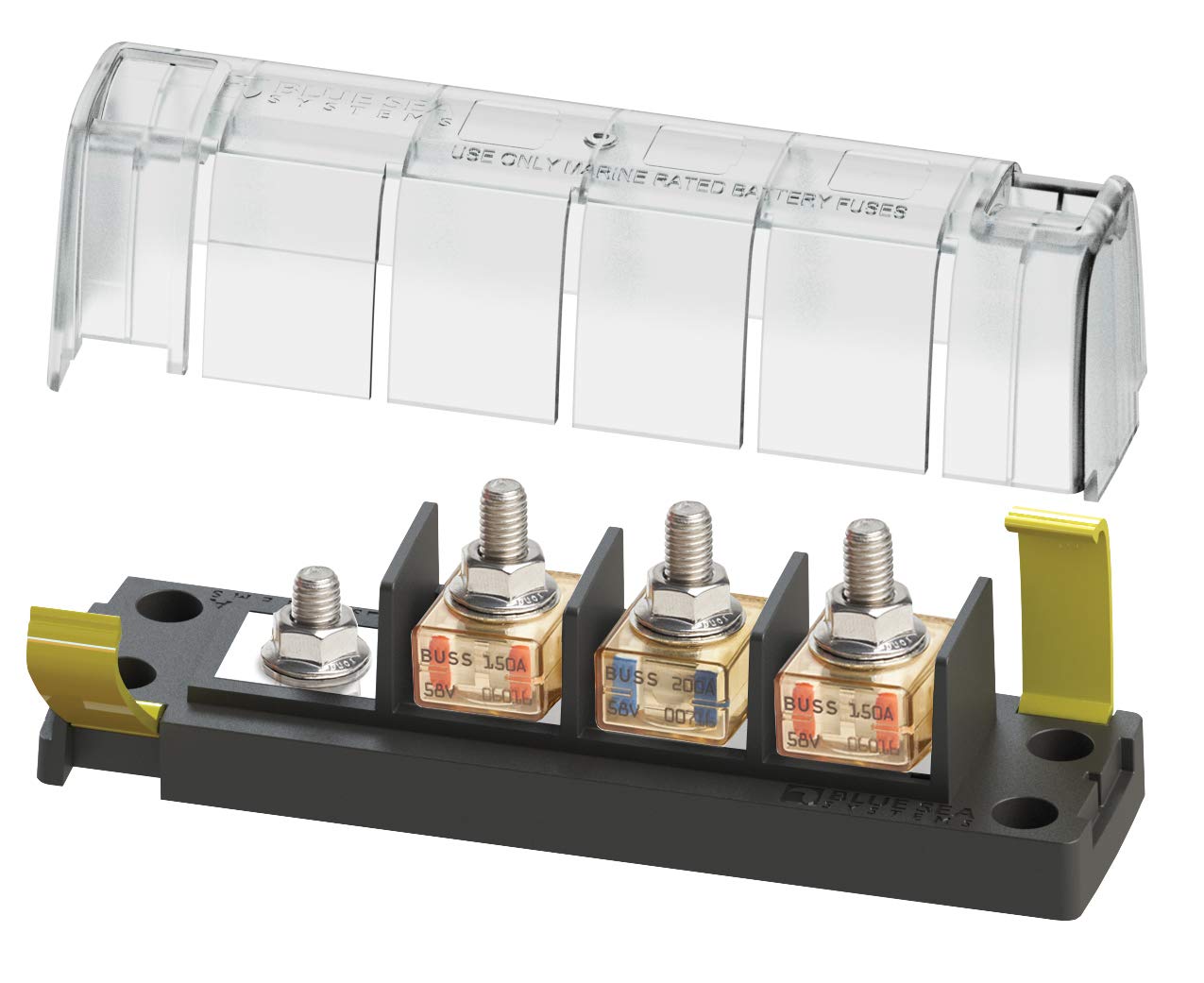

In this review of the Blue Sea Systems 5196 MRBF 3-Circuit Fuse Block, the bottom line is simple: this is a compact, high-current terminal block for anyone who needs to split a single heavy source into three protected loads. Installers and hobbyists working on marine craft, solar battery banks, or other 12V-48V systems will appreciate that it consolidates protection while meeting common insulation and ignition requirements. The reviewer found it to be solidly built, easy to wire, and a neat solution when space and reliable high-amperage distribution matter.

Key Features

• Three MRBF fuse positions: allows a single source to feed three separate circuits with individual MRBF fuses for tidy, consolidated protection.
• High amperage capacity: rated up to 300A per block and 240A per circuit, which covers heavy battery strings and higher-current marine loads.
• Clip-on insulating cover: satisfies ABYC and USCG insulation requirements and keeps terminals safe from accidental contact.
• Versatile wiring options: the block accepts wiring exiting a single side, simplifying routing in tight installations and keeping harnesses organized.
• Label recesses: built-in recesses accept Blue Sea square format labels so each circuit can be identified quickly during service.
• Stainless flange nuts and ignition protection: one-piece stainless flange nuts ensure secure connections and the part is ignition protected when used with the recommended MRBF terminal fuse.

Who It's For

This fuse block is aimed at marine owners, solar and battery system installers, and DIYers who need a compact, high-current distribution point that supports three fused outputs from a single source. It works especially well where ABYC/USCG style insulation and ignition protection are required, such as personal craft and boats.

It is less suitable for systems that require many more circuits or multi-row distribution - if you need a dozen fused outputs or integrated breakers and monitoring, choose a larger multi-circuit panel instead of this three-circuit block.

Pros & Cons

Pros

• Solid build quality and compact footprint make it easy to install in tight spaces.
• High amperage ratings and MRBF compatibility deliver reliable power distribution for battery banks and heavy loads.
• Clip-on insulating cover and label recesses improve safety and serviceability.
• Stainless flange nuts and flexible wiring options reduce corrosion and simplify routing.

Cons

• Fuses are sold separately, so you must purchase MRBF terminal fuses to complete the installation.
• Limited to three circuits; larger installations will need additional blocks or a different panel.

Specifications

Voltage Max Operating	58V DC
Amps Max Operating	300A per block / 240A per circuit
Terminal Fuses Available	30A - 300A MRBF
Terminal Stud Size	5/16'-18 (8mm)
Mounting Hole Size	#10 (5mm)
Mounting Style	Surface mount
Fit Type	Universal fit, compatible with marine personal craft

Our Verdict

The Blue Sea Systems 5196 MRBF 3-Circuit Fuse Block is a compact, well-built option for anyone needing to split a heavy DC source into three protected circuits. It delivers good value for marine and battery-based systems because of its high amperage capacity, safety cover, and tidy wiring options; just budget for MRBF fuses sold separately.

Frequently Asked Questions

Are the fuses included?
No. MRBF terminal fuses are sold separately so you can select the correct amperage for each circuit.

Is this ignition protected?
Yes, when used with Blue Sea Systems MRBF terminal fuses the block meets ignition protection requirements.

Can all wires exit one side?
Yes, the block supports versatile wiring with the option to route all conductors from a single side for neater installations.
