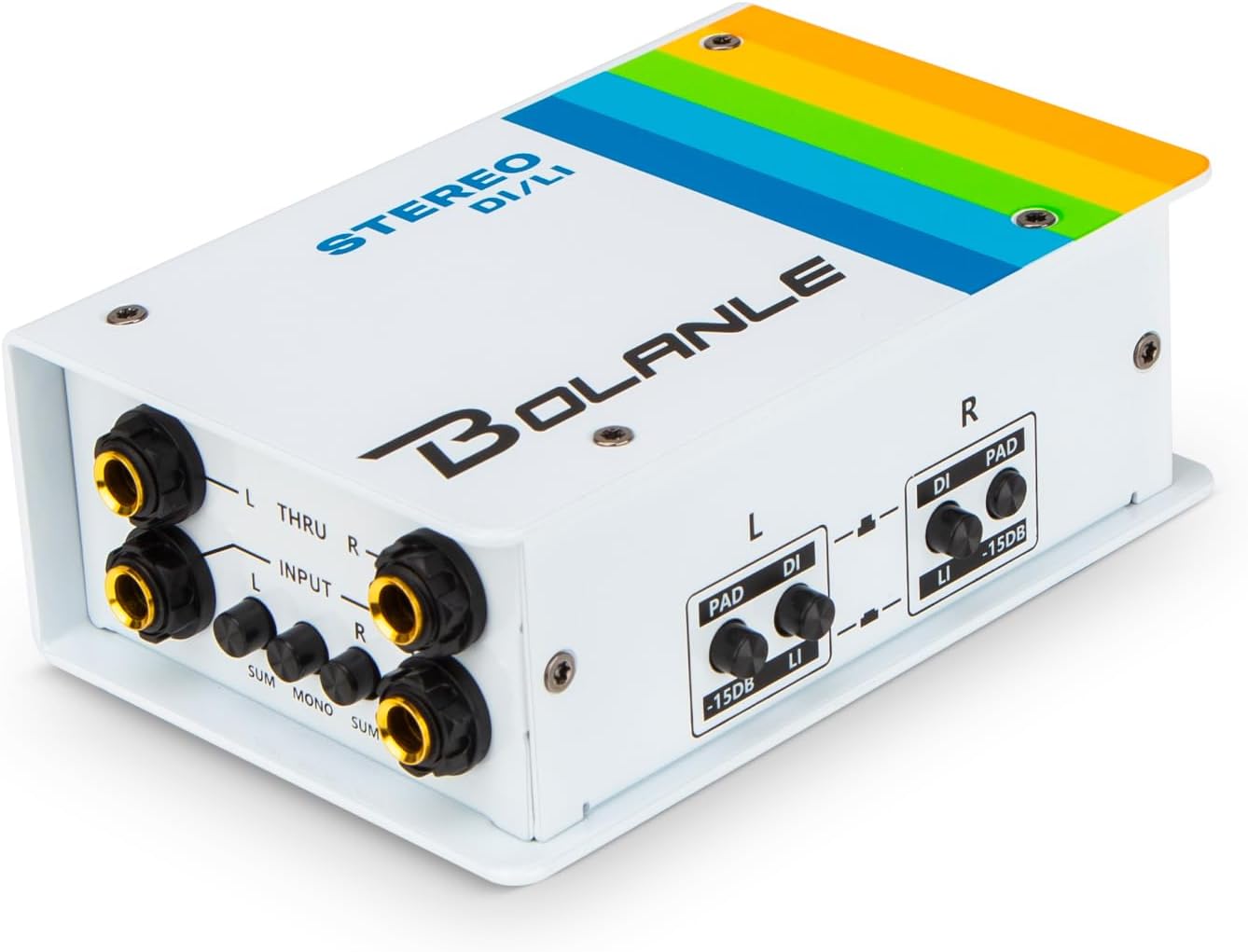

Bolanle Passive Dual Channel Direct Box and Line Isolator - Clean

In this review the Bolanle Passive Dual Channel Direct Box and Line Isolator is examined for musicians and engineers who need reliable isolation and flexible routing on stage or in the studio. The bottom line: it is a straightforward, passive DI/LI solution that solves ground loop hum, converts unbalanced 1/4' signals to balanced XLR, and offers a useful DI pad and summing function. Its biggest reason to buy is the combination of dual-mode operation and passive transformer isolation that preserves tone while preventing noise in live and recording signal chains.

Key Features

• Dual-Mode Operation: Switch between DI mode for high-impedance instruments with selectable -20dB/-35dB attenuation and LI mode for low-impedance sources to keep full signal level when needed.
• Passive Stereo Isolation: Dual-channel passive transformers provide ground loop isolation and reduce hum while converting unbalanced 1/4' inputs to balanced XLR outputs for cleaner mixes.
• Integrated PAD: A -15dB PAD in DI mode protects downstream inputs from overload and keeps active instrument signals from distorting.
• Flexible Routing: INPUT, THRU, and SUM/MONO functions let you create parallel amp feeds or combine stereo signals to mono for a single amplifier or console channel.
• GND Lift Option: Ground lift reduces hum from ground loops without altering the instrument signal path, improving quiet performance on stage or in studio racks.

Who It's For

The Bolanle DI/LI is ideal for gigging guitarists, bassists, keyboard players, and DJs who need to send clean balanced signals to a mixer while keeping a parallel amp feed. It suits small studios that want a passive, maintenance-free isolation box to link pedals, audio interfaces, and stage boxes to consoles.

Those who should look elsewhere include users who require active buffering, onboard EQ, or microphone preamp features, since this is a passive device focused on isolation, attenuation, and routing rather than tone shaping or gain boosting.

Pros & Cons

Pros

• Effective passive transformer isolation that reduces hum and provides true balanced XLR outputs for cleaner signals.
• Useful DI PAD and selectable attenuation options prevent input overload from active instruments and preserve tone.
• Flexible INPUT/THRU/SUM routing supports parallel amp feeds and easy stereo-to-mono summing for stage setups.
• Works for both instrument-level and line-level sources thanks to DI and LI modes for versatile connectivity.

Cons

• Passive design means no active gain or buffering, so users needing active tone shaping must add other gear.
• Controls are straightforward but minimal, so advanced routing or metering is not included.

Specifications

Model	Bolanle Passive Dual Channel DI/LI
Operation	DI mode (instrument) and LI mode (line) selectable
Attenuation	DI: -20dB / -35dB options, PAD: -15dB
Channels	Dual channel (stereo) with SUM/MONO option
Outputs	Balanced XLR outs; THRU for parallel amp feeds
Isolation	Passive transformers with GND Lift for hum reduction

Our Verdict

The Bolanle Passive Dual Channel Direct Box and Line Isolator is a practical, no-nonsense solution for players and engineers who need reliable isolation and flexible routing without adding active circuitry. It delivers solid noise reduction, useful PAD and attenuation choices, and simple summing for mono needs, representing good value for anyone seeking cleaner balanced outputs from guitars, bass, keyboards, or line devices.

Frequently Asked Questions

Can this box handle both instrument and line outputs?
Yes; use DI mode for high-impedance instruments with attenuation and LI mode for low-impedance line sources to maintain full level.

Will it eliminate hum from ground loops?
The passive transformers and GND Lift are designed to isolate ground loops and significantly reduce hum between devices.

Can stereo signals be combined to feed one amp?
Yes; the SUM/MONO function lets you combine stereo inputs into a single mono output for one amplifier or a single channel on a mixer.
