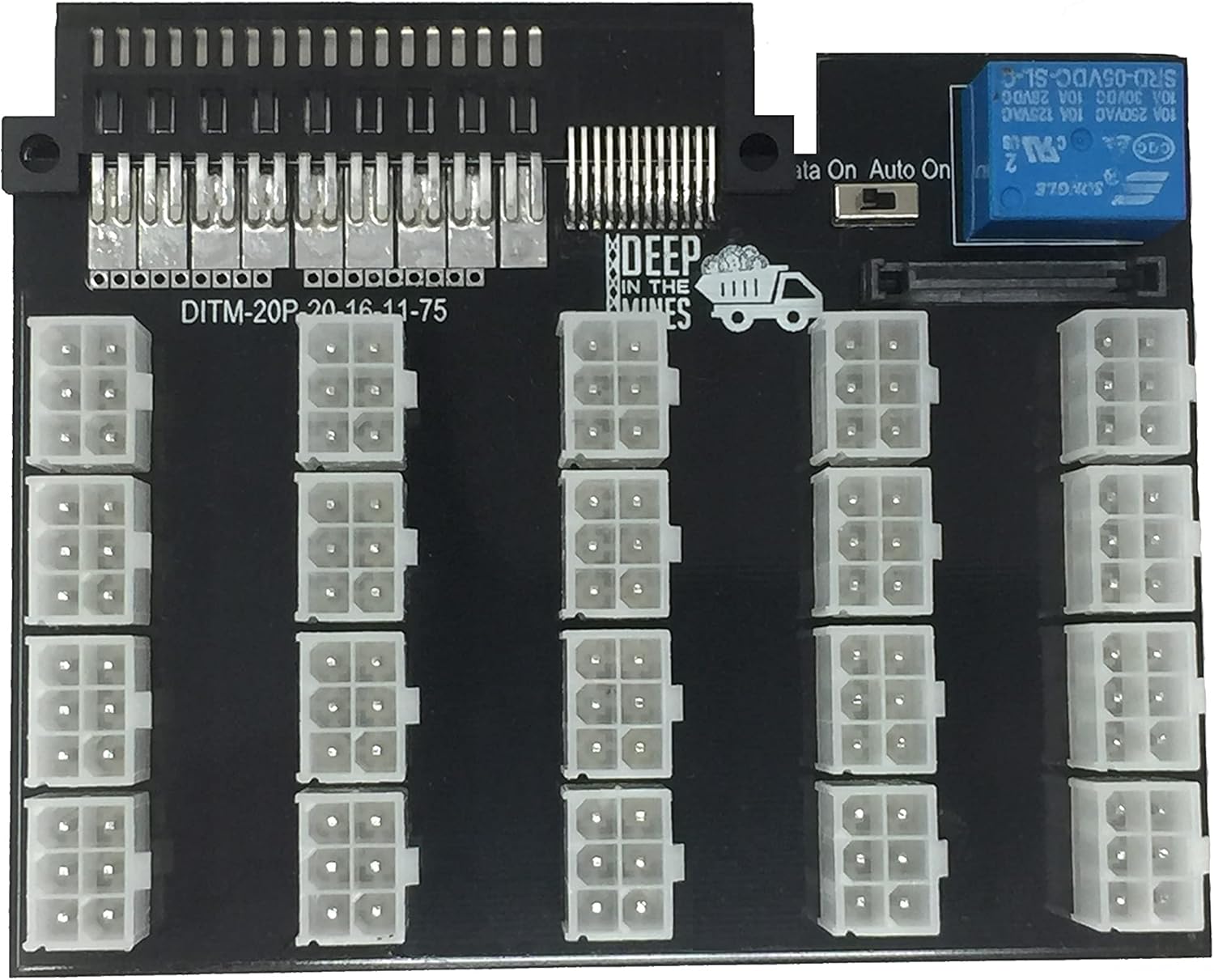

Breakout Board for 750w-2400w PSUs - 20 PCI Inputs for Mining Rigs

In this review the Breakout Board is examined as a specialist accessory for cryptocurrency miners and custom power setups that need a reliable way to distribute many PCI power connections. The bottom line: this board is for users who run Deep In The Mines 750w through 2400w power supplies and need a single, organized hub for up to 20 PCI cable inputs. It earns a recommendation when paired with genuine 16 AWG PCI cables and the exact PSU models listed, because its design focuses on safe high-current distribution and two convenient power modes for continuous or computer-synced operation.

Key Features

• 20 PCI inputs: Provides a central hub for up to twenty PCI power cables so large mining rigs or multi-GPU workstations stay organized and powered from one supply.
• Compatible PSU models: Works with specific Deep In The Mines 750w, 1100w, 1600w, 2000w and 2400w models so buyers can match the board to their exact supply for proper fit and function.
• Auto on mode: Automatically restarts the connected power supply after a power outage, which reduces downtime for remote rigs and recovers hashing quickly.
• Sata on mode: Lets the breakout board power on and off in sync with an ATX desktop power supply, useful for control via a host computer or automated startup sequences.
• 16 AWG cable requirement: Designed for true 16 AWG PCI cables to safely handle current; this reduces overheating risk when powering many GPUs concurrently.

Who It's For

This breakout board is aimed at experienced miners, rig builders, and system integrators who already own or plan to buy one of the listed Deep In The Mines power supplies and need to route many PCI connections neatly and safely. It is also useful for labs or test benches that accept high-power PSUs and require quick restoration after outages.

It is not intended for casual PC builders or for use with unidentified or underspecified PCI cables; anyone unwilling to use verified 16 AWG PCI cables or who needs wide cross-brand compatibility should look for a more generic breakout solution instead.

Pros & Cons

Pros

• Supports up to 20 PCI cables for dense GPU or peripheral deployments and keeps cabling centralized.
• Auto on mode minimizes downtime by restarting the PSU after power loss, which is valuable for remote rigs.
• Sata on mode allows synchronized control with an ATX supply for coordinated system power sequences.

Cons

• Requires real 16 AWG PCI cables; many marketed cables are thinner, so extra care and verified cables are necessary.

Specifications

Product Type	Breakout board for multi-PCI power distribution
PCI Inputs	20
Compatible Power Ratings	750w, 1100w, 1600w, 2000w, 2400w
Compatible Models	06W2PW, 0GDPF3, 0NTCWP, 09TMRF, 095HR5, 0960VR, 0J1CC3, 0CXC2T
Cable Requirement	Use real 16 AWG PCI cables only
Power Modes	Auto on and Sata on

Our Verdict

The breakout board is a practical, cost-effective choice for miners and system builders who own compatible Deep In The Mines power supplies and commit to using verified 16 AWG PCI cables. Its 20-port capacity and Auto on mode make it especially useful for remote or high-density deployments. Buyers should confirm model compatibility and cable gauge before purchasing to get safe, reliable performance.

Frequently Asked Questions

Can I use any PCI cable with this board?
Only use genuine 16 AWG PCI cables; thinner or mislabeled cables increase risk of overheating and are not recommended.

Will the board work with my power supply?
It works only with the listed Deep In The Mines models in the description; match your PSU model to that list before buying.

What does Auto on and Sata on do?
Auto on restarts the PSU after a power loss, while Sata on syncs power on/off with an ATX desktop power supply for controlled sequences.
