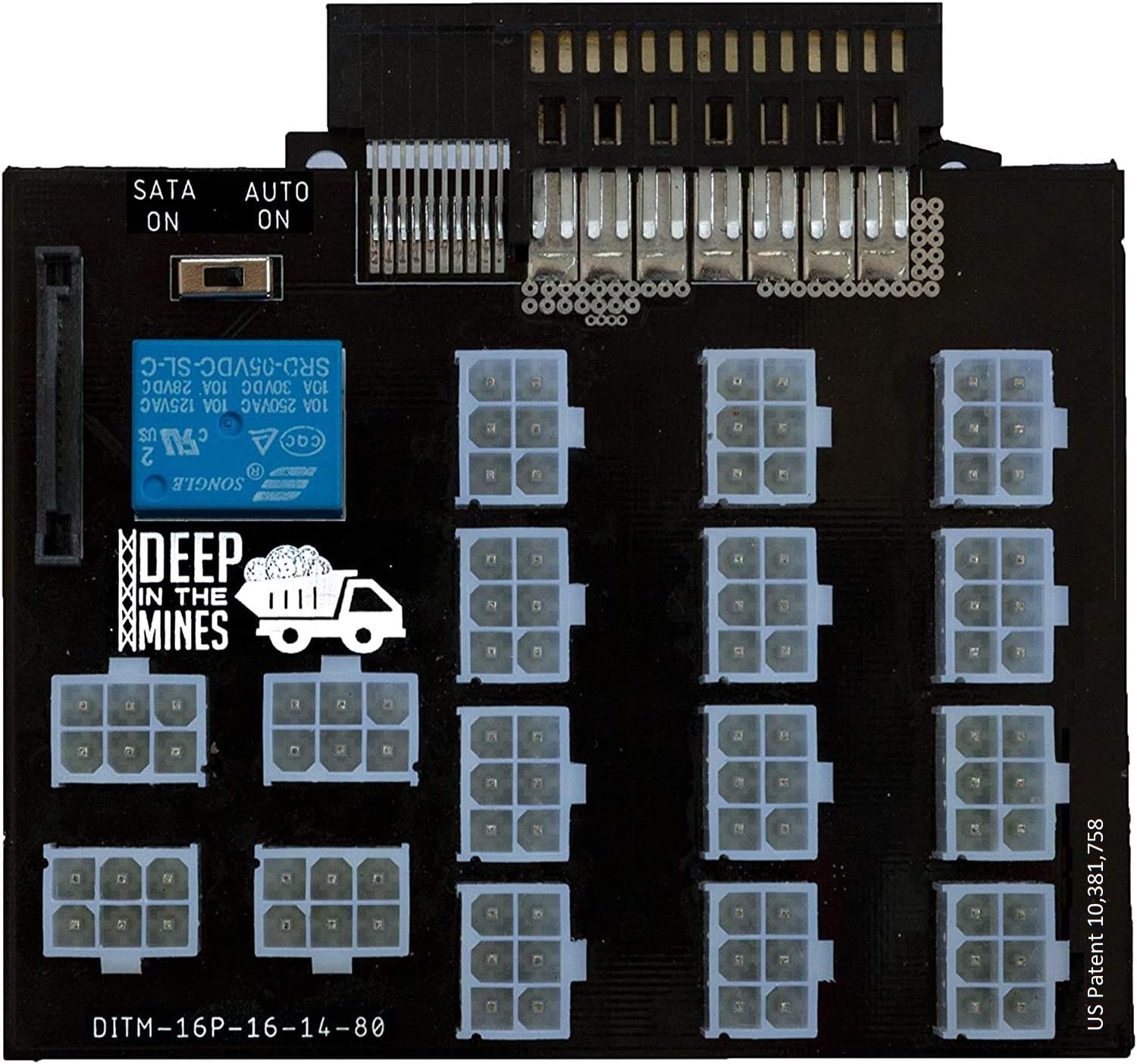

Breakout Board for 800w 1400w 1600w Power Supplies - GPU Mining Ready

In this review the Breakout Board for 800w 1400w 1600w power supplies is evaluated for GPU mining rigs and power distribution setups. The bottom line: it is designed for miners and system builders who need a single board to split a flex slot supply into up to 16 PCI power outputs, and its main advantage is straightforward compatibility with multiple server flex slot models while offering an "auto on" option for unattended use. This review focuses on real-world compatibility, cable requirements, and the two power-on modes to help decide if it fits a specific mining or test bench workflow.

Key Features

• 16 PCI cable inputs: Provides sixteen separate PCI power outputs so a single flex slot supply can feed many GPUs or devices without individual adapters for each output.
• Model compatibility: Works with a range of flex slot server power supply models for 800w, 1400w, and 1600w units, reducing guesswork when matching a breakout to an existing supply.
• Auto on mode: The auto on setting will automatically restart the attached power supply after a power outage, which is useful for remote mining operations that need minimal intervention.
• Sata on mode: The sata on setting allows the breakout to power on and off in sync with an ATX desktop style supply, useful for combined test bench or mixed desktop/server environments.
• 16 AWG cable requirement: Requires true 16 AWG PCI cables to safely deliver current; this prevents overheating and ensures stable operation when multiple GPUs draw power.

Who It's For

This breakout board is aimed at GPU miners, lab technicians, and system builders who repurpose server flex slot supplies to feed multiple graphics cards or add-in devices. It is particularly useful for those running multiple GPUs from a single high-wattage flex slot supply and who value a compact, consolidated power distribution solution.

Those who should look elsewhere include casual users unfamiliar with cable gauge safety or anyone who cannot source true 16 AWG PCI cables, since thinner cables can cause voltage drop or overheating. Also, the product is only the breakout board; buyers who want a complete supply must purchase the compatible flex slot power supply separately.

Pros & Cons

Pros

• Supports up to 16 PCI power outputs, simplifying wiring for dense GPU setups.
• Compatible with multiple common 800w, 1400w, and 1600w flex slot models, easing selection.
• Auto on mode provides automatic recovery after power interruptions, improving uptime for mining rigs.
• Sata on mode offers desktop sync for combined ATX test bench workflows.

Cons

• Requires real 16 AWG PCI cables; many advertised cables are thinner and not safe, which adds purchasing complexity.
• Power supplies shown in images are not included, so total system cost is higher than the board alone.

Specifications

Board outputs	16 PCI cable inputs
Compatible wattages	800w, 1400w, 1600w (also compatible with some 1800w-2200w models)
Required cable gauge	Real 16 AWG PCI cables only
Power-on modes	Auto on and Sata on
Included items	Breakout board only; power supplies not included
Compatible supply types	Flex slot server power supplies (110v and 220v models)

Our Verdict

The breakout board is a practical and economical choice for miners and builders who want to harness a single flex slot power supply for multiple GPUs. It provides clear advantages in output count and flexible power-on options, and it is best value when paired with proper 16 AWG PCI cables and a confirmed compatible flex slot supply. Those prepared to source the right cables and supply will find it a durable, functional distribution solution.

Frequently Asked Questions

Does the board include a power supply?
The listing includes only the breakout board; compatible flex slot power supplies must be purchased separately.

What cable gauge is required?
Use true 16 AWG PCI cables; thinner cables that claim 16 AWG but are actually 18 AWG are not safe for heavy GPU loads.

Can it auto restart after a power outage?
Yes, the board supports an auto on mode that will restart the attached compatible power supply after an outage.
