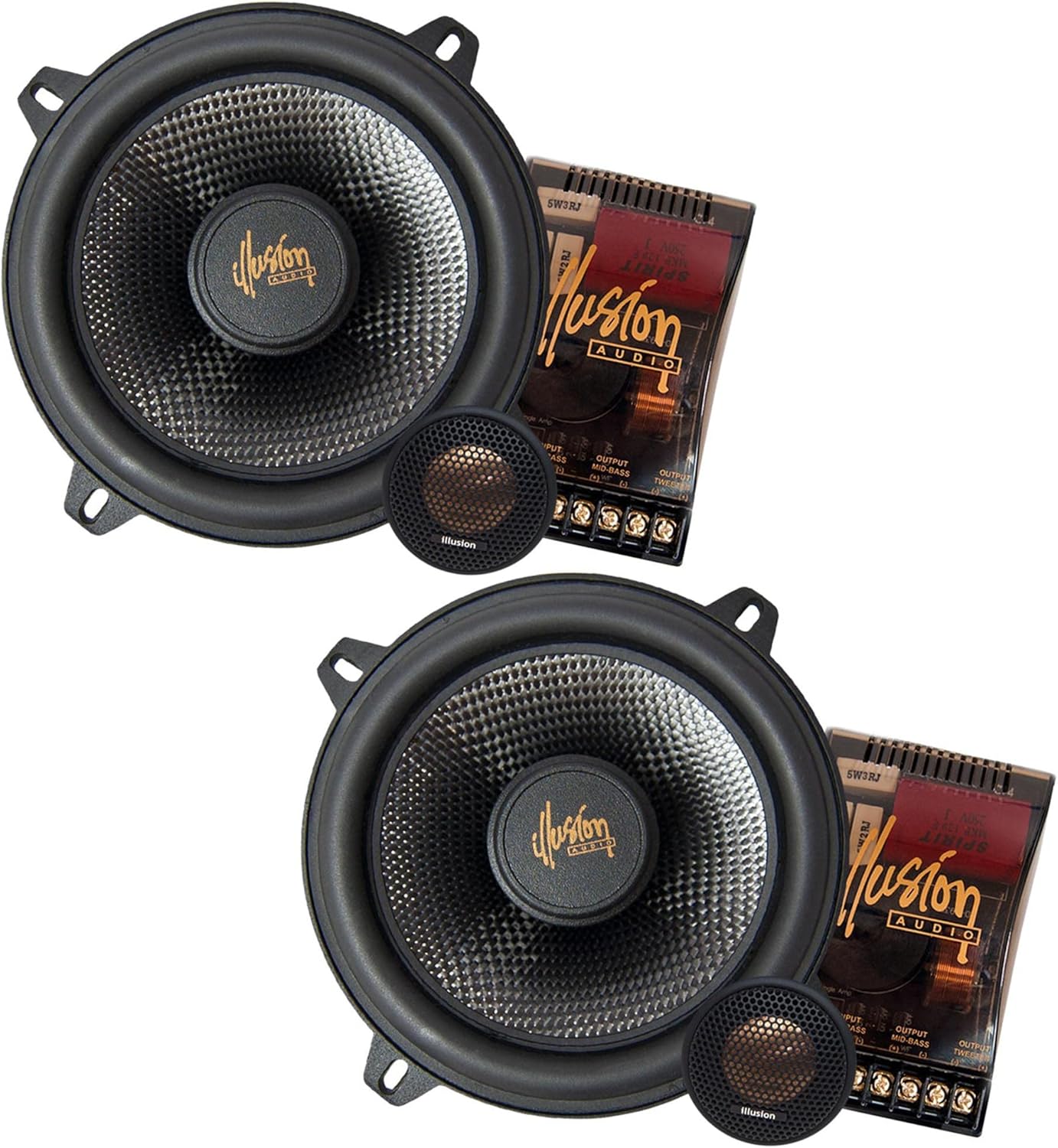

C5 5.25ft Carbon Series 2-Way Component Speaker Kit - Detailed

Our review of the C5 5.25' Carbon Series 2-Way Component Speaker Kit finds it best suited for listeners seeking audiophile clarity in a compact car setup; the single biggest reason to buy is the combination of high sensitivity and a rigid tweeter that delivers crisp detail and a wide sound stage at road levels. The Carbon line is presented as Illusion Audio's premier offering, and in everyday use these speakers reveal texture and pace in music that smaller, cheaper car speakers often miss, while remaining durable for long-term use.

Key Features

• Free Air Resonance 83.3 Hz: Provides controlled midbass response so percussion and rhythms remain articulate and punchy in most factory mounting locations.
• Nominal Impedance 4 Ohms: Ensures compatibility with a wide range of aftermarket head units and amplifiers for reliable power transfer.
• Sensitivity 2.83 V @ 1 meter 87.3 dB: Delivers efficient output so the speakers reach useful loudness without requiring a large amplifier.
• Bi Amp 12 dB crossover: Allows separation of midbass and tweeter for clearer imaging and easier integration into multi-amp installs.
• 25 mm Beryllium Copper Tweeter: Offers low distortion and extended high-frequency detail that expands the perceived sound stage.

Who It's For

The C5 Carbon Series kit targets car audio enthusiasts who want near-audiophile clarity from compact 5.25' component speakers and who value low distortion and a wide stage. It suits those upgrading factory systems who will appreciate the tweeter detail and the kit's efficient sensitivity without immediately needing a big external amp.

Drivers looking for deep, room-rattling sub bass or those requiring ultra-low mounting depths for very tight factory locations should look elsewhere; the midbass emphasis and 43.4 mm mount depth are optimized for musicality and clarity rather than extreme low-end extension.

Pros & Cons

Pros

• Detailed, revealing high end from the 25 mm beryllium copper tweeter for improved vocal and instrumental clarity.
• Good sensitivity (87.3 dB) means respectable loudness from modest head units or compact amplifiers.
• Bi amp capable 12 dB crossover improves separation between drivers and simplifies tuning in custom installs.
• Durable Carbon Series construction promises long-term reliability and consistent performance.

Cons

• Free air resonance near 83.3 Hz indicates the design emphasizes midbass, so those wanting deep sub-bass will still need a separate subwoofer.
• Mount depth of 43.4 mm may not fit all tight factory mounting locations without adapter hardware.

Specifications

Product	C5 5.25' Carbon Series 2-Way Component Kit (pair)
Free Air Resonance	83.3 Hz
Nominal Impedance	4 Ohms
Sensitivity	87.3 dB (2.83 V @ 1 meter)
Tweeter	25 mm Beryllium Copper
Mount Depth	43.4 mm
Outside Diameter	129 mm basket + 149.2 mm ears

Our Verdict

The C5 Carbon Series component kit is a compelling upgrade for drivers who prioritize clarity, imaging and musical detail in a compact speaker package. With a high-quality tweeter, sensible sensitivity and a bi amp crossover, it offers excellent value for listeners who want concert-like presence in-car while accepting that very deep bass will still require a subwoofer.

Frequently Asked Questions

Will these speakers work with a factory head unit?
Yes; with a nominal 4 Ohm load and 87.3 dB sensitivity they will produce good volume with many factory head units, though external amplification improves headroom.

Do I need a subwoofer with this kit?
For deep, low-frequency extension you will still want a dedicated subwoofer, as the C5 emphasizes articulate midbass rather than extreme sub-bass.

Are these easy to install in most cars?
They fit many common 5.25' openings, but the 43.4 mm mount depth and 120 mm mounting hole diameter should be checked against your vehicle before purchase.
