Cabinet Installation Tool Complete Set - Adjustable Handle & Hinge Jig

Our review of this Cabinet Installation Tool Complete Set finds it best suited for homeowners and hobbyist woodworkers who want consistent, professional-looking cabinet hardware installs without outsourcing to a tradesperson. The single biggest reason to buy is the kit's combination of an adjustable handle template, a 35mm concealed hinge jig, and an automatic center punch that together remove guesswork and speed up layout and drilling for handles, knobs, and hinges.

Key Features

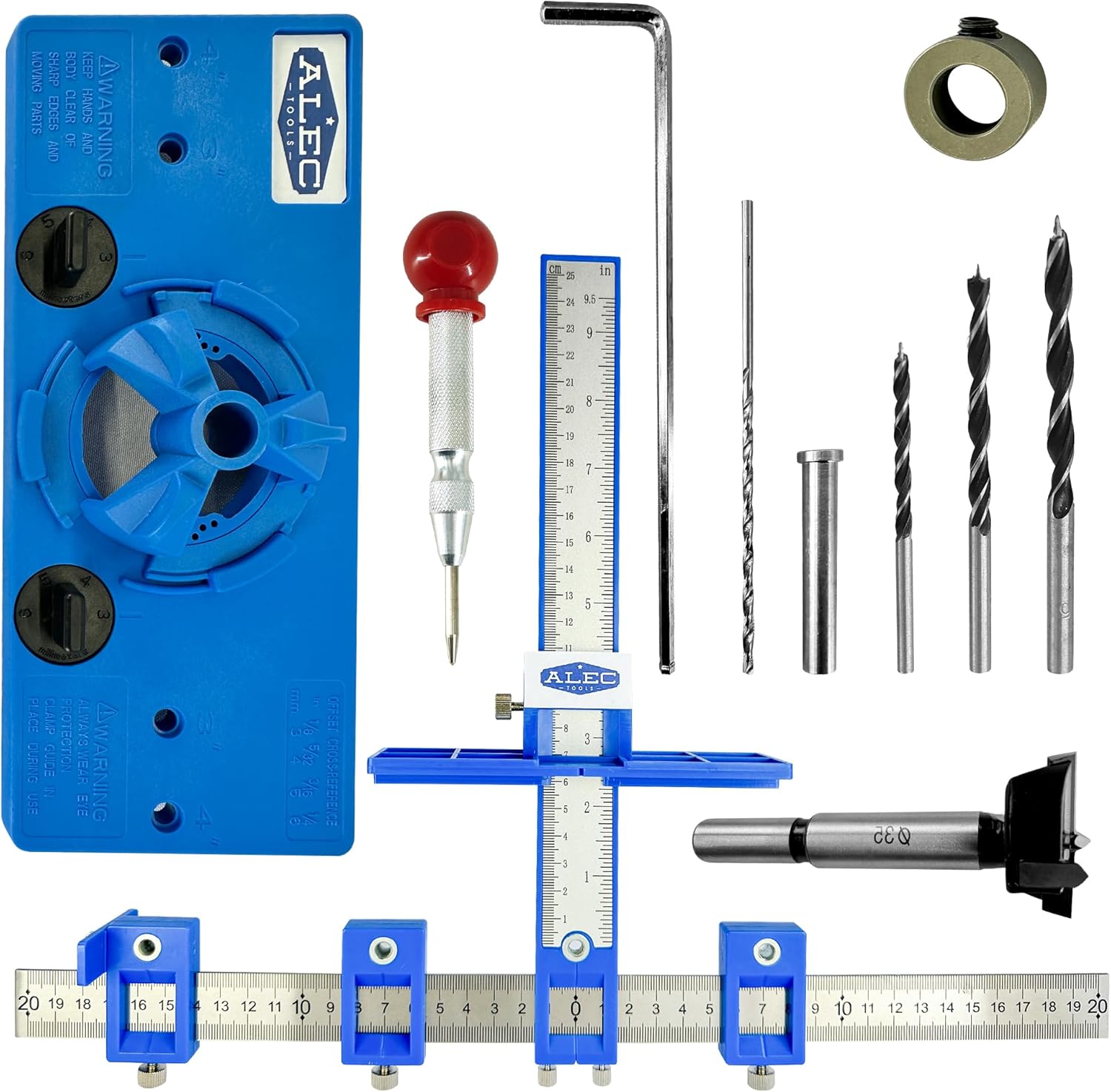

• Complete kit: Includes a cabinet handle template jig, 35mm concealed hinge jig, automatic center punch, four drill bits, and a storage bag so users have every tool needed for most cabinet hardware tasks.
• Durable construction: Built from non-corrosive stainless steel, aluminum, and high-grade ABS plastic, the set holds up under repeated use and resists wear in a shop environment.
• Adjustable template: The handle jig and hinge offset dials (3mm, 4mm, 5mm) plus metric and imperial scales let you set precise hole spacing for shaker doors, recessed fronts, and varied drawer faces.
• Precision drilling: The automatic center punch creates exact starter marks and the carbide-tipped and 3-point wood bits provide smooth, chip-free holes with a depth stop for consistent results.
• Organized storage: The included storage bag keeps the jigs, punch and bits together and protected between projects, reducing time spent hunting for parts.

Who It's For

This kit is aimed at DIY renovators, amateur carpenters and small shop professionals who install cabinet handles, knobs and concealed hinges and want repeatable, accurate results without specialized machinery. The presence of both metric and imperial scales plus hinge offset dials makes it versatile for common cabinetry styles.

Those who should look elsewhere include installers who already own professional bench mortisers or CNC equipment, or anyone requiring specialized hinge jigs for nonstandard hinge patterns not covered by a 35mm cup jig.

Pros & Cons

Pros

• Comprehensive kit removes the need to buy separate jigs and bits for standard cabinet tasks.
• Sturdy mix of stainless steel, aluminum and ABS gives a durable feel suitable for regular use.
• Automatic center punch and carbide-tipped bit reduce tear-out and produce cleaner holes.
• Helpful user manual and storage bag make setup and organization straightforward.

Cons

• The 35mm hinge jig is for common concealed hinges and may not accommodate rare or oversized hinge cups.
• Advanced shop users may find the kit redundant if they own specialized drilling fixtures.

Specifications

Our Verdict

This Cabinet Installation Tool Complete Set is a strong value for DIYers and small-shop installers who need a compact, accurate way to lay out and drill holes for handles and concealed hinges. Its durable materials, adjustable templates, and the addition of an automatic center punch and carbide-tipped bit deliver cleaner, repeatable installs that save time and reduce mistakes.

Frequently Asked Questions

Does the kit include a hinge jig for 35mm cup hinges?
Yes, a 35mm concealed hinge jig is included for standard concealed hinge cups.

Are both metric and imperial measurements provided?
The templates include metric and imperial scales and hinge offset dials for flexibility.

Will the bits prevent tear-out on cabinet doors?
The automatic center punch combined with 3-point wood bits and a carbide-tipped bit helps minimize tear-out for cleaner holes.
