CAN Bus DB9 Adapter 10Pack - 120 OHM Termination for Reliable CAN

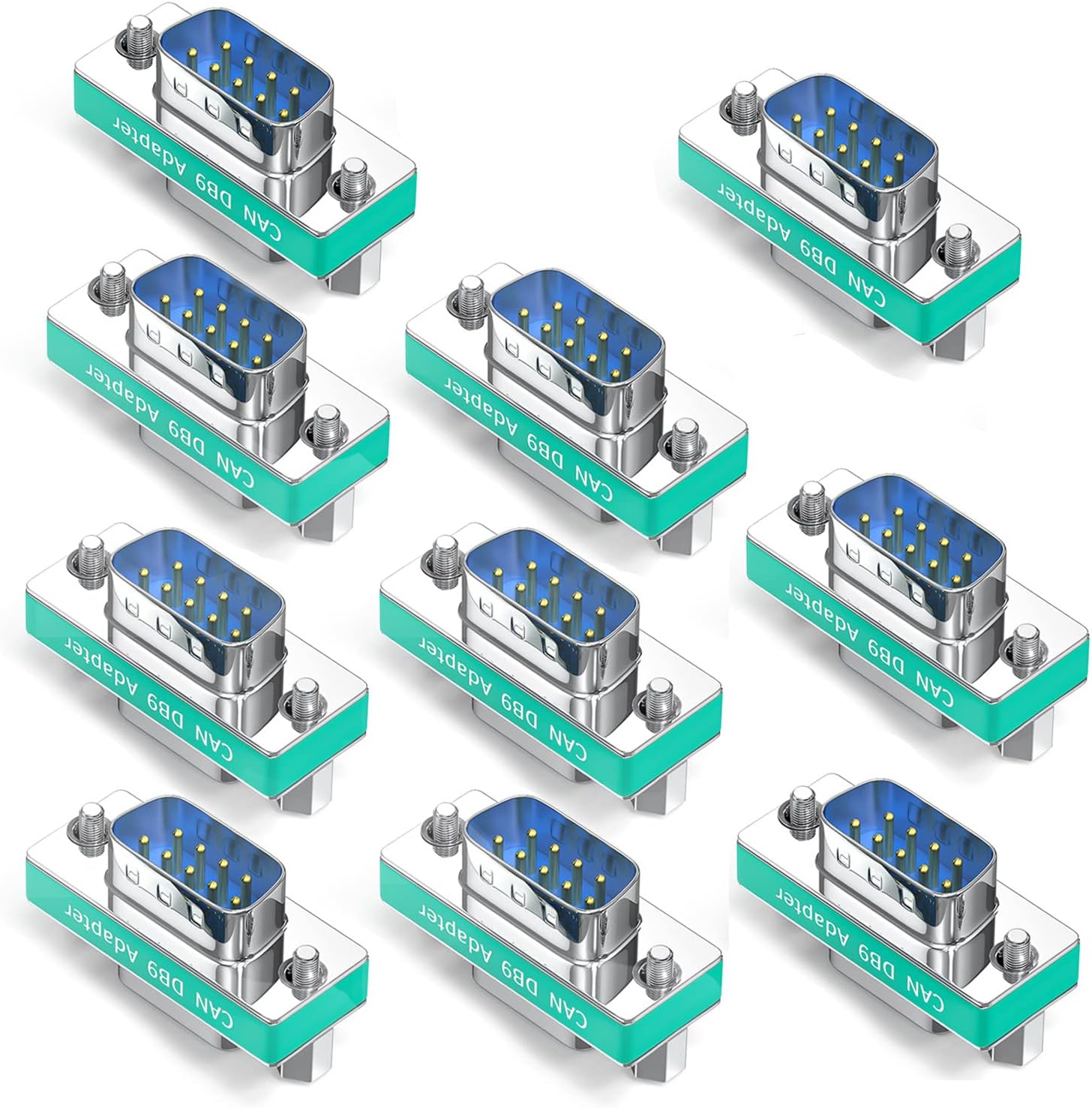

In this review the CAN Bus DB9 Adapter 10Pack is evaluated as a practical, no-nonsense solution for technicians and integrators who need proper termination for CAN networks. The pack contains ten D-SUB 9 pin male-to-female adapters with a built-in high-precision 120 ohm resistance between PIN2 and PIN7, which is the single most important feature for eliminating reflections and maintaining signal integrity on a CAN bus. For projects using common CAN interfaces and analyzers, this set provides quick, dependable termination without modifying cables.

Key Features

• Built-in 120 ohm termination: The adapter includes a high-precision 120 ohm resistor between PIN2 and PIN7 to correctly terminate the bus and reduce signal reflections.
• Standardized pin definition: PIN2 is defined as the low signal and PIN7 as the high signal to match typical CAN wiring conventions and ensure compatible connections.
• Echo interference reduction: The termination filters out bus terminal echo interference, helping preserve protocol integrity during communications.
• Wide compatibility: Works with popular CAN analyzers such as PCAN, GC-CAN-USB and Peak-CAN so it fits many common tools without extra wiring.
• Pack of ten, plug-and-play: Supplied as a 10Pack for multiple terminations or spares and installs without modifying existing cables.

Who It's For

This kit is aimed at electronics technicians, automotive engineers and field installers who need a compact, reliable way to add or replace CAN bus terminations on DB9 connections. It suits bench debugging, prototyping and vehicle diagnostics where DB9 CAN adapters are used.

Those who should look elsewhere include users who require adjustable or active termination solutions, or projects that use non-DB9 physical connectors for CAN bus where an inline or board-mounted terminator would be more appropriate.

Pros & Cons

Pros

• Built-in 120 ohm resistance with 1% accuracy provides accurate termination for stable communication.
• Standard PIN2 low / PIN7 high mapping ensures compatibility with typical CAN analyzers and tools.
• Pack of ten offers value for multi-point installations and spare coverage.

Cons

• Fixed 120 ohm value means it is not suitable for systems that require adjustable or active termination.
• No visual indicator or switch to enable/disable termination on the adapter itself.

Specifications

Our Verdict

The 10Pack CAN Bus DB9 Adapter is a straightforward, cost-effective way to add correct termination to CAN networks that use DB9 connectors. It is particularly useful for technicians and engineers who need reliable, plug-and-play termination across multiple devices, and the high-precision 120 ohm resistor offers peace of mind for signal integrity. For anyone needing adjustable termination features or non-DB9 form factors, a different solution may be better.

Frequently Asked Questions

Do these adapters need cable modification?
No, they are plug-and-play and install without modifying existing cables.

Which pins are terminated by the resistor?
The built-in 120 ohm resistor is placed between PIN2 (low) and PIN7 (high).

Will these work with popular CAN analyzers?
Yes, they are compatible with analyzers like PCAN, GC-CAN-USB and Peak-CAN.
