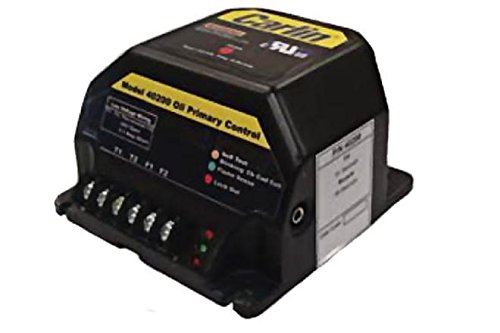

Carlin 42230 Oil Primary Control 4223002S - Reliable Ignition Control

Our review of the Carlin 42230 Oil Primary Control 4223002S finds it best suited for technicians and homeowners who need a dependable ignition controller for oil burners and generator applications. The single biggest reason to buy is its focus on safe, repeatable ignition cycles: interrupted duty ignition with a 30 second trial and 1.3 second flame failure response time gives confidence during startup and fault recovery. This unit also includes serviceman reset protection and diagnostic LED feedback that make troubleshooting and long-term reliability straightforward.

Key Features

• Interrupted Duty Ignition: Provides controlled ignition trials that reduce wear on the burner while ensuring consistent light-off.
• Recycle on Flame Failure: Automatically attempts restart after a flame failure to restore operation without immediate service intervention.
• Serviceman Reset Protection: Locks out after three consecutive lockouts to prevent repeated damage and requires a manual reset for safety.
• Diagnostic LED's: Status, lockout and flame LEDs simplify troubleshooting and speed up service checks.
• Valve Delay On / Motor Delay Off: Supports pre- and post-purge timing to protect the combustion chamber and control safe shutdowns.
• Improved SMC Technology: Zero bleed voltage during standby reduces energy loss and improves overall safety.

Who It's For

This control is aimed at HVAC technicians, maintenance teams and owners of waste oil or conventional oil burners who need a robust ignition control that tolerates generator use and frequency variability. Its design works well where precise flame sensing and automatic recycle are required, and where clear diagnostics speed repairs.

Those who should look elsewhere include installers who require compatibility with T87K or T87N thermostats, since this unit is not compatible with those models, and users who need a control with configurable timing on the fly without contacting the manufacturer for available timings.

Pros & Cons

Pros

• Reliable flame accuracy and a quick 1.3 sec flame failure response time improve safety and restart speed.
• Diagnostic LEDs and serviceman reset protection reduce time spent troubleshooting and help prevent repeated faults.
• Zero bleed standby voltage and oil pump bleed assist extend component life and cut idle energy use.
• Performs well with generators and is insensitive to frequency changes, good for variable power environments.

Cons

• Specific timing options for valve delay and motor delay require contacting Carlin rather than being user-adjustable.
• Not compatible with T87K or T87N thermostats, which limits use in some legacy installations.

Specifications

Product	Carlin 42230 Oil Primary Control 4223002S
Ignition Type	Interrupted duty ignition with 30 sec trial
Flame Failure Response	1.3 sec FFRT
Safety Features	Serviceman reset protection (latch-up after 3 lockouts)
Diagnostics	Status, lockout and flame LED indicators
Standby Behavior	Improved SMC technology, zero bleed voltage
Compatibility Notes	Not compatible with T87K or T87N thermostats

Our Verdict

The Carlin 42230 Oil Primary Control 4223002S is a practical, value-minded choice for professionals and do-it-yourselfers who need a safe and reliable ignition controller that tolerates generator operation. Its diagnostic LEDs, serviceman reset protection and improved SMC technology make it a solid pick for long-term serviceability and energy-conscious standby behavior.

Frequently Asked Questions

Can this unit restart automatically after a flame failure?
Yes, it supports recycle on flame failure and will attempt automatic restarts before locking out after repeated failures.

Is the control adjustable for different purge timings?
Valve delay on and motor delay off timings are available, but you should contact Carlin for the specific available timing options.

Will it work with generator-powered systems?
Yes, the design is tolerant of frequency changes and performs well with generators.
